Huawei iSitePower-M Quick Guide

31

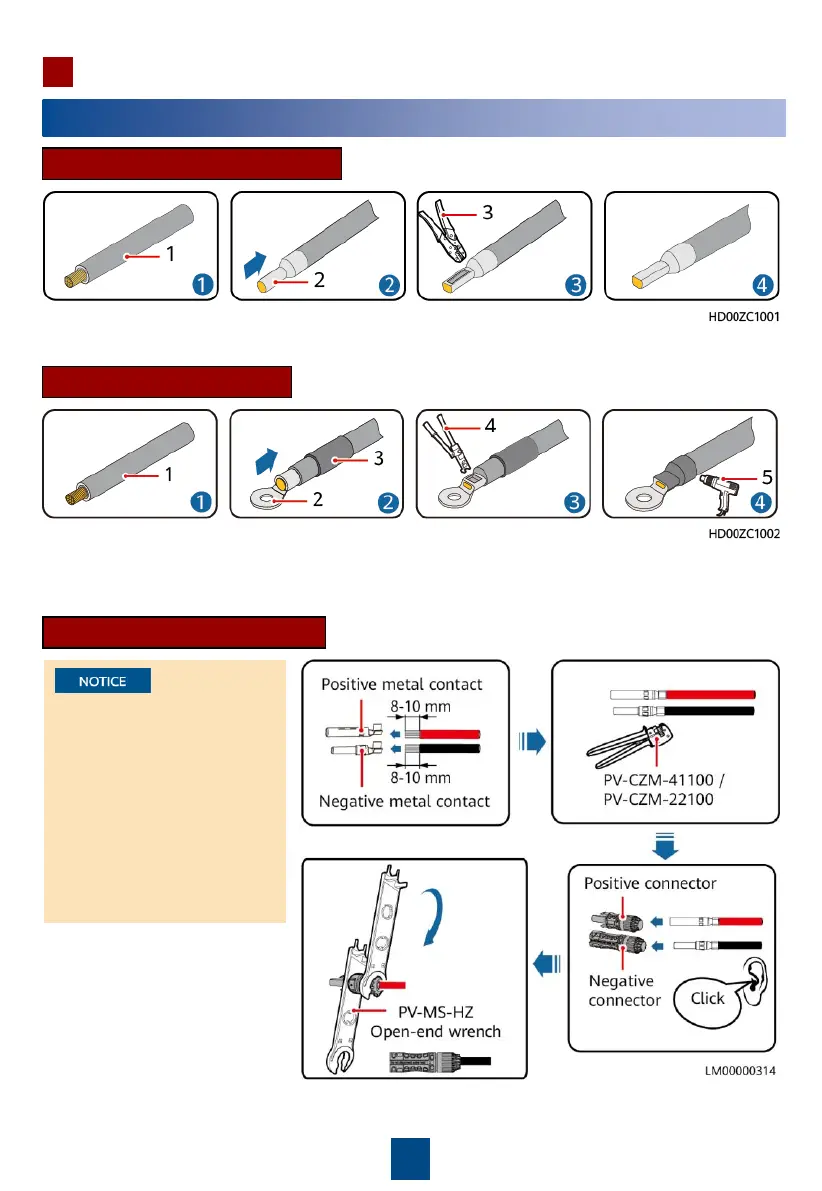

Preparing PV Input Terminals
(1) Cable
(2) OT terminal
(3) Heat
-shrink tubing
(4) Hydraulic pliers
(5) Heat gun
Preparing an OT Terminal
(1) Cable
(2) Cord end terminal
(3) Crimping tool
Preparing a Cord End Terminal
Preparing Terminals
Appendix
• A PV-CZM-41100 crimping
tool is recommended.
• Ensure that the cable
cannot be pulled out after
being crimped.
• Use the wrench shown in
the figure to tighten the
locking nut. When the
wrench slips during the
tightening, the locking nut
has been tightened.

Huawei iSitePower-M Specifications

General

Storage Temperature	-40°C to +70°C
Product Name	Huawei iSitePower-M
Type	Power System
Efficiency	≥96%
Output Voltage	-48 V DC
Operating Temperature	-40°C to +55°C
Relative Humidity	5% to 95% (non-condensing)
Altitude	Up to 4000 m
Cooling Method	Forced Air Cooling
Protection Features	Overvoltage, undervoltage, overcurrent, short circuit, overtemperature
Certifications	CE, UL, TUV
Input Voltage Range	85 V - 300 V AC
