4.5.1 Structure
Subracks are the basic working units of the OptiX OSN 8800 universal platform subrack. The
OptiX OSN 8800 universal platform subrack can operate with an independent DC or AC
power supply. A universal platform subrack supports two mounting options: ETSI cabinet
mounting and 19-inch rack mounting.
Figure 4-27 shows the structure of the subrack.

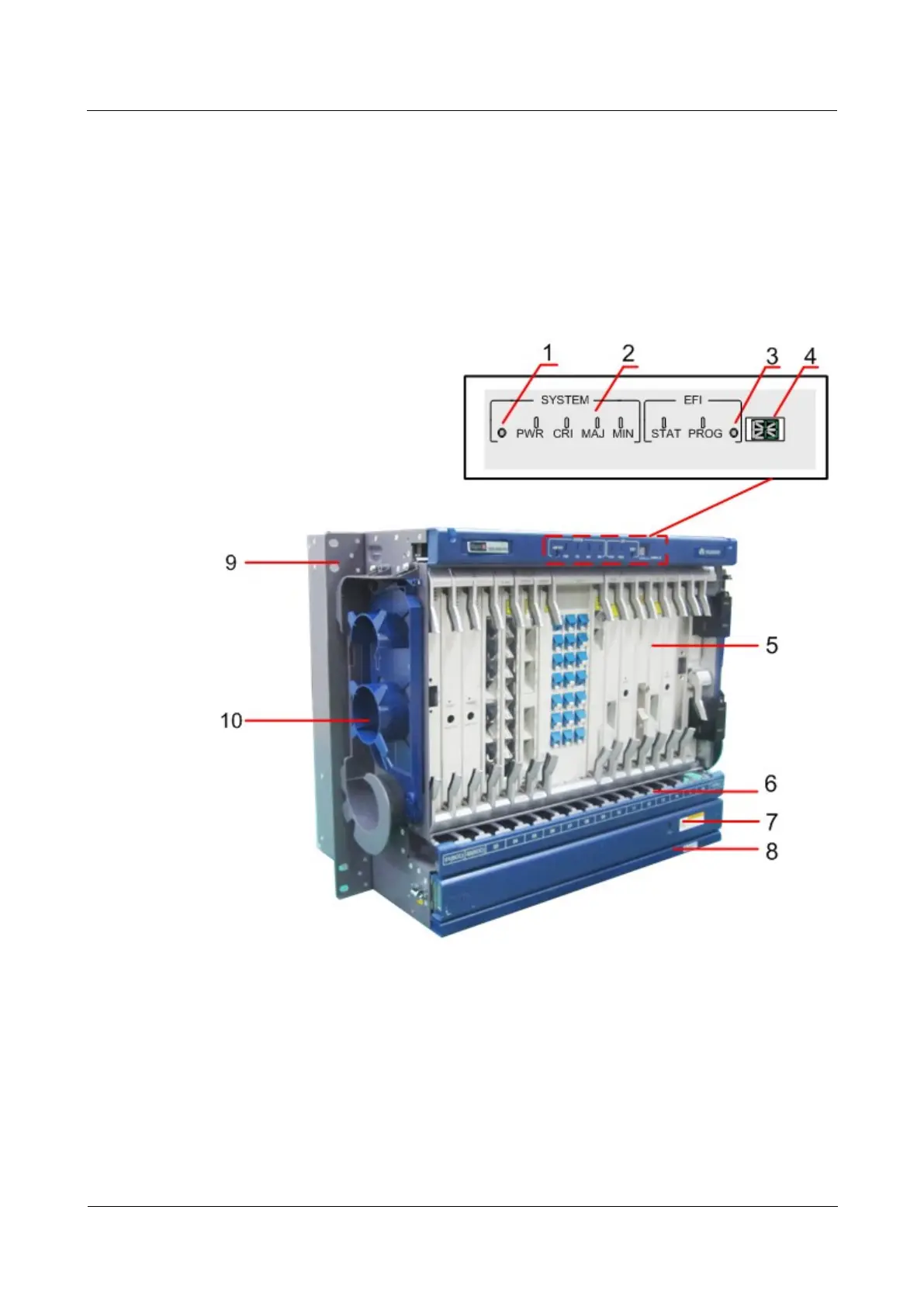

Figure 4-27 OptiX OSN 8800 universal platform subrack structure diagram
1. LAMP TEST Button
2. Indicator/Interface area
3. RESET Button
4. SubRACK_ID LED indicator
5. Board area
6. Fiber cabling area
7. Fan tray assembly
8. Air filter
9. Mounting ear
10. Fiber spool
