4 Environment Requirements on Third-Party
Cabinets

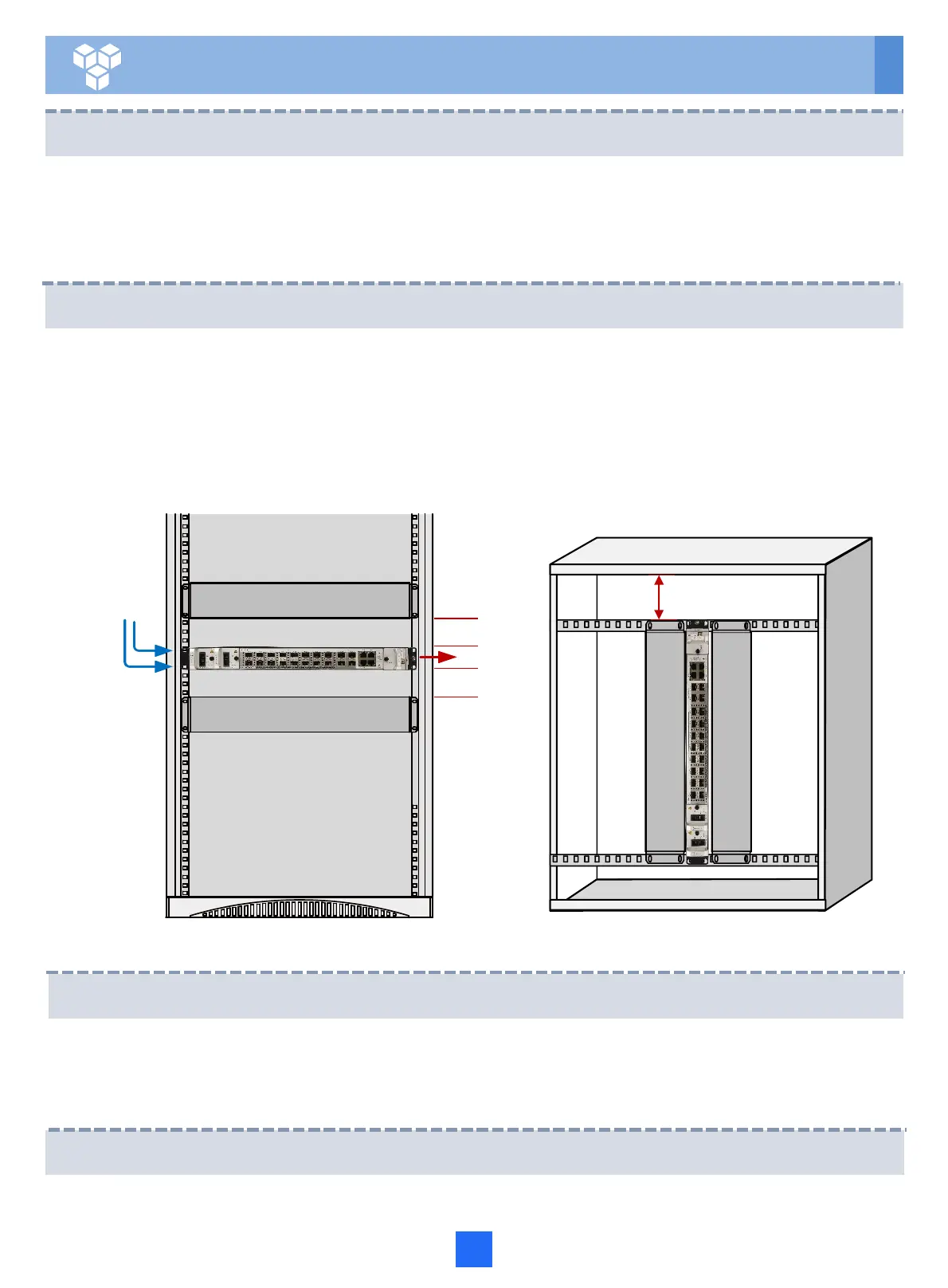

• The EA5801E is a device with left-to-right ventilation channels and must be deployed in a cabinet
with non-blocking air intake vents on the cabinet door.
• When the device is installed together with other active devices in an indoor cabinet, you are advised
to reserve 1 U space for heat dissipation above and under the device respectively to reduce the
impact on other components in the cabinet, and the working temperature must be less than 65 ℃.
• When installing in an outdoor cabinet, the working environment temperature requirement is less
than 65 ℃.
Space Requirements
Heat Dissipation Requirements
• Cabinet requirements:
For the EA5801E service subrack, select an IEC-compliant cabinet with a depth of 300 mm or more
so that a space with a depth of 70 mm or more can be reserved for cable/fiber routing after boards
are installed.
• Cabinet door requirement: When devices are operating, keep the cabinet door closed.
Indoor cabinet
Power Distribution Requirements
Dustproof Requirement
Ensure that an over-current protection mechanism has been deployed on the upper-level device. A less
than or equal to 20 A over-current protection mechanism are recommended for the EA5801E. Ensure
that the circuit breaker trip value of the upper-level device is greater than or equal to the rated value
on the device nameplate.
The EA5801E subrack is not dustproof, so select dustproof cabinets that support dust filter maintenance.
Outdoor cabinet
遮挡物
遮挡物
< 65 ℃
≥1U
≥1U
≥1U
