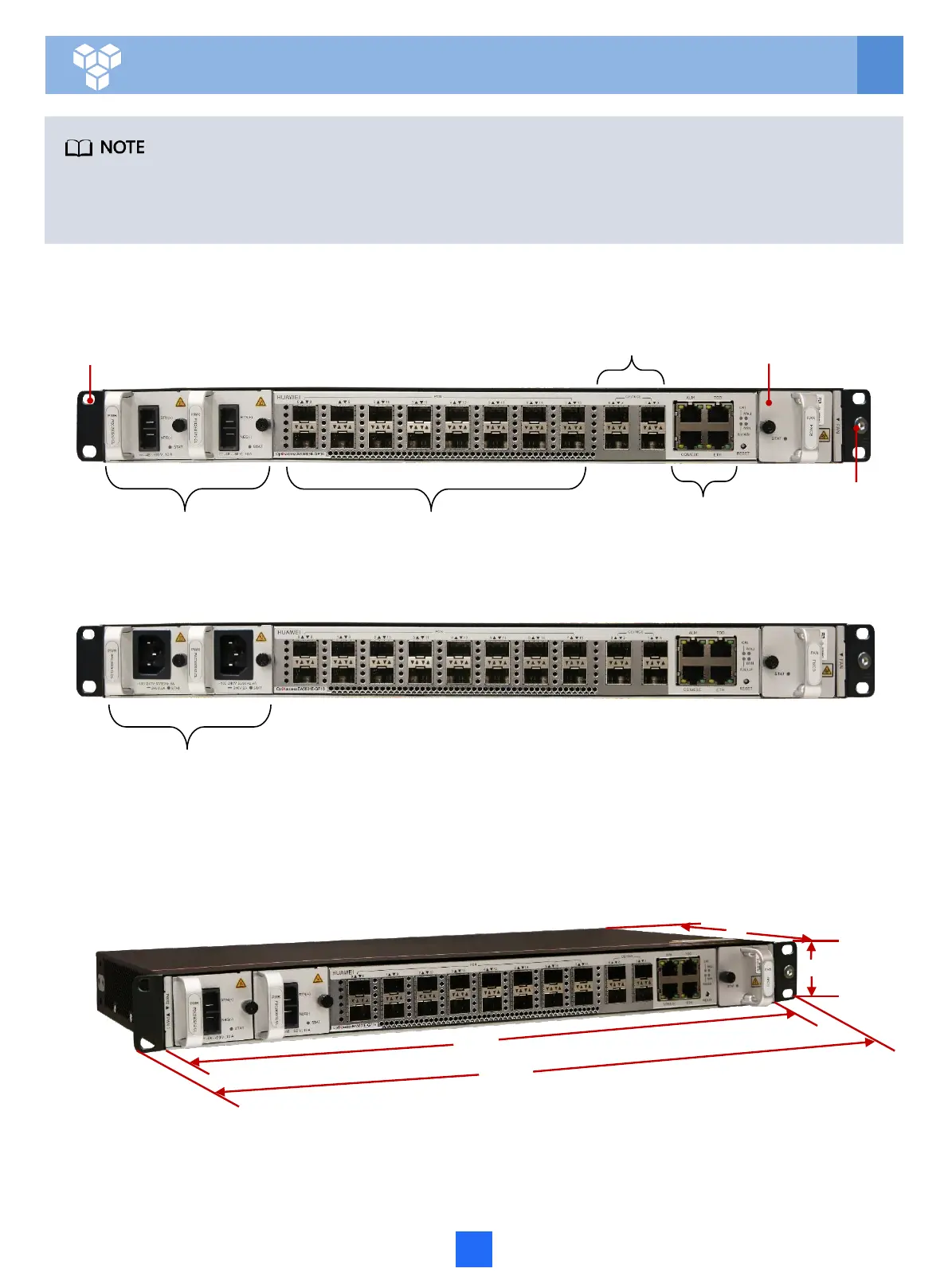

3 Appearance and Structure (EA5801E-GP16)
IEC Mounting bracket
EA5801E-GP16 (with IEC mounting bracket)
Unit: mm
Grounding point
Fan module
AC Power board
GPON port
Upstream port
Universal port
EA5801E-GP16 Front Panel Structure (DC input)
In a living environment, the product may cause radio interference, in which case the user
may need to take measures to counteract the interference.
EA5801E-GP16 Front Panel Structure (AC input)
DC Power board
43.6
482.0
442.0
220.0
