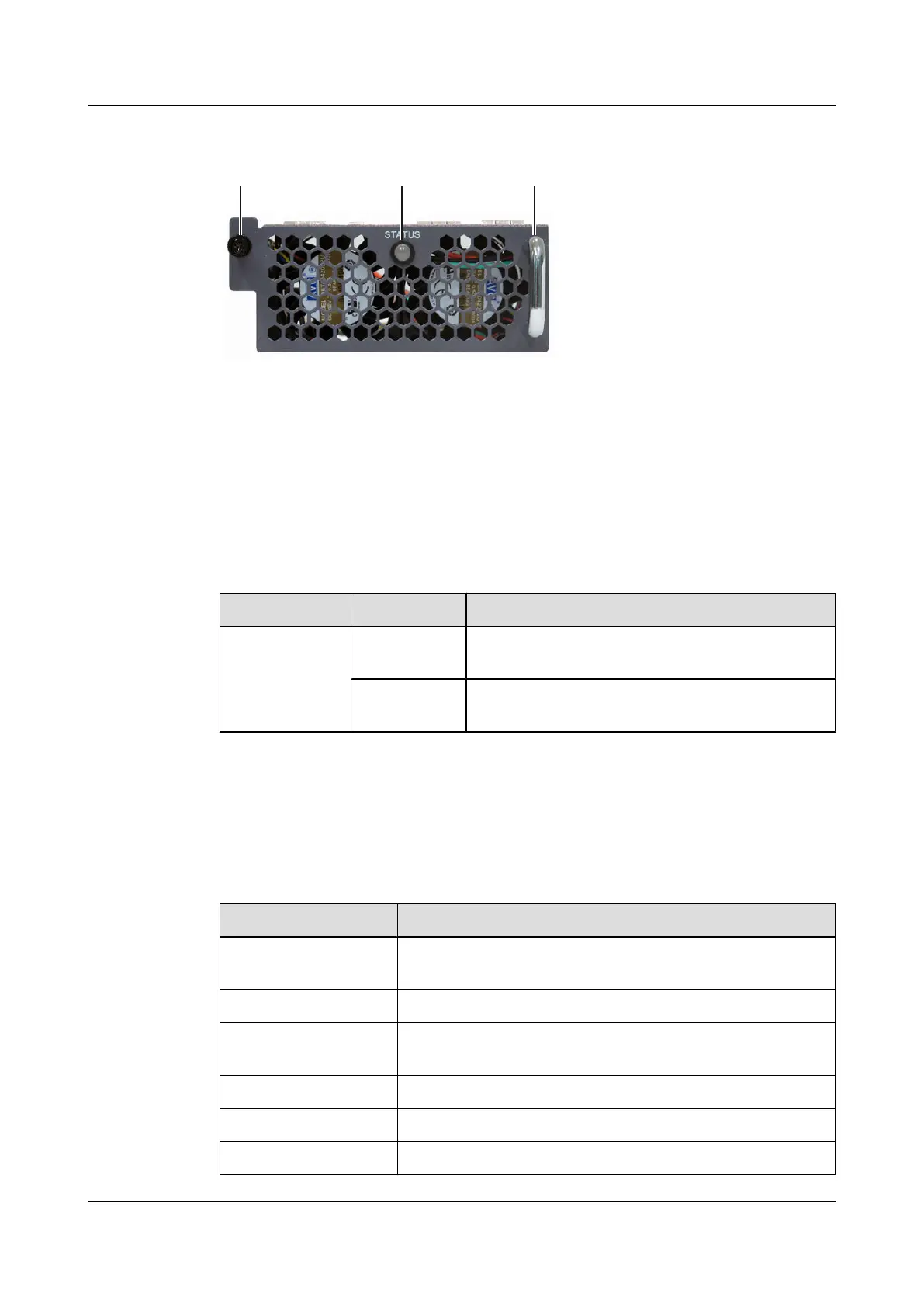

Figure 3-1 Fan module appearance
1. Captive screw 2. Indicator 3. Handle
Indicator
Table 3-2 describes the fan module indicator of the S3300.
Table 3-2 Fan indicator description
Name
Color Description
STATUS Blinking green
(1 Hz)
The fan module is operating properly.
Blinking red (1
Hz)
The fan module is faulty.
Technical Specifications
Table 3-3 describes the technical specifications of the S3300 fan module.
Table 3-3 Fan module technical specifications
Item
Specification
Dimensions (width x
depth x height)
103.0 mm x 99.2 mm x 39.6 mm
Weight 230 g to 270 g
Maximum power
consumption
12 W
Maximum wind pressure 375 Pa
Maximum wind rate 40 CFM
Maximum noise 60 dB
