Ide
ntifi
er
Description
G Software version type:
l EI: enhanced version, supporting enhanced features
l SI: standard version, supporting basic features
H Downlink interface type. The value 24S indicates that 24 downlink interfaces of the
S3352P-EI-24S are optical interfaces.
NOTE
If this letter is not displayed, all downlink interfaces are electrical interfaces.
I The device has monitoring interfaces.
1.3 Device Structure
This section describes the structure of the S3300.
The S3300 adopts an integrated hardware platform that provides the front-access structure. An
S3300 consists of the chassis, power supply unit, fan, and switch control unit (SCU). The width
of an S3300 complies with industry standards, and the S3300 can be installed in an IEC297
cabinet or an ETSI cabinet.
NOTE
l The dimensions of S3328TP-EI-MCI, S3328TP-SI/EI, S3328TP-EI-24S or S3352P-SI/EI are 442.0
mm x 220.0 mm x 43.6 mm (width x depth x height).
l The dimensions of S3352P-EI-24S, S3352P-EI-48S, S3328TP-PWR-EI or S3352P-PWR-EI are
442.0mm×420.0mm× 43.6mm (width x depth x height).
S3300 Appearances

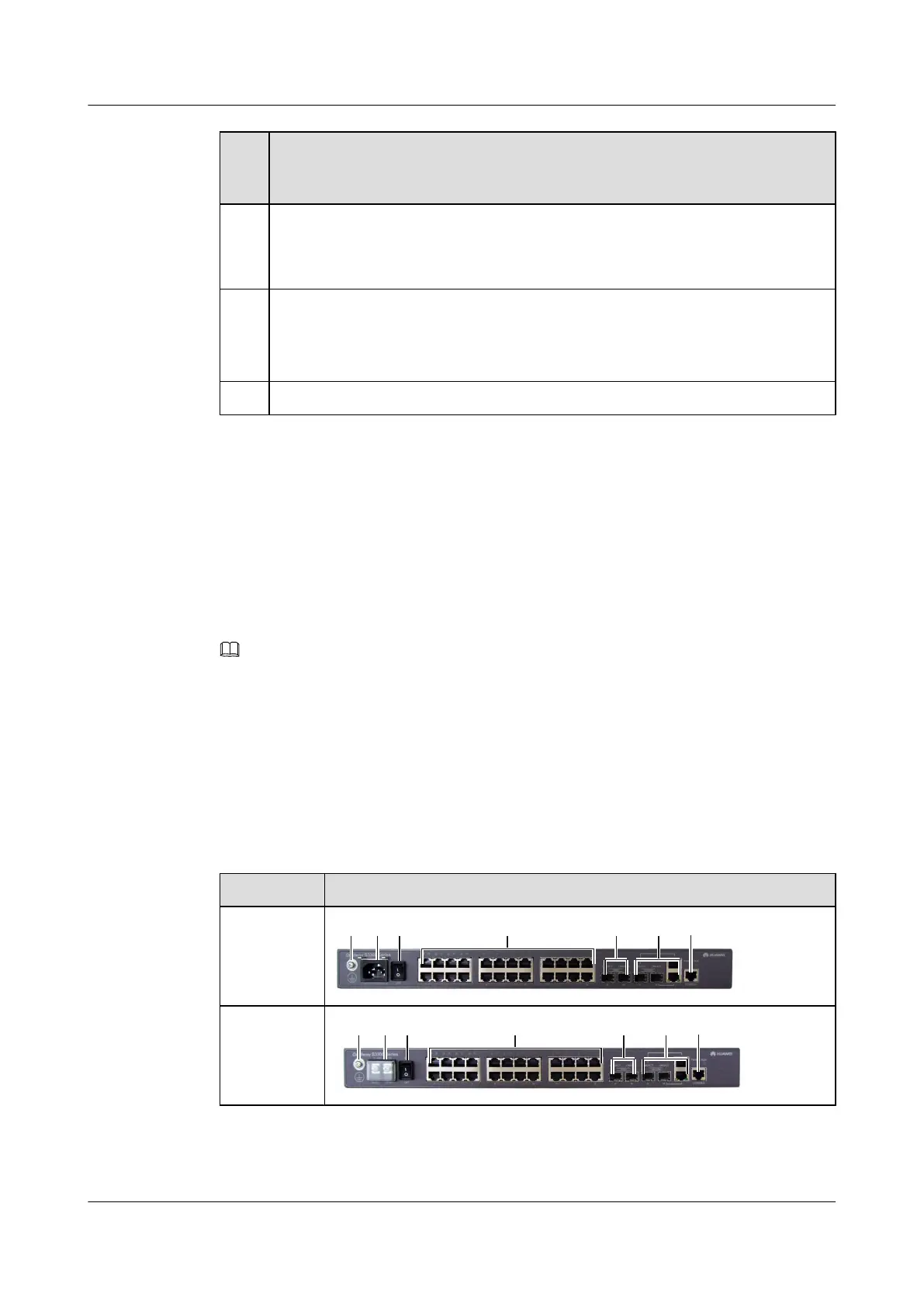

Table 1-2 shows the front views of S3300.
Table 1-2 S3300 front views
Model
S3328TP-SI/
EI-AC
S3328TP-SI/
EI-DC
1 Overview of the S3300
Quidway S3300 Series Ethernet Switches
Hardware Description
1-6 Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Issue 01 (2011-01-30)
