5.1 Indicators on the Front Panel
This section describes the indicators on the S3300 front panel.
Indicators of a Non-PoE S3300
S3328TP-SI is a non-PoE switch that has a single power supply unit.

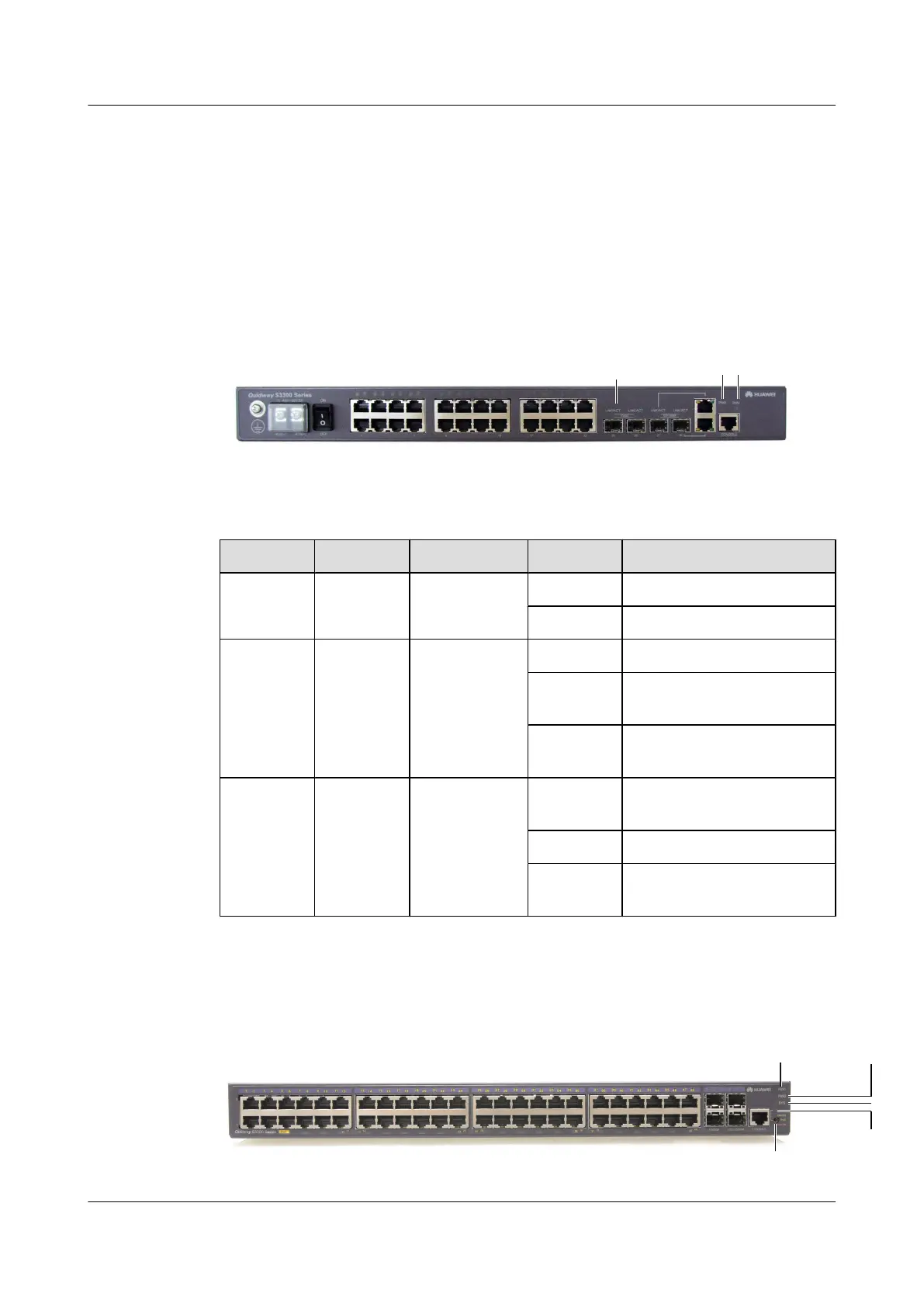

Figure 5-1 S3328TP-SI indicators
1 23
Table 5-1 Description of S3328TP-SI indicators
No. Indicator Identifier Status Description
1 Power
indicator
PWR Off The switch is powered off.
Green The switch is powered on.
2 System
status
indicator
RUN Off The system is not operating.
Green The system is not operating
properly or is starting.
Blinking
green
The system is operating
properly.
3 Port
indicator
LNK/ACT Off The interface is not connected
or has been shut down.
Green The interface is connected.
Blinking
green
The interface is sending or
receiving data.
Indicators of a PoE S3300
S3352P-PWR-EI is a PoE switch.
Figure 5-2 S3352P-PWR-EI indicators
2
3
4
5
1
