Installation Manual
Quidway S5600 Series Ethernet Switches Chapter 3
Installing the Switch
Huawei Technologies Proprietary
3-2
Front mounting
bracket
Screws

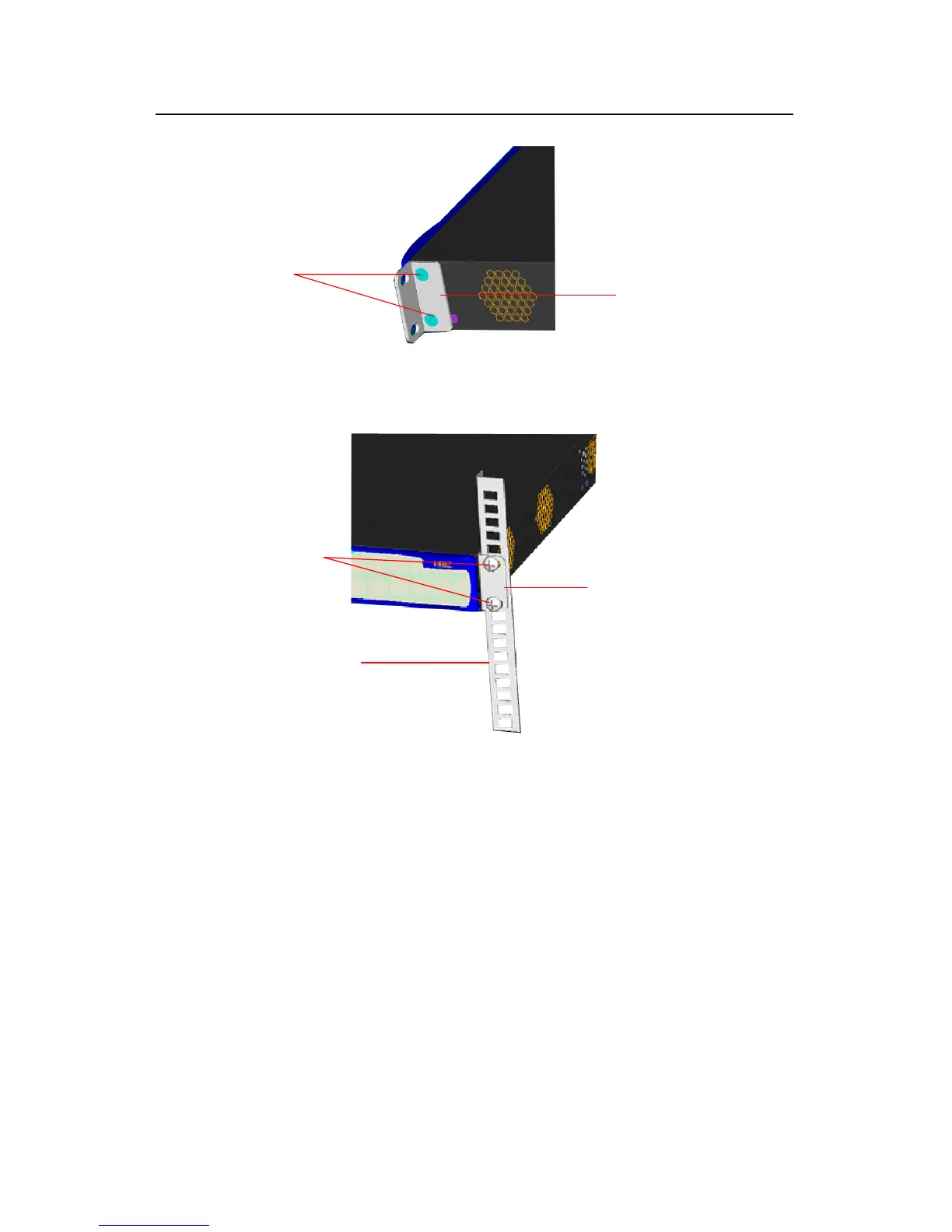

Figure 3-2 Installing with the front mounting brackets
Screws
Front square-holed
strip
Front mounting
bracket
p
Figure 3-3 Fixing the front mounting brackets to the square-holed stri
II. Installing with the rear mounting brackets
Fix a screw at the back of each switch side. The rear mounting brackets support the
switch by fully lifting the screws. The following figure depicts the three positions for the
screws on the switch.
