Quidway S5600 Series Ethernet Switches Chapter 3
Installing the Switch
Huawei Technologies Proprietary
3-3
Three positions for screws

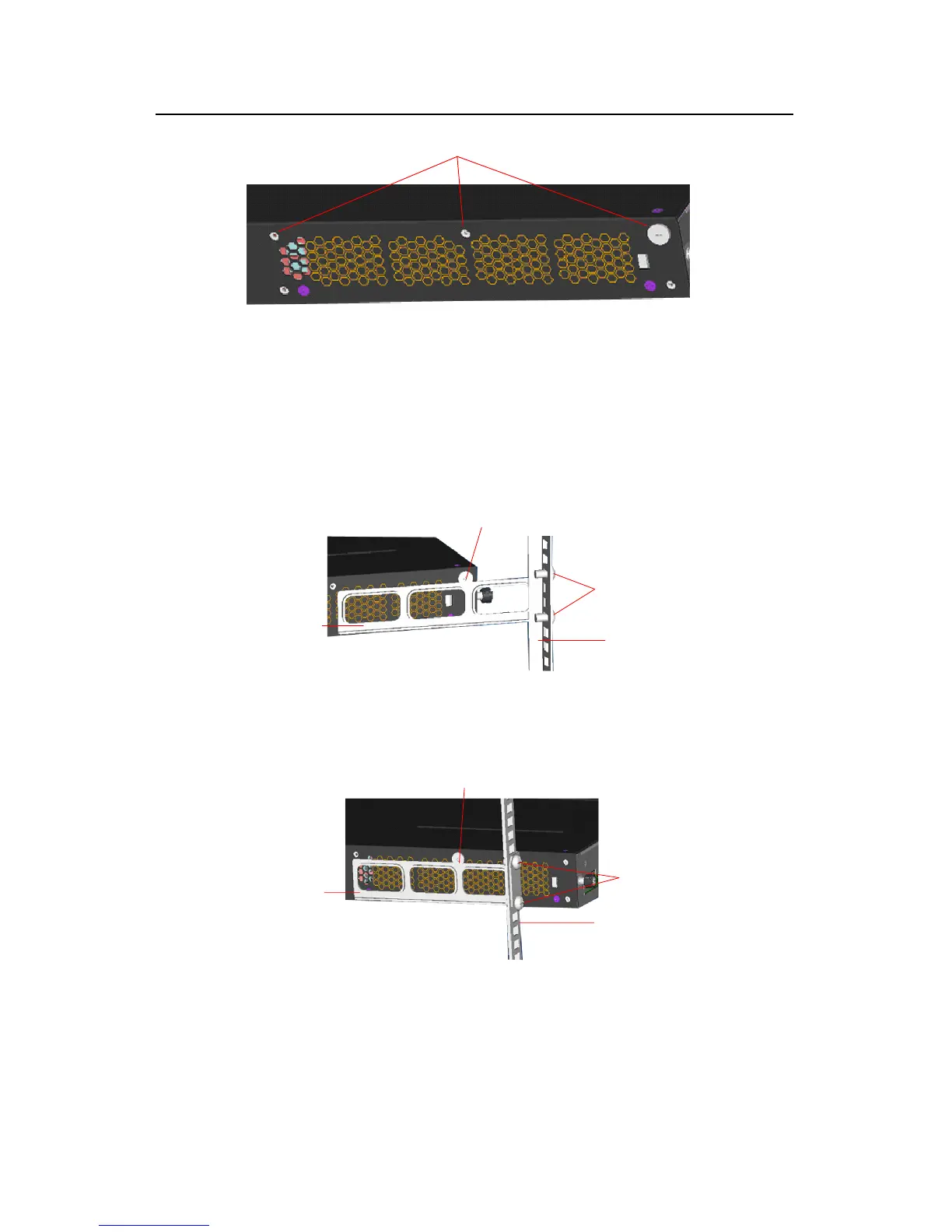

Figure 3-4 Positions for screws on the switch
Follow the procedure to install with the rear mounting brackets:
1) Fix the rear mounting brackets to the rear square-holed strips with the screws.
2) Choose the position for the screw on the switch according to the rear square-holed
strip.
3) Fix the screw on the switch and make sure the screw lifts the rear mounting
brackets fully.
Screw 1
Screw 2
Rear mounting
bracket
Rear square-holed
strip
Screw 1: Fix the rear mounting brackets to the rear square-holed strip
Screw 2: Fixed on the switch
Figure 3-5 Completion (1)
Screw 2
Rear mounting
bracket
Screw 1
Rear square-holed
strip
)
Screw 1: Fix the rear mounting brackets to the rear square-holed strip
Screw 2: Fixed on the switch
Figure 3-6 Completion (2
3.1.2 Mounting the Switch on a Tabletop/Workbench
