Installation Manual
Quidway S5600 Series Ethernet Switches Chapter 1
Product Overview
Huawei Technologies Proprietary
1-12
Note:
The available 1000 Mbps SFP modules are subject to changes. For information on the
latest module options, contact your sales agent or technical support engineer.
1.2.2 Rear Panel
I. Rear panel
Note:
The ports of the AC/DC dual input power module and the PoE power module are
exactly the same, so only one rear panel illustration is shown below.
The S5624P/S5624P-PWR/S5624F provides two sockets for pluggable power module,
two fabric ports, one expansion slot, and one grounding screw on its rear panel, as
shown in the following figure.

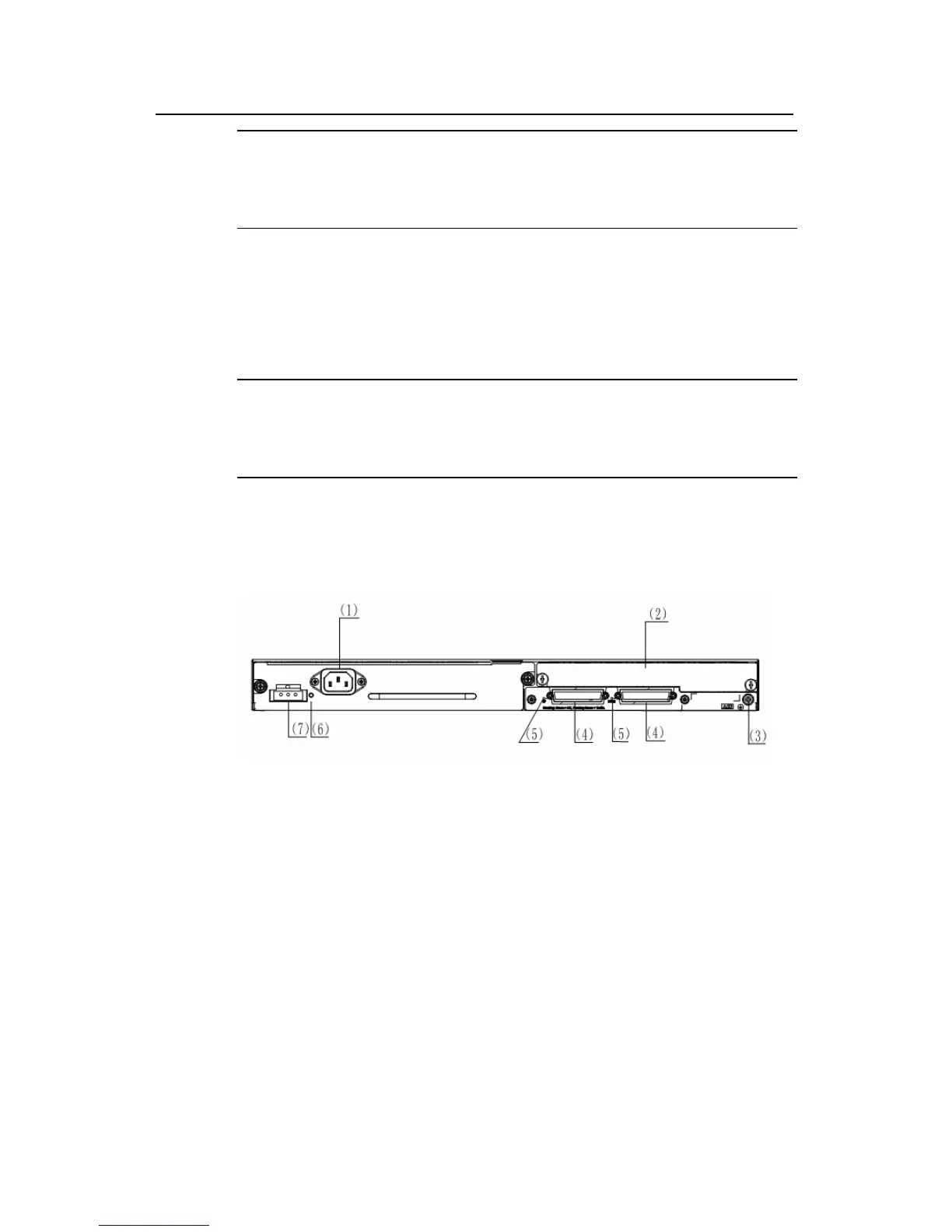

(1) AC-input power socket for the power module (2) Expansion module
(3) Grounding screw (4) Fabric ports
(5) Fabric port LEDs (6) RPS LED
(7) DC-input power socket for the power module
Figure 1-3 Rear panel of the S5624P/S5624P-PWR/S5624F
II. Fabric port
The fabric port marked with “UP” connects to a port of the same type on an upstream
device; the fabric port marked with “DOWN” connects to a port of the same type on a
downstream device.
