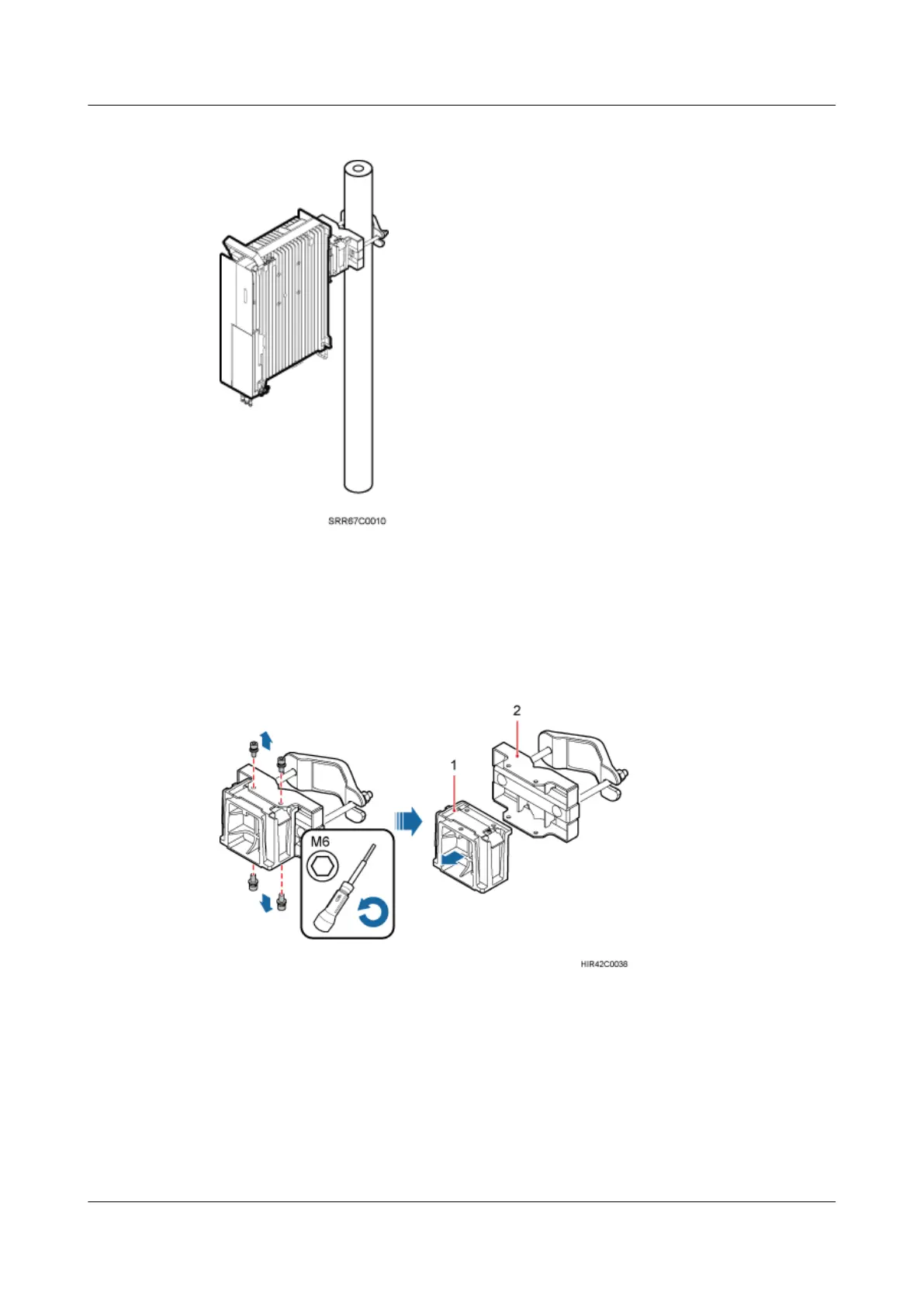

Figure 8-8 Installing the first RRU onto the main bracket
Step 2 Use an M6 inner hexagon screwdriver to loosen the four hex socket screws from the main bracket
and pole installation brackets on the second set of mounting brackets, and remove the main
bracket, as shown in Figure 8-9.
Figure 8-9 Removing the RRU main bracket
(1) Main bracket
(2) Pole installation bracket
Step 3 Install the removed main bracket on one side of the first main bracket, as shown in Figure
8-10.
RRU3262
Installation Guide
8 Installing the RRU
