Huawei SmartACU2000D Series User Manual

SmartACU2000D Smart Array Controller
User Manual (with No PID Module)
1 Safety Precautions
Issue 01 (2020-02-14)
Copyright © Huawei Technologies Co., Ltd.
4
Cabling

When routing cables, ensure that a distance of at least 30 mm exists between the cables
and heat-generating components or areas. This prevents damage to the insulation layer of
the cables.

Bind cables of the same type together. When routing cables of different types, ensure that
they are at least 30 mm away from each other.

Ensure that the cables used in a grid-tied PV power system are properly connected and
insulated and meet specifications.
1.4 Installation Environment Requirements

Ensure that the equipment is installed in a well ventilated environment.

To prevent fire due to high temperature, ensure that the ventilation vents or heat
dissipation system are not blocked when the equipment is running.

Do not expose the equipment to flammable or explosive gas or smoke. Do not perform
any operation on the equipment in such environments.
1.5 Mechanical Safety
Using Ladders

Use wooden or fiberglass ladders when you need to perform live working at heights.

When a step ladder is used, ensure that the pull ropes are secured and the ladder is held
firm.

Before using a ladder, check that it is intact and confirm its load bearing capacity. Do not
overload it.

Ensure that the wider end of the ladder is at the bottom, or protective measures have
been taken at the bottom to prevent the ladder from sliding.


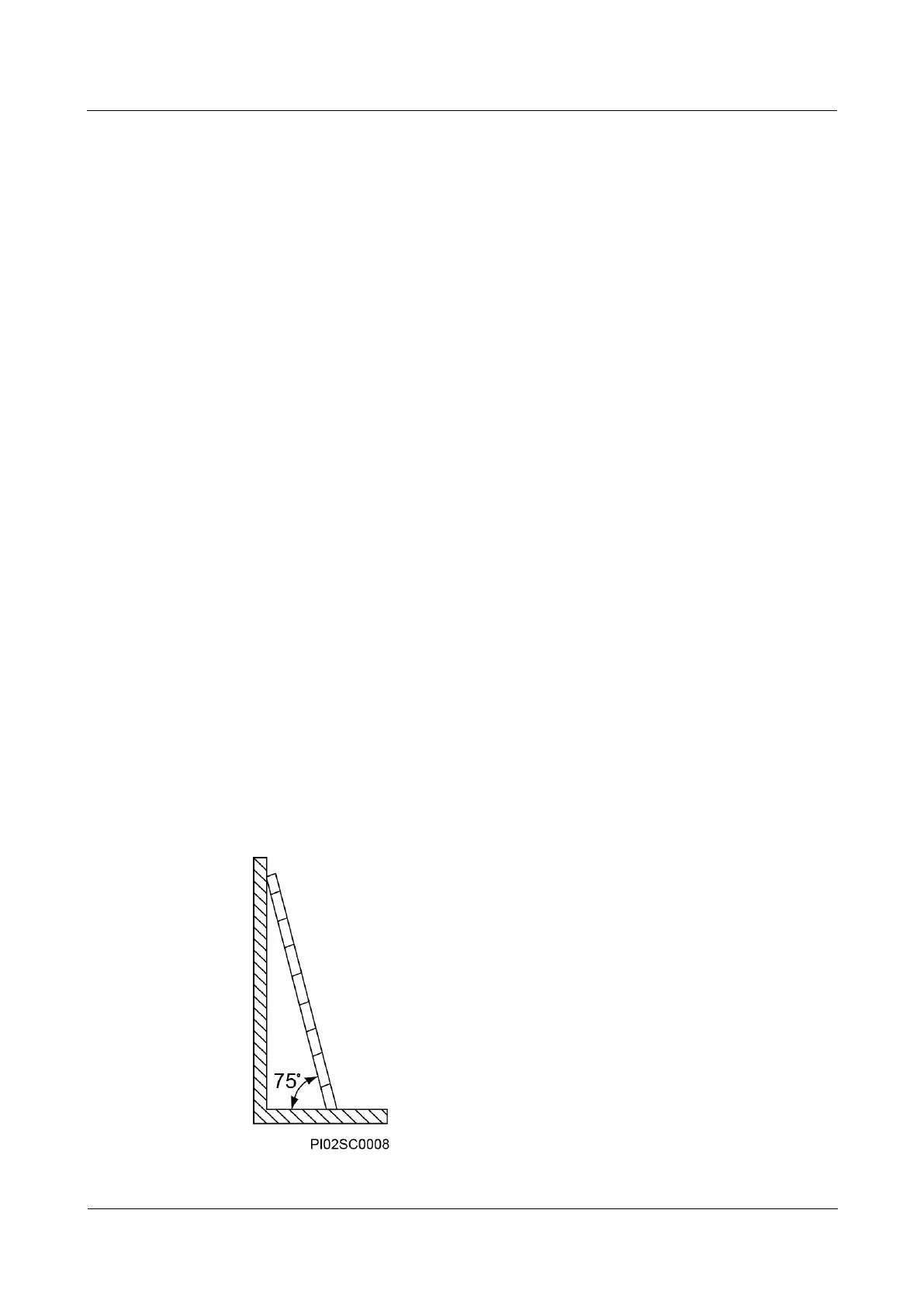

Ensure that the ladder is securely positioned. The recommended angle for a ladder
against the floor is 75 degrees, as shown in the following figure. An angle rule can be
used to measure the angle.
