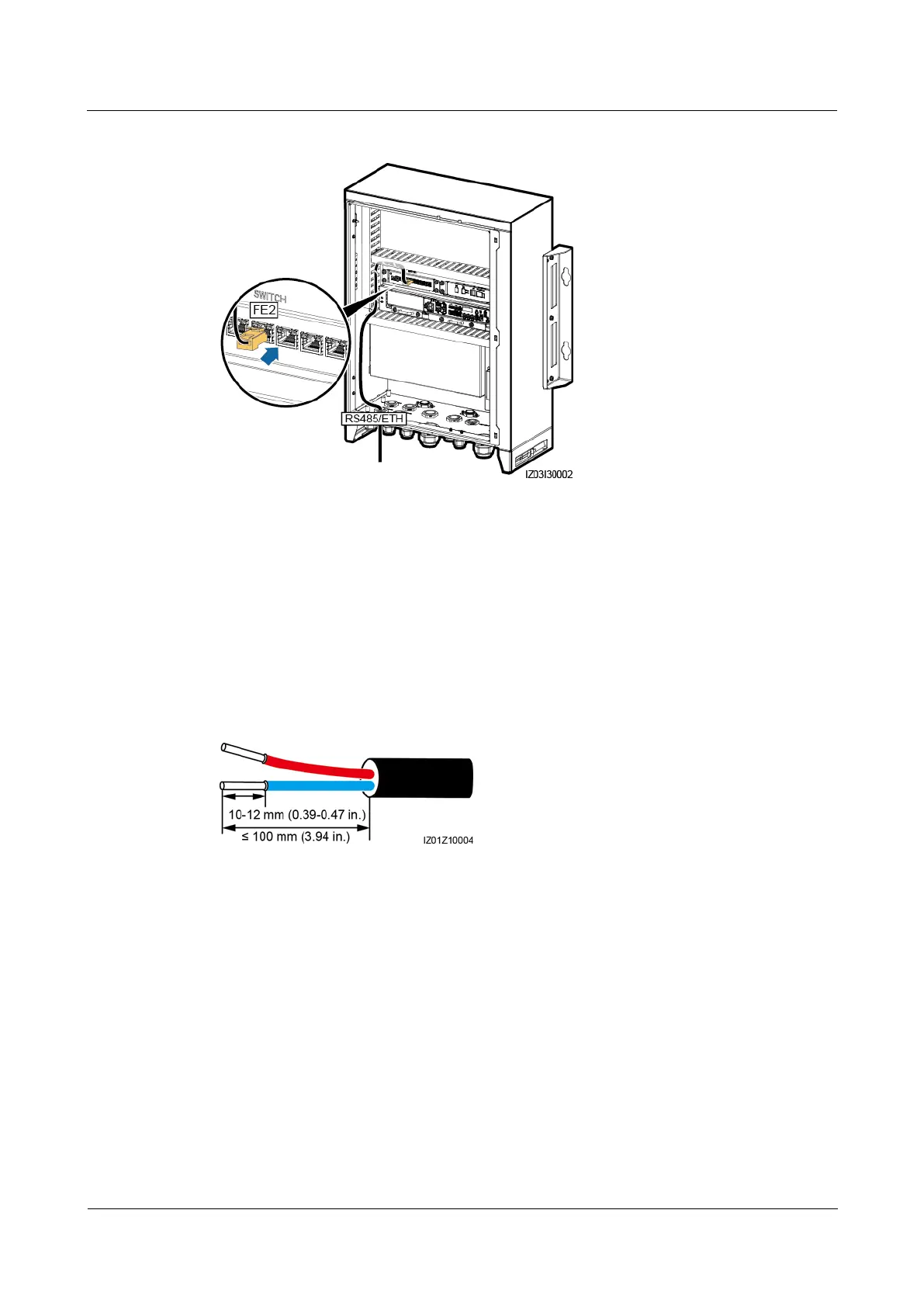

Figure 5-21 Connecting a network cable
----End
5.10 (Optional) Connecting the DC Output Power Cable to
the 24 V Power Module
Step 1 Prepare a cable.
Figure 5-22 Length for cable stripping
Step 2 Connect the cable to the 24V OUT+ and 24V OUT- ports on the power module.
Step 3 Bind the cable.
