Huawei SmartACU2000D Series User Manual

SmartACU2000D Smart Array Controller
User Manual (with No PID Module)
2 Overview
Issue 01 (2020-02-14)
Copyright © Huawei Technologies Co., Ltd.
11

A maximum of 15 SmartLoggers can be connected to form an optical fiber ring network. Each
SmartLogger can connect to devices such as solar inverters, environmental monitoring instruments
(EMIs), and power meters.

Multiple optical fiber ring networks can be connected to the management system over an Ethernet
switch.

Wireless network: 4G solution
2.3 Appearance
2.3.1 Product Appearance
Appearance

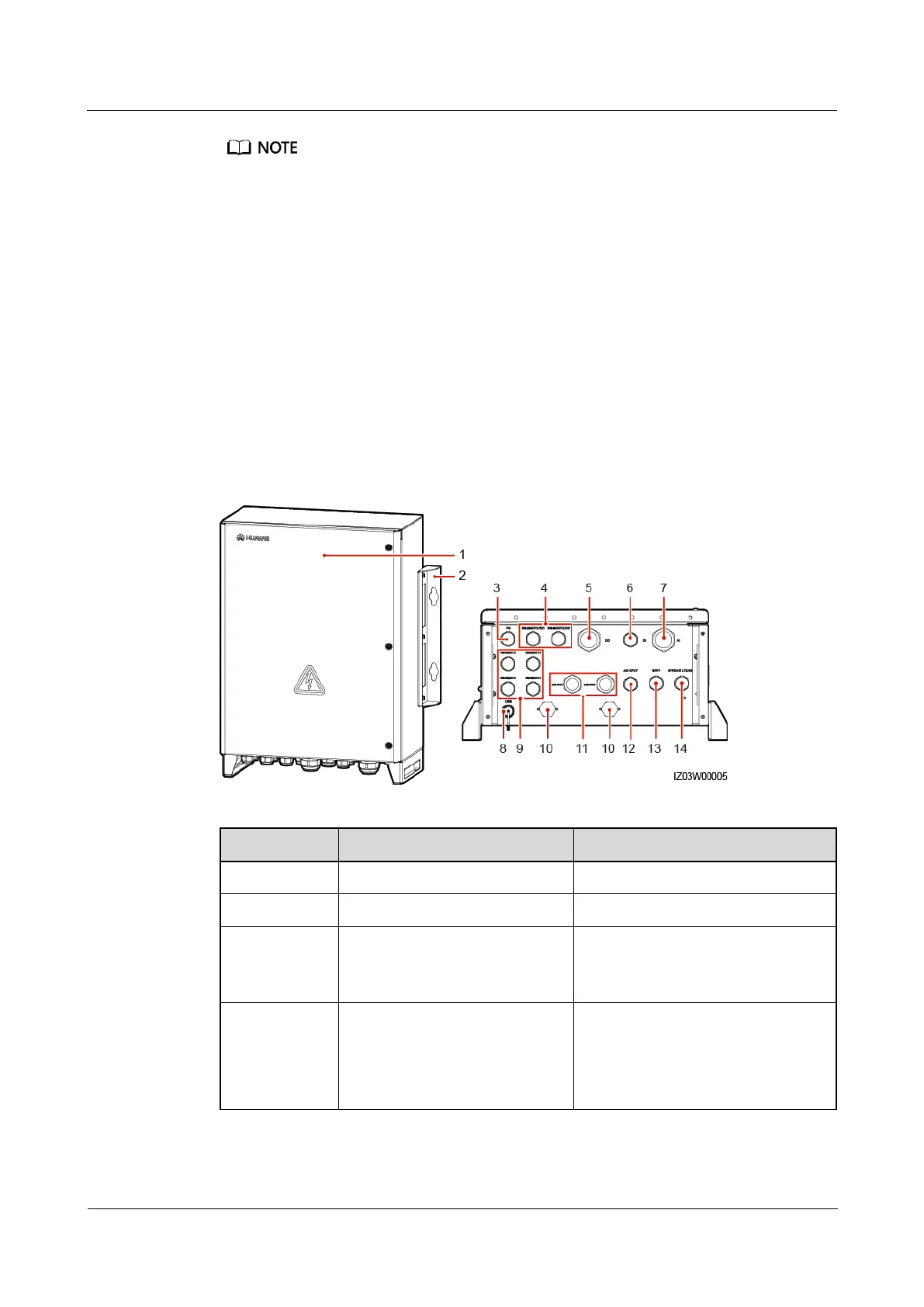

Figure 2-5 Appearance
No.
Component
Description
1
Cabinet door
-
2
Mounting plate
-
3
Waterproof connector for the
protective earthing cable (PE)

Specifications: 3/4 in.

Inner diameter: 13–18 mm
(0.51–0.71 in.)
4
Waterproof connectors for the
RS485 communications cable,
network cable, or DC input and
output power cable
(RS485/ETH/DC)

Specifications: 3/4 in.

Inner diameter: 13–18 mm
(0.51–0.71 in.)

Huawei SmartACU2000D Series Specifications

General

Brand	Huawei
Model	SmartACU2000D Series
Category	Controller
Language	English
