2.5 Working Principles

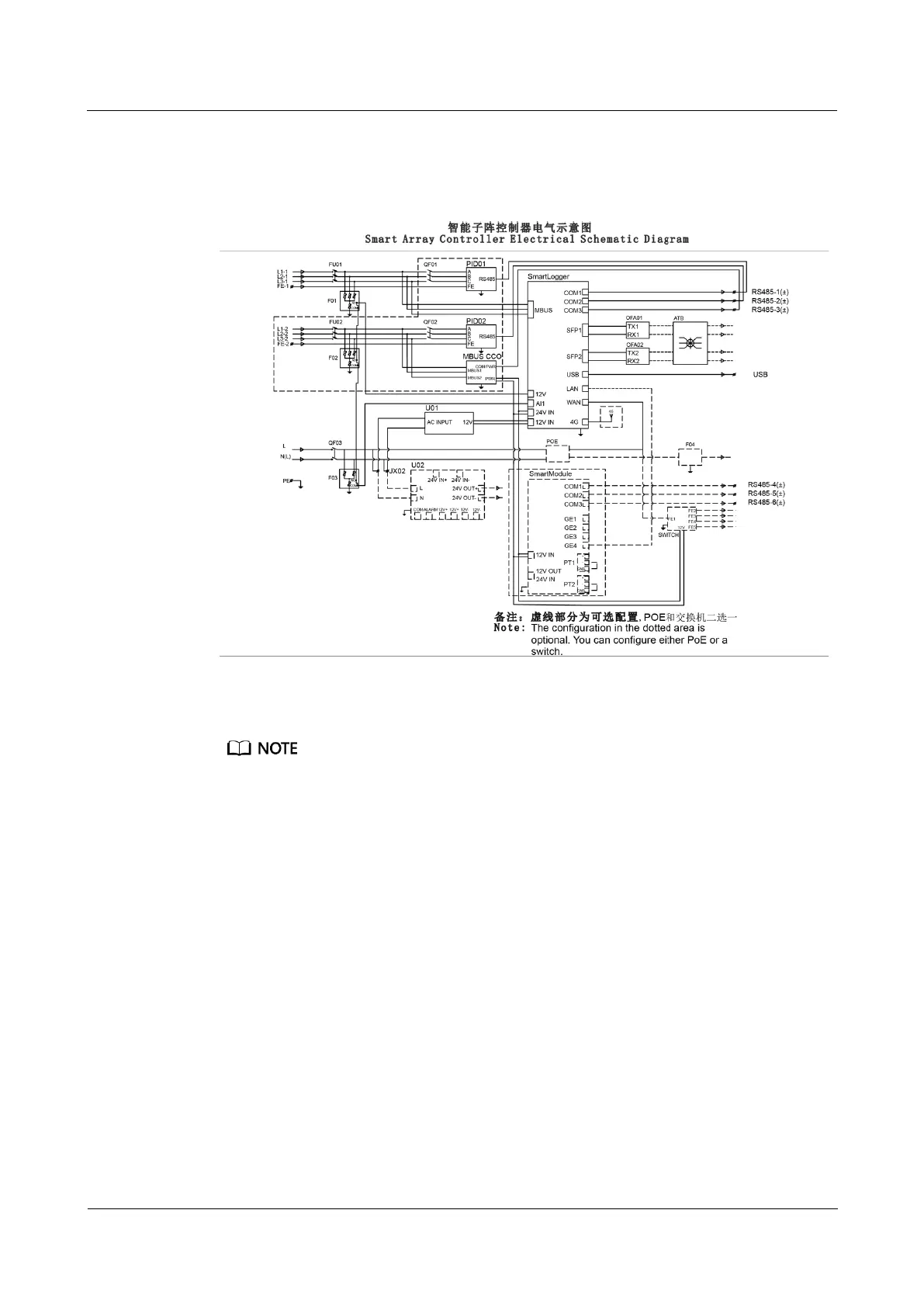

Figure 2-9 Electrical conceptual diagram
The SACU communicates with devices in a PV array over RS485, MBUS, or Ethernet.
When the SACU communicates with solar inverters over MBUS, log in to the embedded WebUI of the
SmartLogger3000, choose Monitoring > MBUS > Networking Settings, and set Networking to
Enable (default value). When the SACU communicates with the solar inverters over RS485, set
Networking to Disable. For details, see the SmartLogger3000 User Manual.

RS485 communication mode
