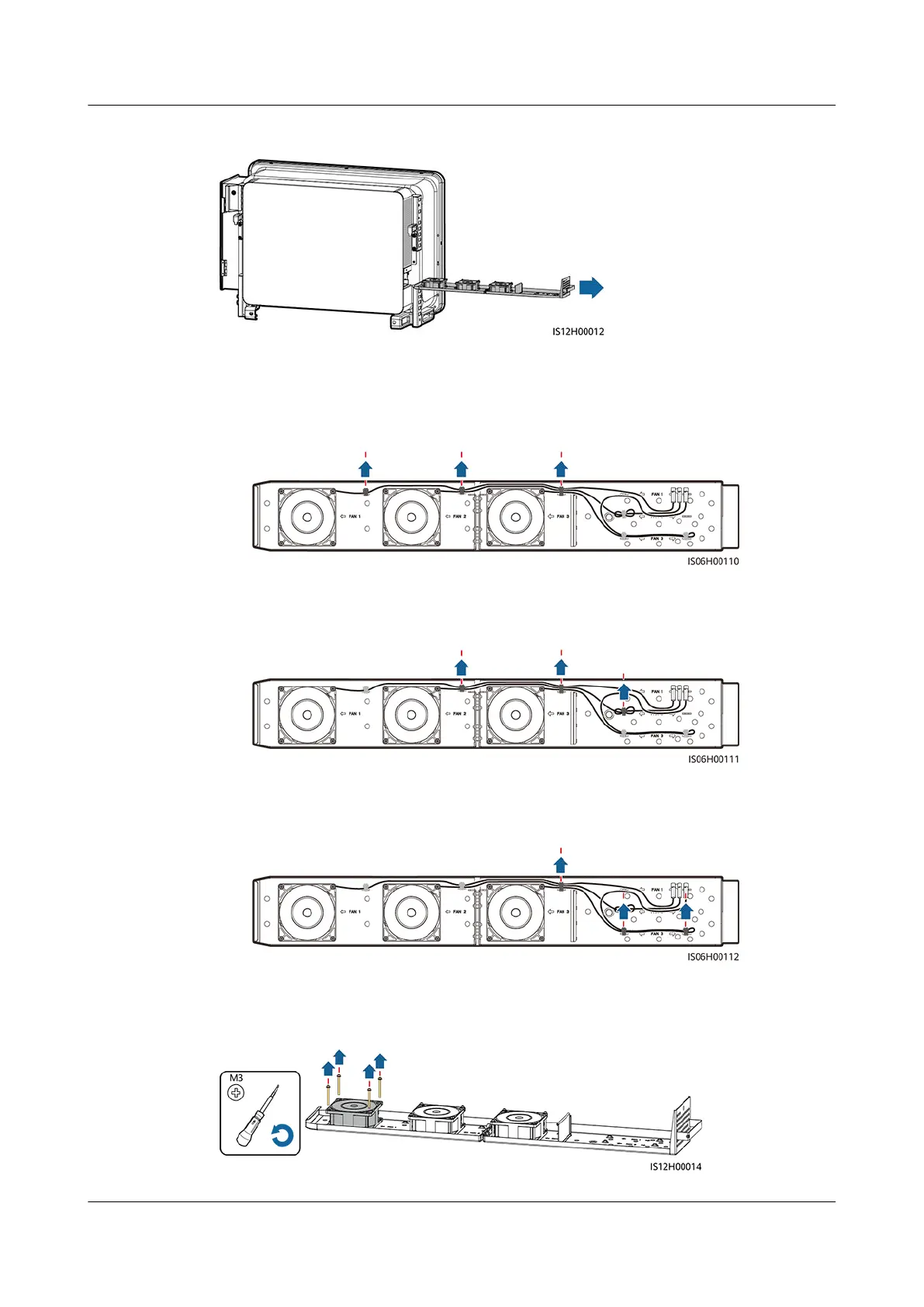

Figure 8-6 Pulling out fan tray (2)
Step 4 Remove cable ties from the faulty fan.
● FAN 1 Faulty
Figure 8-7 Removing the FAN 1 cable ties
● FAN 2 Faulty
Figure 8-8 Removing the FAN 2 cable ties
● FAN 3 Faulty
Figure 8-9 Removing the FAN 3 cable ties
Step 5 Remove the faulty fan (FAN 1 is used as an example).
Figure 8-10 Removing the fan
