Step 6 Install the new fan (FAN 1 is used as an example).

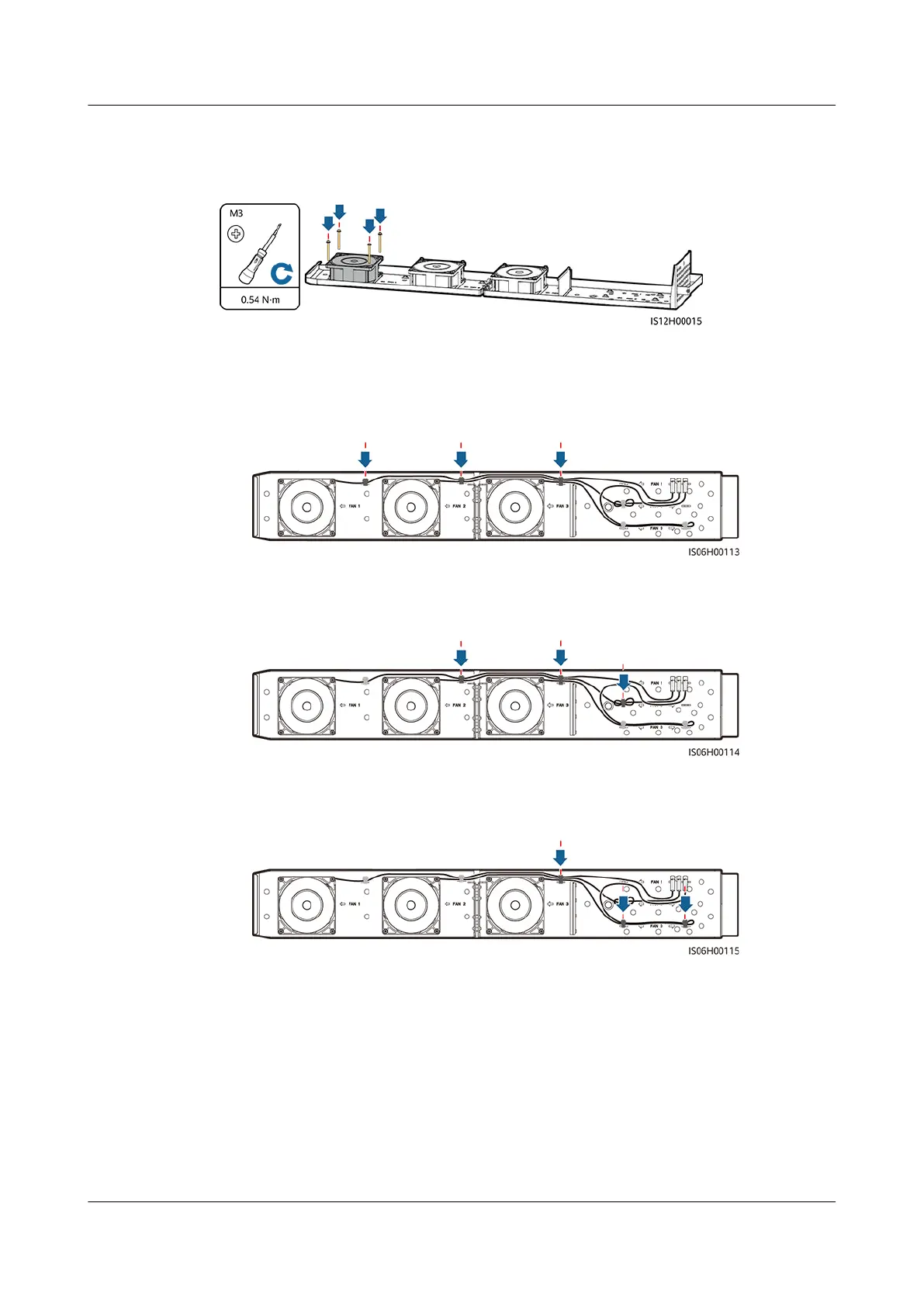

Figure 8-11 Installing a new fan
Step 7 Bind the fan cables.
● Binding positions for fan 1
Figure 8-12 Binding the FAN 1 cables
● Binding positions for fan 2
Figure 8-13 Binding the FAN 2 cables
● Binding positions for fan 3
Figure 8-14 Binding the FAN 3 cables
Step 8 Push the fan tray into the slot until the fan bae plate aligns with the inverter
chassis.
SUN2000-(100KTL, 110KTL, 125KTL) Series
User Manual 8 Maintenance
Issue 07 (2020-09-15) Copyright © Huawei Technologies Co., Ltd. 122
