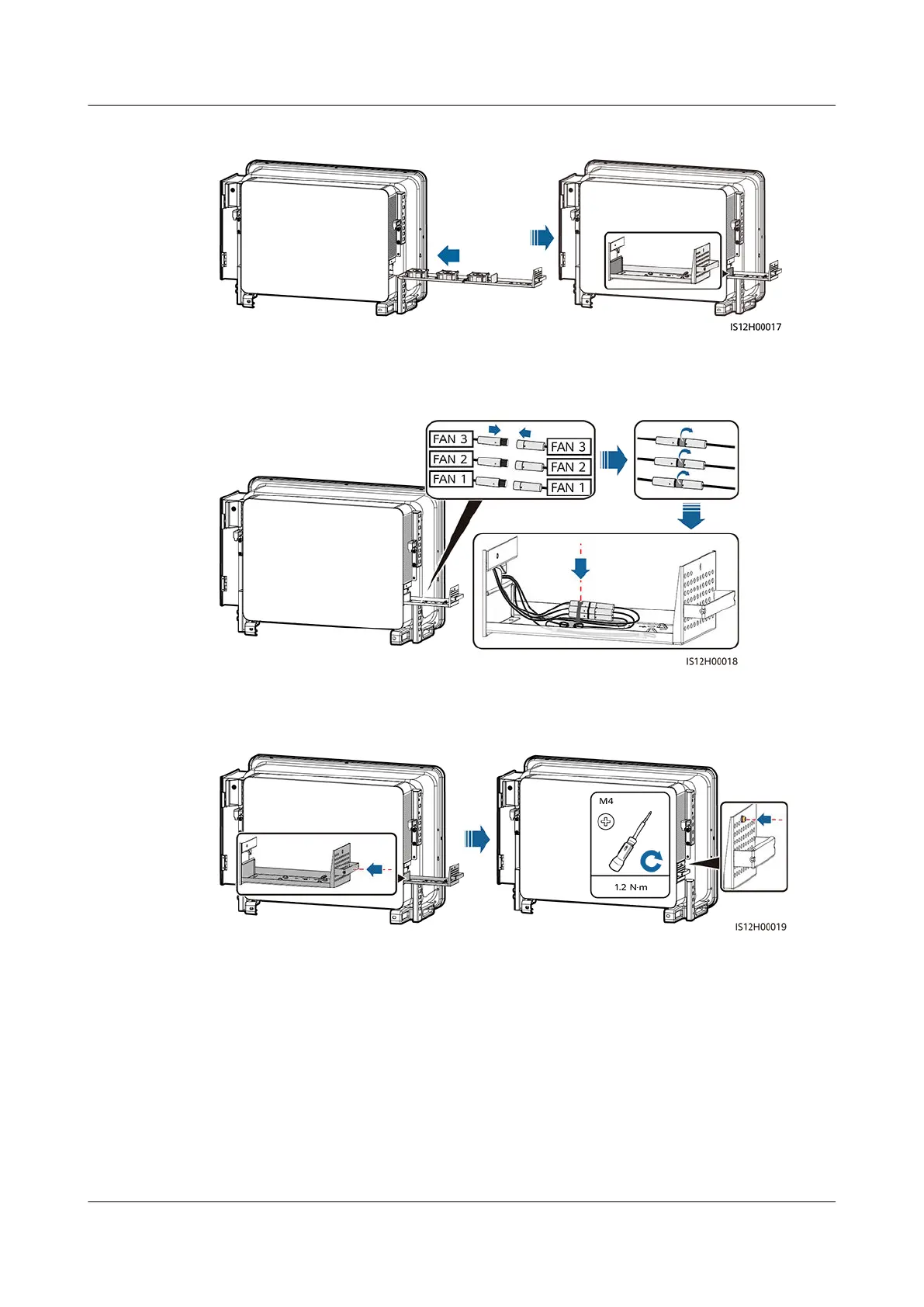

Figure 8-15 Pushing the fan tray in
Step 9 Connect the cables correctly according to the cable labels and bind the cables.
Figure 8-16 Reconnecting and binding the cables
Step 10 Push the fan tray into the slot and tighten the screw.
Figure 8-17 Reinstalling the fan tray
----End
SUN2000-(100KTL, 110KTL, 125KTL) Series
User Manual 8 Maintenance
