Huawei SUN2000-20KTL User Manual

SUN2000 (8KTL-28KTL)
User Manual
2 Overview
Issue 07 (2014-07-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
10

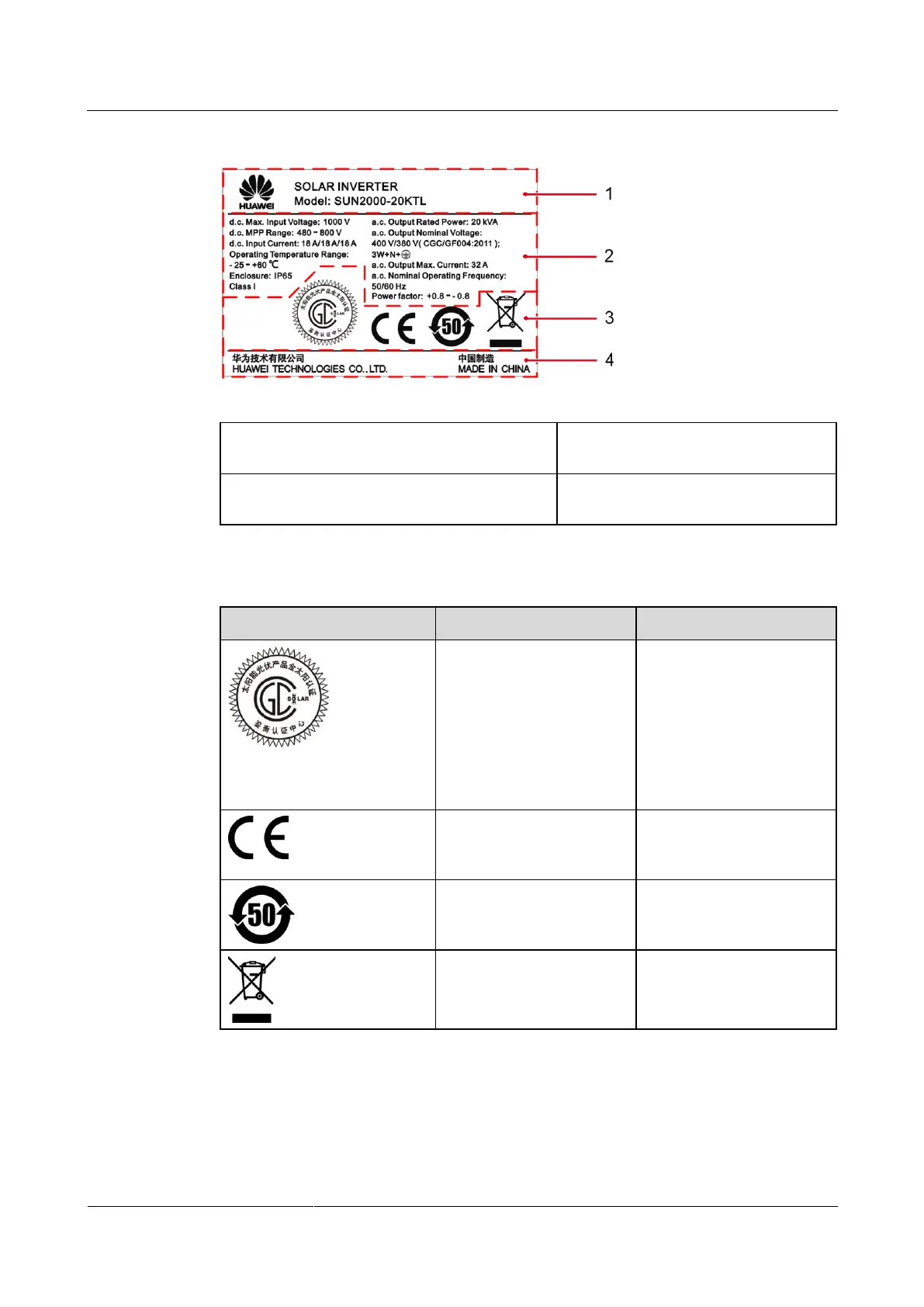

Figure 2-5 Nameplates
1. Trademark and product model of the
SUN2000
2. Technical specifications of the
SUN2000
3. Labels of certifications that the SUN2000
complies with
4. Company name and the
manufacturing place
Table 2-3 describes certification labels.
Table 2-3 Certification labels
Label
Label Name
Meaning
CGC-Solar certification
label
This document complies
with CGC-Solar
certification standards.
Note: The
SUN2000-8KTL,
SUN2000-10KTL, and
SUN2000-12KTL have no
this label.
Conformite Europeenne
(CE) certification label
This product complies with
the CE certification
standards.
Environmentally friendly
use period (EFUP) label
This product does not
pollute the environment
during a specified period.
EU waste electrical and
electronic equipment
(WEEE) label
Do not dispose the
SUN2000 as household
garbage.

Huawei SUN2000-20KTL Specifications

General

Max. efficiency	98.6%
Rated AC output power	20, 000 W
Max. apparent power	22, 000 VA
No. of MPP trackers	2
Max. input voltage	1100 V
Protection degree	IP65
Max. DC Power	30, 000 W
Start Voltage	200 V
Nominal DC Voltage	600 V
Max. Input Current per MPPT	26 A
Nominal AC Grid Frequency	50 Hz / 60 Hz
Adjustable Power Factor Range	0.8 leading to 0.8 lagging
Total Harmonic Distortion (THD)	<3%
DC Reverse-Polarity Protection	Yes
AC Overcurrent Protection	Yes
AC Short-Circuit Protection	Yes
DC Insulation Resistance Detection	Yes
Residual Current Monitoring	Yes
AC Overvoltage Protection	Yes
DC Switch	Yes
Cooling Method	Natural Convection
AC output voltage	220 V / 380 V, 230 V / 400 V
MPPT operating voltage range	200 V - 1000 V
Operating temperature range	-25°C to +60°C
Relative Humidity	0% - 100%
Operating Altitude	Up to 4000 m
Surge Protection	Type II DC & AC
