inputs are grouped into three MPPT routes inside the SUN2000 to track the maximum
power point of the PV strings.

The SUN2000-8KTL, SUN2000-10KTL, and SUN2000-12KTL receive inputs from four
PV strings. Then the inputs are grouped into two MPPT routes inside the SUN2000 to
track the maximum power point of the PV strings.
After that, the DC power is converted into three-phase AC power through an inverter circuit.
Surge protection is supported on both the DC and AC sides. See Figure 2-10, Figure 2-11, and
Figure 2-12.

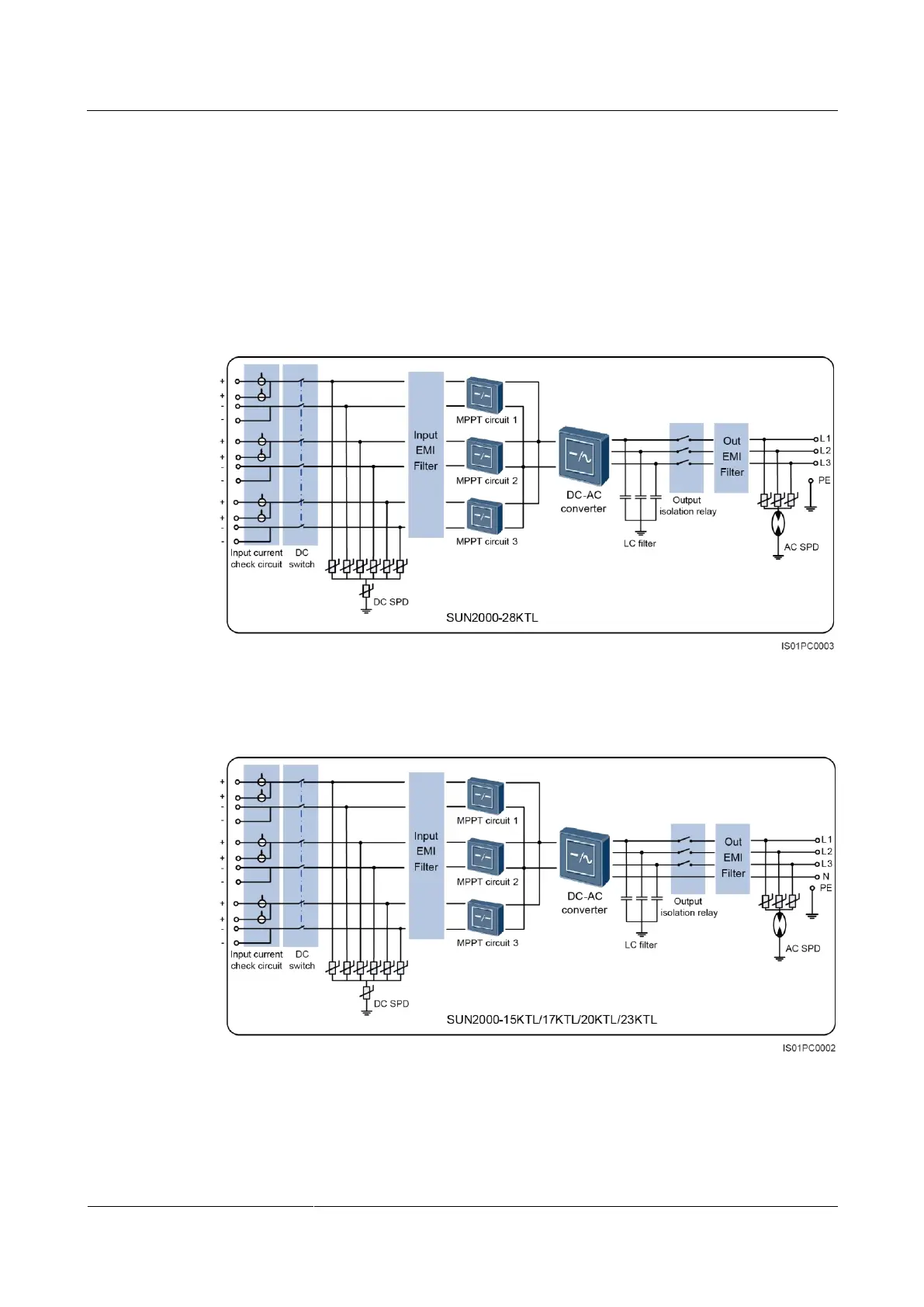

Figure 2-10 Conceptual diagram for the SUN2000-28KTL
Figure 2-11 Conceptual diagram for the SUN2000-15KTL, SUN2000-17KTL, SUN2000-20KTL,
and SUN2000-23KTL

Huawei SUN2000-20KTL Specifications

General

Max. efficiency	98.6%
Rated AC output power	20, 000 W
Max. apparent power	22, 000 VA
No. of MPP trackers	2
Max. input voltage	1100 V
Protection degree	IP65
Max. DC Power	30, 000 W
Start Voltage	200 V
Nominal DC Voltage	600 V
Max. Input Current per MPPT	26 A
Nominal AC Grid Frequency	50 Hz / 60 Hz
Adjustable Power Factor Range	0.8 leading to 0.8 lagging
Total Harmonic Distortion (THD)	<3%
DC Reverse-Polarity Protection	Yes
AC Overcurrent Protection	Yes
AC Short-Circuit Protection	Yes
DC Insulation Resistance Detection	Yes
Residual Current Monitoring	Yes
AC Overvoltage Protection	Yes
DC Switch	Yes
Cooling Method	Natural Convection
AC output voltage	220 V / 380 V, 230 V / 400 V
MPPT operating voltage range	200 V - 1000 V
Operating temperature range	-25°C to +60°C
Relative Humidity	0% - 100%
Operating Altitude	Up to 4000 m
Surge Protection	Type II DC & AC
