Step 3 Check the route of the AC output power cable.

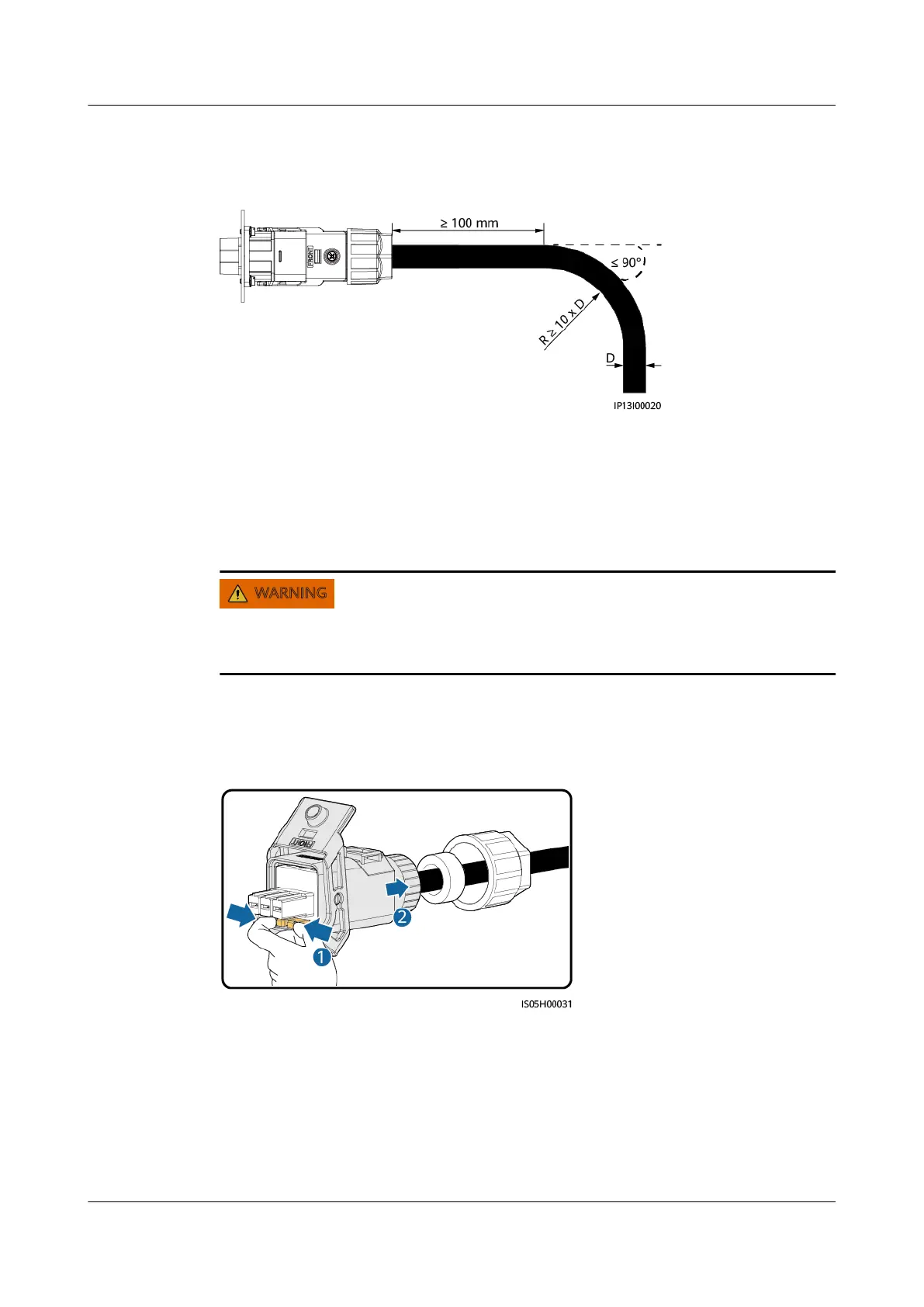

Figure 5-11 Cabling requirements
----End
Follow-up Procedure
WARNING
Before removing the AC connector, ensure that the DC switch at the bottom of the
SUN2000 and all the switches connected to the SUN2000 are OFF.
To remove the AC connector from the SUN2000, perform the operations in reverse
order.
Figure 5-12 Removing a plug insert
