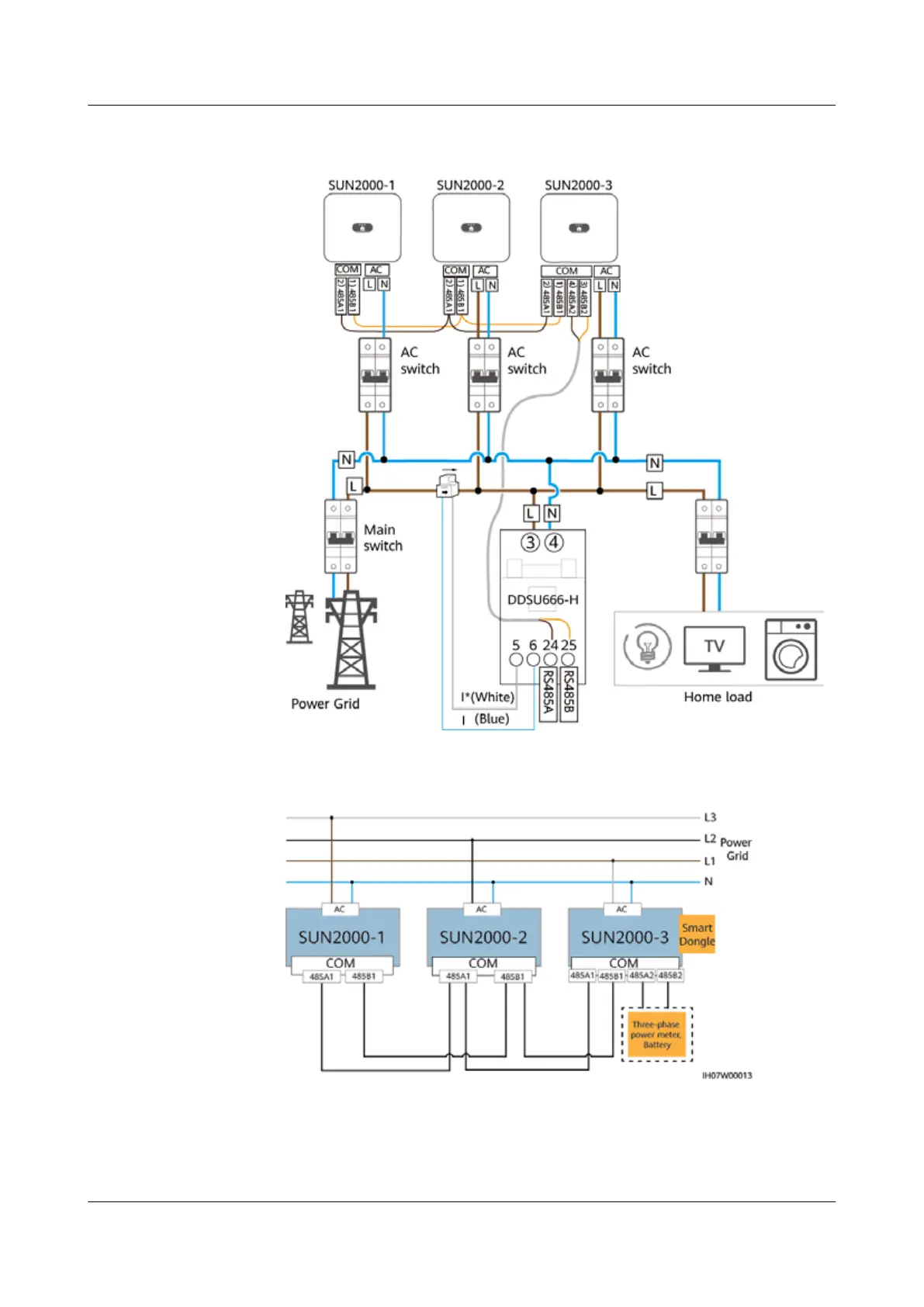

Figure 5-22 Connecting cables to the smart power sensor (in-phase grid
connection)
– Balanced three-phase grid connection
Figure 5-23 Balanced three-phase grid connection
