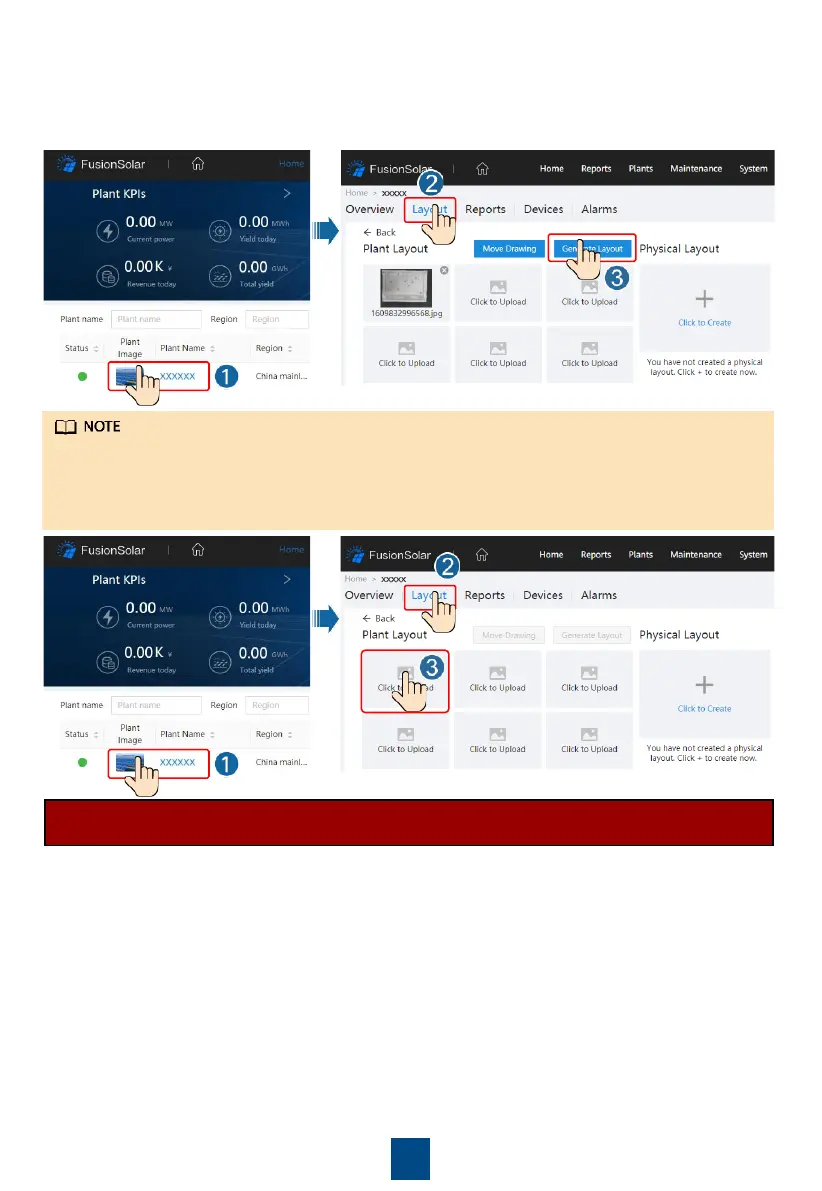

2. Log in to https://intl.fusionsolar.huawei.com to access the WebUI of the FusionSolar Smart
PV Management System. On the Home page, click the plant name to go to the plant page.
Select layout. Choose Generate layout, and create a physical layout as prompted. You can
also manually create a physical location layout.
You can also upload the physical layout template photo on the WebUI as follows: Log in to
https://intl.fusionsolar.huawei.com to access the WebUI of the FusionSolar Smart PV
Management System. On the Home page, click the plant name to go to the plant page. Select
layout. Choose Click to Upload, and upload the physical layout template photo.
a. Log in to the FusionSolar app. On the Device commissioning screen, choose
Maintenance > Optimizer layout. The Optimizer layout screen is displayed.
b. Tap the blank area. The Identify image and Add PV modules buttons are displayed. You
can use either of the following methods to perform operations as prompted:
• Method 1: Tap Identify image and upload the physical layout template photo to
complete the optimizer layout. (The optimizers that fail to be identified need to be
manually bound.)
• Method 2: Tap Add PV modules to manually add PV modules and bind the optimizers
to the PV modules.
1. If the solar inverter is not connected to the FusionSolar Smart PV Management System,
access the Device commissioning screen (Refer to 7.1 Device Commissioning.) on the
FusionSolar app to set the physical layout of Smart PV Optimizers.
Scenario 2: Setting on the Solar Inverter Side (Solar Inverter Not Connected to
the Management System)
To Next Page
