Huawei SUN2000 3,6KTL-L1 User Manual

6

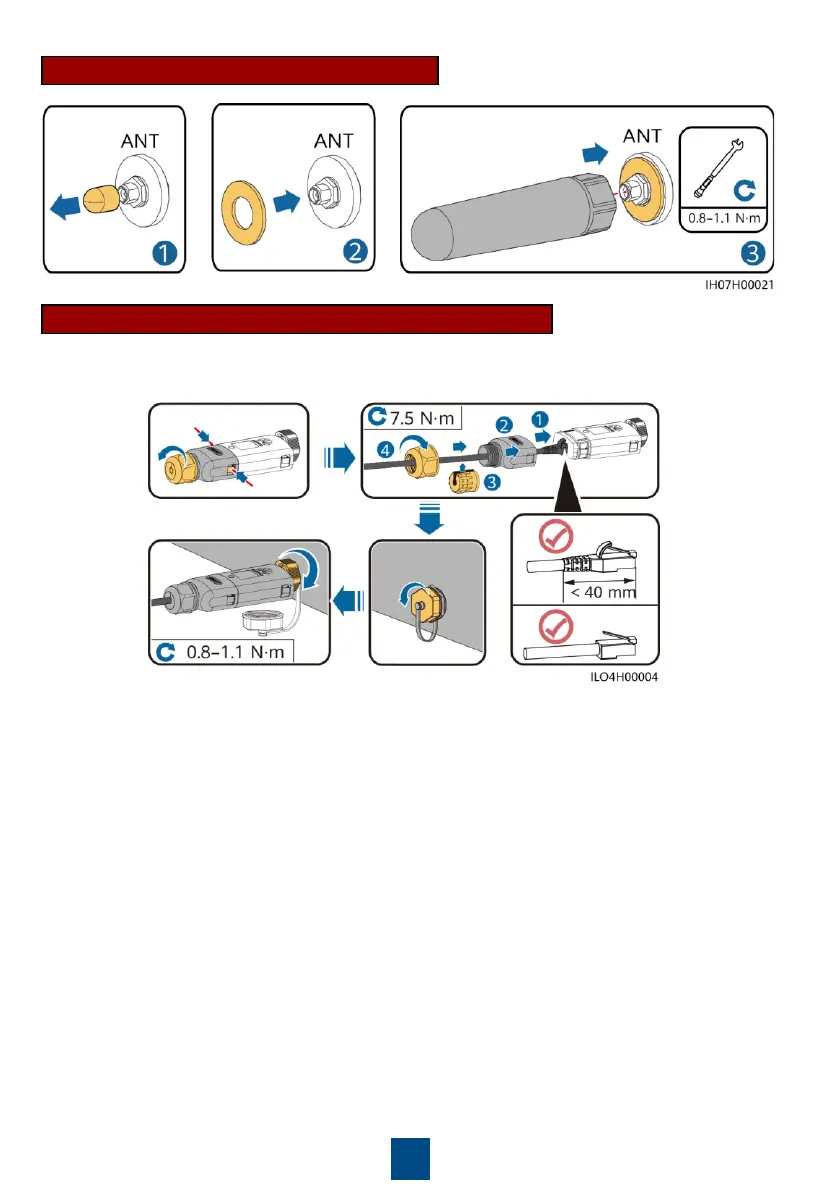

Ensure that the WLAN antenna is
installed securely.
WLAN Antenna (WLAN Communication)
(Optional) WLAN-FE Smart Dongle (FE Communication)
You are advised to use a Cat 5e outdoor shielded network cable (outer diameter < 9 mm;
internal resistance ≤ 1.5 ohms/10 m) and shielded RJ45 connectors.
4G/FE

Huawei SUN2000 3,6KTL-L1 Specifications

General

Max. efficiency	98.4%
Dimensions (W x H x D)	365 x 365 x 156 mm
Operating temperature range	-25°C to +60°C
IP rating	IP65
Topology	Transformerless
Nominal AC voltage	230 V
Max. input voltage	600 V
Max. input current per MPPT	11 A
Number of MPP trackers	2
Max. short-circuit current per MPPT	15 A
Cooling	Natural convection
Maximum Input Current	22 A
Rated AC power	3600 W
Max. apparent power	3600 VA
Communication interfaces	RS485
MPP voltage range	90 V - 560 V
Maximum Output Power	3600 W
MPPT Voltage Range	90 V to 560 V
