Huawei SUN2000-3KTL-M1 Quick Guide

1
1
Product Description
Copyright © Huawei Technologies Co., Ltd. 2020. All
rights reserved.
1. The information in this document is subject to change due to version upgrades or other
reasons. Every effort has been made in the preparation of this document to ensure accuracy
of the contents, but all statements, information, and recommendations in this document do
not constitute a warranty of any kind, express or implied. You can download this document
by scanning the QR code.
2. Before installing the device, read the user manual carefully to get familiar with product
information and safety precautions.
3. Only qualified and trained electrical technicians are allowed to operate the device. Operation
personnel should understand the composition and working principles of the grid-tied PV
power system and local regulations.
4. Before installing the device, check that the package contents are intact and complete against
the packing list. If any damage is found or any component is missing, contact your dealer.
5. Use insulating tools when installing the device. For personal safety, wear proper personal
protective equipment (PPE).
6. Huawei shall not be liable for any consequences caused by the violation of the storage,
transportation, installation, and operation regulations specified in this document and the user
manual.
1

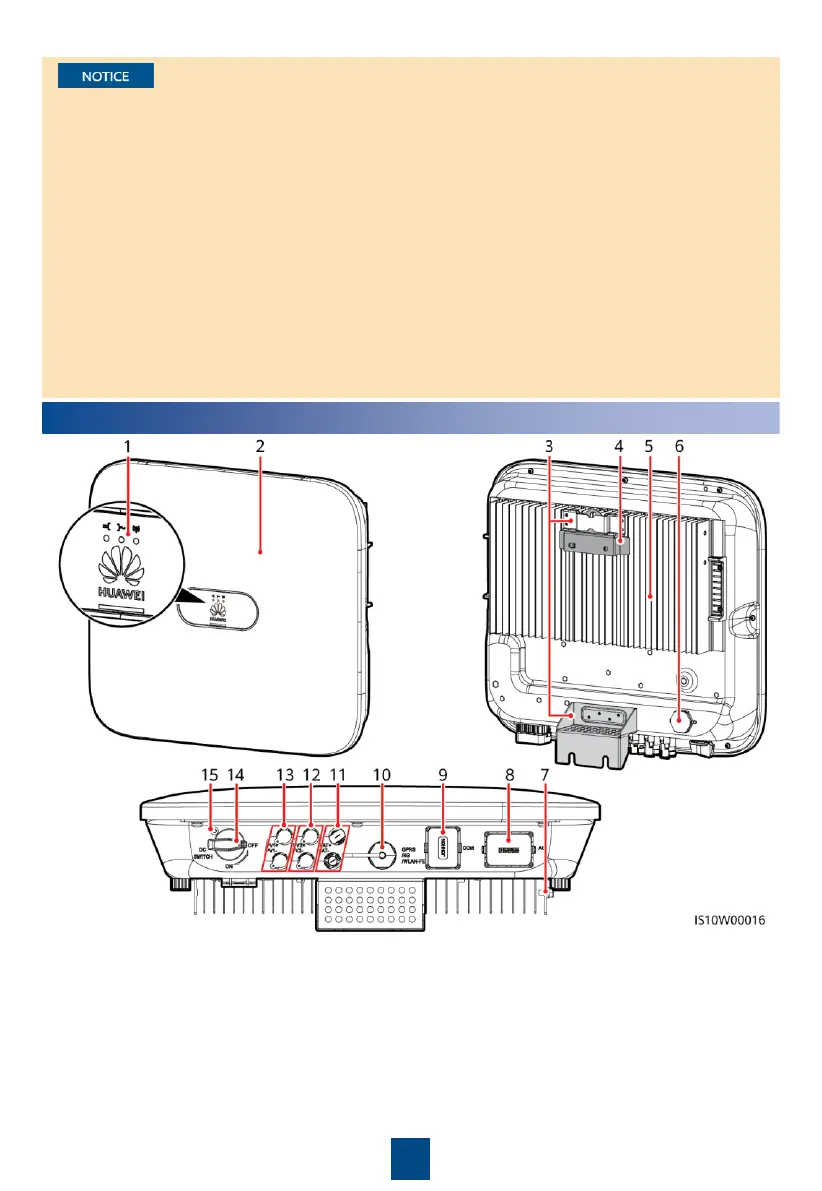

Product Description
(1) LED
(2) Front panel
(3) Hanging kit
(4
) Mounting bracket
(5
) Heat sink
(6
) Ventilation valve
(7
) Ground screw
(8
) AC output port (AC)
(9
) Communication port (COM)
(10
) Smart Dongle port (GPRS/4G/WLAN-FE)
(11
) Battery terminals (BAT+/BAT–)
(12
) DC input terminals (PV2+/PV2–)
(13
) DC input terminals (PV1+/PV1–)
(14) DC switch (DC SWITCH)
(15)
Screw hole for the DC switch

Huawei SUN2000-3KTL-M1 Specifications

General

Model	SUN2000-3KTL-M1
Type	String Inverter
Max. DC Input Voltage	600 V
MPPT Voltage Range	90 V - 560 V
Rated AC Output Power	3000 W
Max. AC Output Power	3300 W
Nominal AC Voltage	220 V / 230 V / 240 V
AC Voltage Range	180 V - 280 V
AC Output Frequency	50 Hz / 60 Hz
Max. Efficiency	98.6%
MPPT Trackers	2
DC Inputs per MPPT	1
Max. Input Current per MPPT	11 A
Operating Temperature Range	-25°C to +60°C
Cooling Method	Natural Convection
Protection Degree	IP65
Max. DC Input Power	4500 W
Communication	RS485
Dimensions (W x H x D)	365 mm x 365 mm x 156 mm
