Huawei SUN2000-3KTL-M1 Quick Guide

4
•
Connect cables in accordance with the local installation laws and regulations.
•
Before connecting cables, ensure that the DC switch on the inverter and all the switches
connecting to the inverter are set to OFF. Otherwise, the high voltage of the inverter may
result in electric shocks.
Preparing for Installation
3.1
3
Electrical Connections
Prepare an anti-theft lock suitable for the lock hole diameter (Ф8 mm) and ensure that the lock
can be installed successfully. An outdoor waterproof lock is recommended.

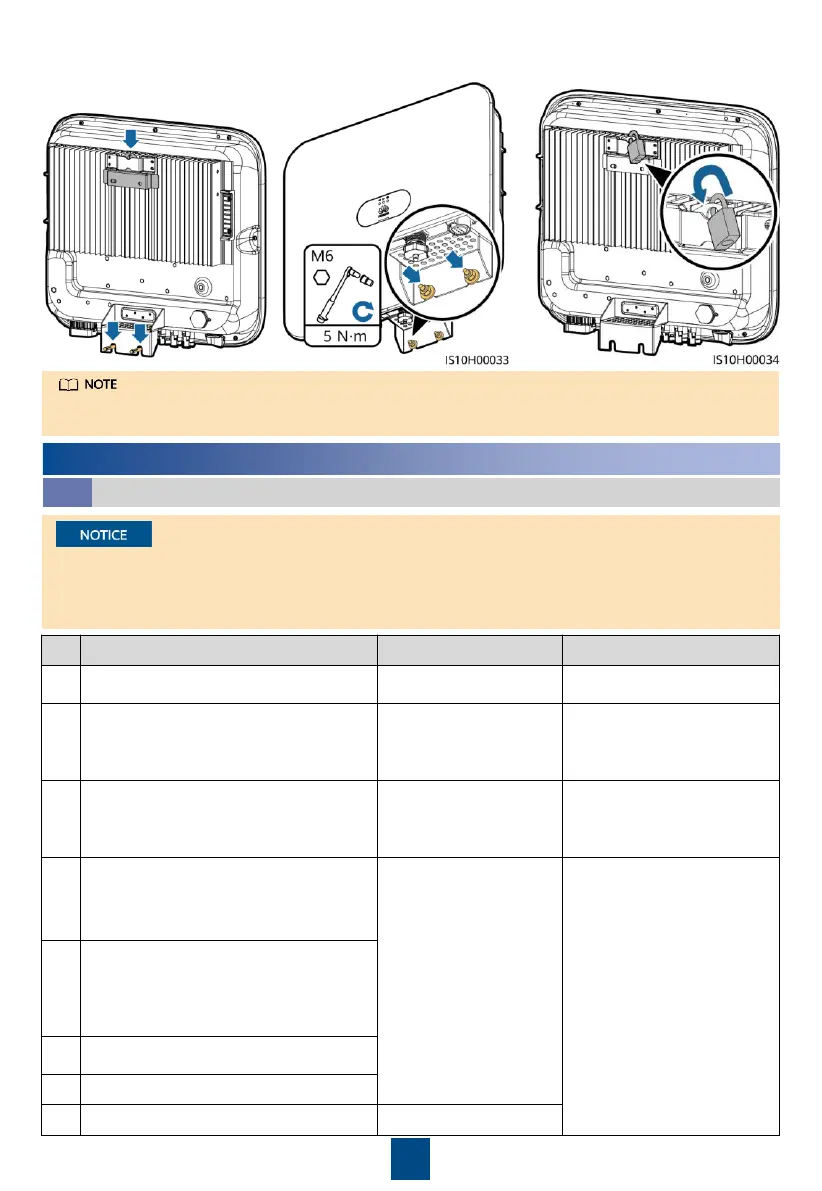

3. Install the inverter on the mounting bracket.
4. (Optional) Install an anti-theft lock.
No.
Item
Type
Specifications
1
PE cable
Single
-core outdoor
copper cable
Conductor cross
-sectional
area ≥ 4
mm
2
2
AC output power cable
O
utdoor copper cable
•
Conductor cross-
sectional area: 4–6 mm
2
•
Cable outer diameter:
10–21 mm
3
DC input power cable and (optional)
battery cable
Standard outdoor PV
cable in the
industry
(recommended model:
PV1
-F)
•
Conductor cross-
sectional area: 4–6 mm
2
•
Cable outer diameter:
5.5–9 mm
4
(Optional) RS485 communications
cable (used
to cascade inverters or
connect
to the RS485 signal port on
the
SmartLogger)
Two
-core outdoor
shielded twisted pair
cable
•
Conductor cross-
sectional area: 0.2–1
mm
2
Note
: When devices such
as the Smart Power
Sensor and the energy
storage device are both
connected to the
inverter, use 0.2–0.5
mm
2
cords.
•
Cable outer diameter: 4
–
11 mm
5
(Optional) RS485 communications
cable (used to connect to the RS485
signal port on devices such as the
Smart Power Sensor and the energy
storage device
)
6
(Optional) Rapid shutdown switch
signal cable
7
(Optional) Grid scheduling signal cable
8
(Optional) Grid scheduling signal cable
Five
-
core outdoor cable

Huawei SUN2000-3KTL-M1 Specifications

General

Model	SUN2000-3KTL-M1
Type	String Inverter
Max. DC Input Voltage	600 V
MPPT Voltage Range	90 V - 560 V
Rated AC Output Power	3000 W
Max. AC Output Power	3300 W
Nominal AC Voltage	220 V / 230 V / 240 V
AC Voltage Range	180 V - 280 V
AC Output Frequency	50 Hz / 60 Hz
Max. Efficiency	98.6%
MPPT Trackers	2
DC Inputs per MPPT	1
Max. Input Current per MPPT	11 A
Operating Temperature Range	-25°C to +60°C
Cooling Method	Natural Convection
Protection Degree	IP65
Max. DC Input Power	4500 W
Communication	RS485
Dimensions (W x H x D)	365 mm x 365 mm x 156 mm
