Huawei SUN2000-3KTL-M1 Quick Guide

5

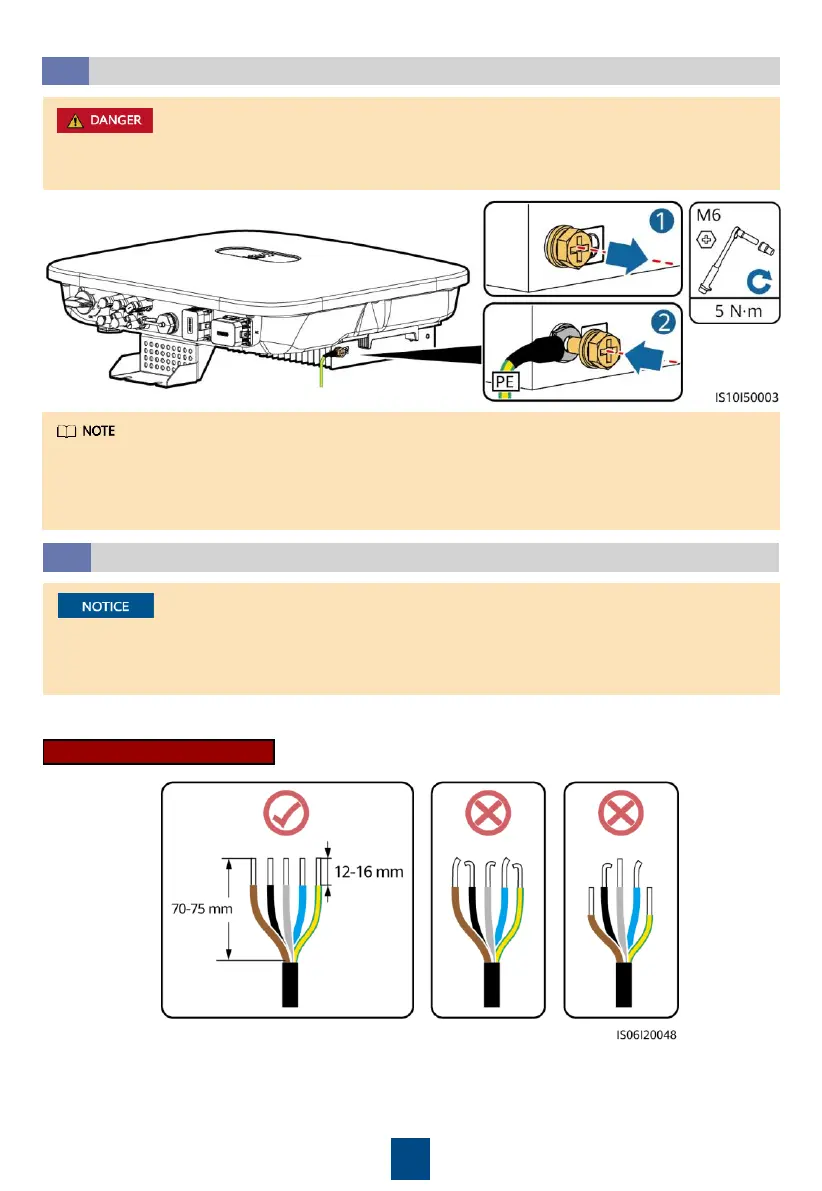

Installing the PE Cable
3.2
Do not connect the neutral wire to the enclosure as a PE cable. Otherwise, electric shocks may
occur.
•
The PE point at the AC output port is used only as a PE equipotential point, and cannot
substitute for the PE point on the enclosure.
•
It is recommended that silica gel or paint be used around the ground terminal after the PE
cable is connected.
Installing the AC Output Power Cable
3.3
Ensure that the protection layer of the AC output power cable is inside the connector, the core
wires are totally inserted into the cable hole, and the cable is connected securely. Failing to do
so may cause device malfunction or damage.
1. Connect the AC output power cable to the AC connector.
Stripping requirements

Huawei SUN2000-3KTL-M1 Specifications

General

Model	SUN2000-3KTL-M1
Type	String Inverter
Max. DC Input Voltage	600 V
MPPT Voltage Range	90 V - 560 V
Rated AC Output Power	3000 W
Max. AC Output Power	3300 W
Nominal AC Voltage	220 V / 230 V / 240 V
AC Voltage Range	180 V - 280 V
AC Output Frequency	50 Hz / 60 Hz
Max. Efficiency	98.6%
MPPT Trackers	2
DC Inputs per MPPT	1
Max. Input Current per MPPT	11 A
Operating Temperature Range	-25°C to +60°C
Cooling Method	Natural Convection
Protection Degree	IP65
Max. DC Input Power	4500 W
Communication	RS485
Dimensions (W x H x D)	365 mm x 365 mm x 156 mm
