Huawei SUN2000-3KTL-M1 Quick Guide

20

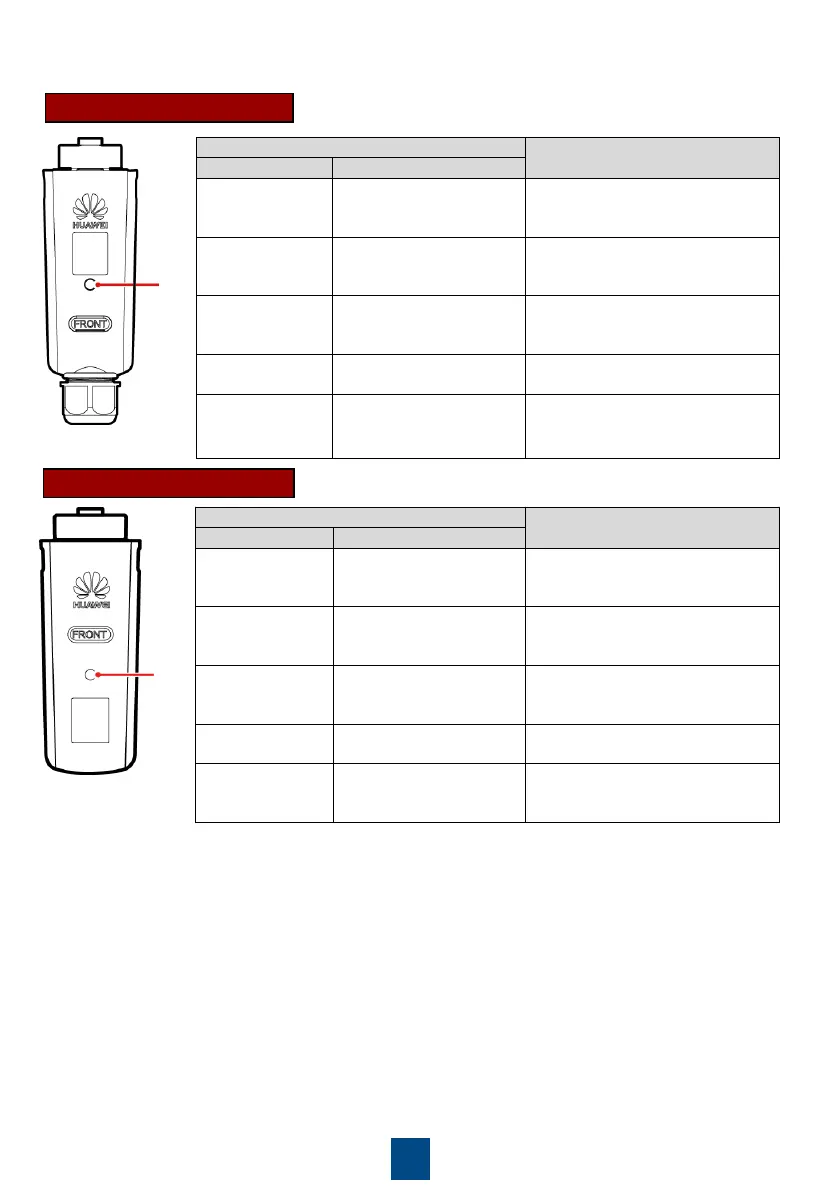

7. (Optional) Observe the LED to check the operating status of the Smart Dongle.
LED
LED
Description
Color
Status
Yellow (blinking
green and red
simultaneously)
Steady on
The Dongle is secured and
powered on.
Red
Blinking at short
intervals (on for 0.2s
and then off for 0.2s)
The parameters for connecting
to the router are to be set.
Green
Blinking at long
intervals (on for 0.5s
and then off for 0.5s)
Connecting to the router
Green
Steady on
Successfully connected to the
management system.
Green
Blinking at short
intervals (on for 0.2s
and then off for 0.2s)
The inverter is communicating
with the management system
through the Dongle.
WLAN-FE Smart Dongle
LED
LED
Description
Color
Status
Yellow (blinking
green and red
simultaneously)
Steady on
The Dongle is secured and
powered on.
Green
Blinking in a 2
-second
cycle (on for 0.1s and
then off for 1.9s)
Dialing (duration < 1 min)
Green
Blinking at long intervals
(on for 1s and then off
for 1s)
The dial
-up connection is set up
successfully (duration < 30s).
Green
Steady on
Successfully connected to the
management system.
Green
Blinking at short
intervals (on for 0.2s and
then off for 0.2s)
The inverter is communicating
with the management system
through the Dongle.
4G Smart Dongle

Huawei SUN2000-3KTL-M1 Specifications

General

Model	SUN2000-3KTL-M1
Type	String Inverter
Max. DC Input Voltage	600 V
MPPT Voltage Range	90 V - 560 V
Rated AC Output Power	3000 W
Max. AC Output Power	3300 W
Nominal AC Voltage	220 V / 230 V / 240 V
AC Voltage Range	180 V - 280 V
AC Output Frequency	50 Hz / 60 Hz
Max. Efficiency	98.6%
MPPT Trackers	2
DC Inputs per MPPT	1
Max. Input Current per MPPT	11 A
Operating Temperature Range	-25°C to +60°C
Cooling Method	Natural Convection
Protection Degree	IP65
Max. DC Input Power	4500 W
Communication	RS485
Dimensions (W x H x D)	365 mm x 365 mm x 156 mm
