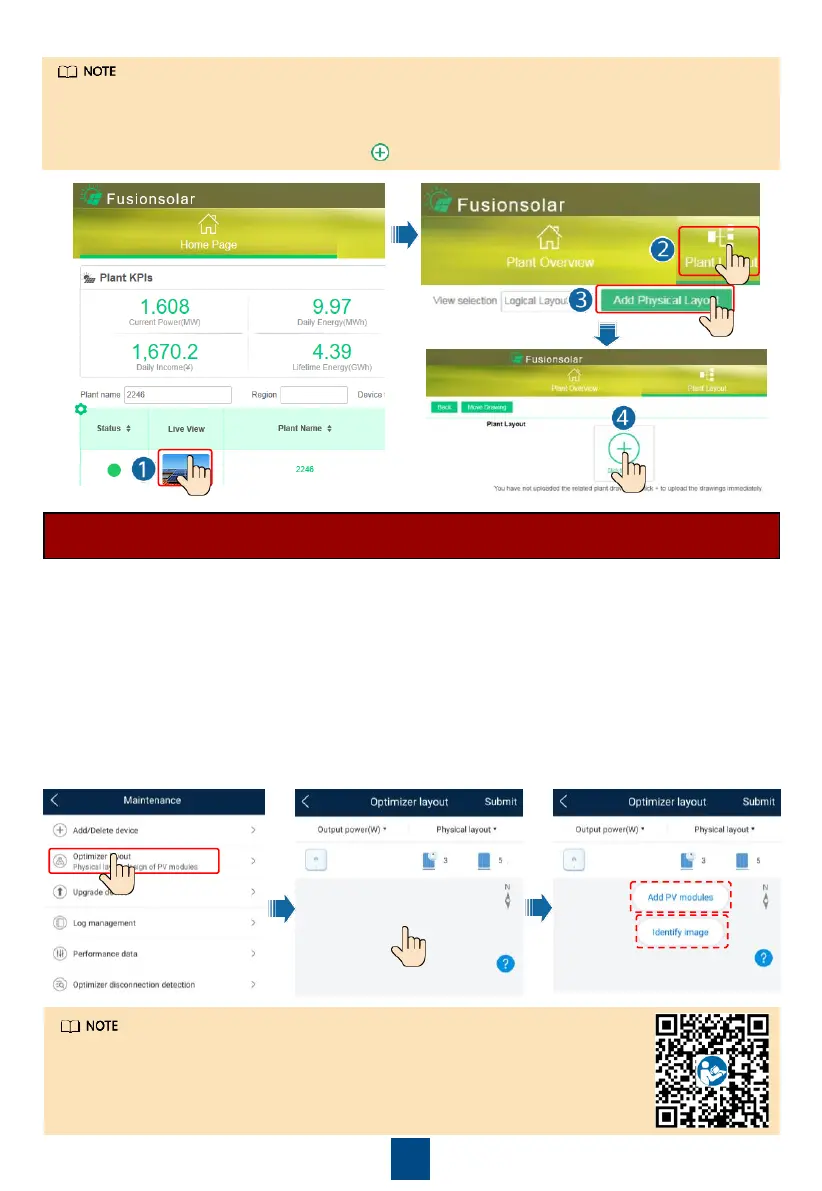

You can also upload the physical layout template photo on the WebUI as follows: Log in to
https://intl.fusionsolar.huawei.com to access the WebUI of the FusionSolar Smart PV
Management System. On the home page, click the plant name to go to the plant page. Choose
Plant layout, click Add Physical Layout > , and upload the physical layout template photo.
a. Log in to the FusionSolar app. On the Device commissioning screen, choose Maintenance
> Optimizer layout. The Optimizer layout screen is displayed.
b. Tap the blank area. The Identify image and Add PV modules buttons are displayed. You
can use either of the following methods to perform operations as prompted:
• Method 1: Tap Identify image and upload the physical layout template photo to complete
the optimizer layout. (The optimizers that fail to be identified need to be manually bound.)
• Method 2: Tap Add PV modules to manually add PV modules and bind the optimizers to
the PV modules.
1. If the solar inverter is not connected to the FusionSolar Smart PV Management System,
access the Device commissioning screen (Refer to 7.1 Device Commissioning.) on the
FusionSolar app to set the physical layout of Smart PV Optimizers.
Scenario 2: Setting on the Solar Inverter Side (Solar Inverter Not Connected to the
Management System)
For details about the physical layout of optimizers on the FusionSolar app and
FusionSolar WebUI, see the
FusionSolar App Quick Guide
. You can scan the QR
code to download the app.
