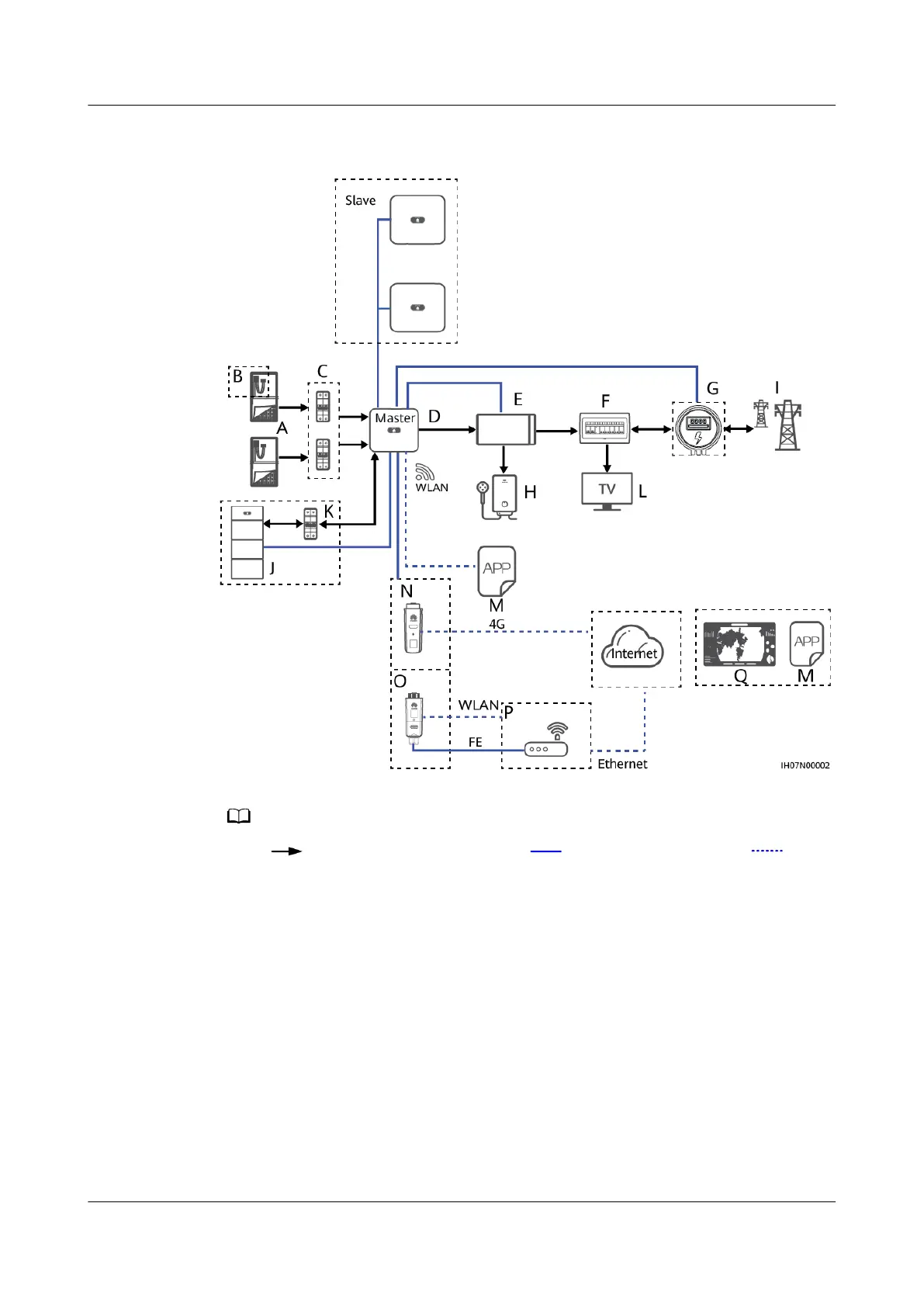

Figure 2-3 SUN2000 cascading scenario (dashed boxes indicate optional
conguration)
● indicates the power ow direction, indicates the signal line, and
indicates the wireless communication.
● In the SUN2000 cascading scenario, the master and slave solar inverters are both
SUN2000-(2KTL-6KTL)-L1, and a maximum of three SUN2000s can be cascaded.
● In the SUN2000 cascading scenario, only one smart power sensor (G in the
gure) can
be connected to the master inverter.
● In the SUN2000 cascading scenario, the SUN2000s connected to the power grid must
meet the local power grid requirements.
(A) PV string
(B) Smart PV optimizer (C) DC switch
(D) SUN2000 (E) Backup (F) Residential PDU
(G) Smart Power Sensor (H) Important Load (I) Power grid
(J) Battery (K) Battery switch (L) Household load
SUN2000-(2KTL-6KTL)-L1
User Manual 2 Product Introduction
Issue 10 (2023-02-13) Copyright © Huawei Technologies Co., Ltd. 15
