(1) LED indicators (2) Front panel
(3) Hanging kit (4) Mounting bracket
(5) Heat sink (6) Ventilation valve
(7) DC switch locking screw hole
a
(8) DC switch
b
(DC SWITCH)
(9) DC input terminals (PV1+/PV1–) (10) DC input terminals (PV2+/PV2–)
(11) Battery terminals (BAT+/BAT–) (12) Smart Dongle port (4G/FE)
(13) Antenna port (ANT) (14) Communications port (COM)
(15) AC output port (AC) (16) Ground point
NO TE
● Note a: The DC switch locking screw is used to lock the DC switch to prevent accidental
startup. It is delivered with the SUN2000.
● Note b: DC input terminals PV1 and PV2 are controlled by the DC switch.

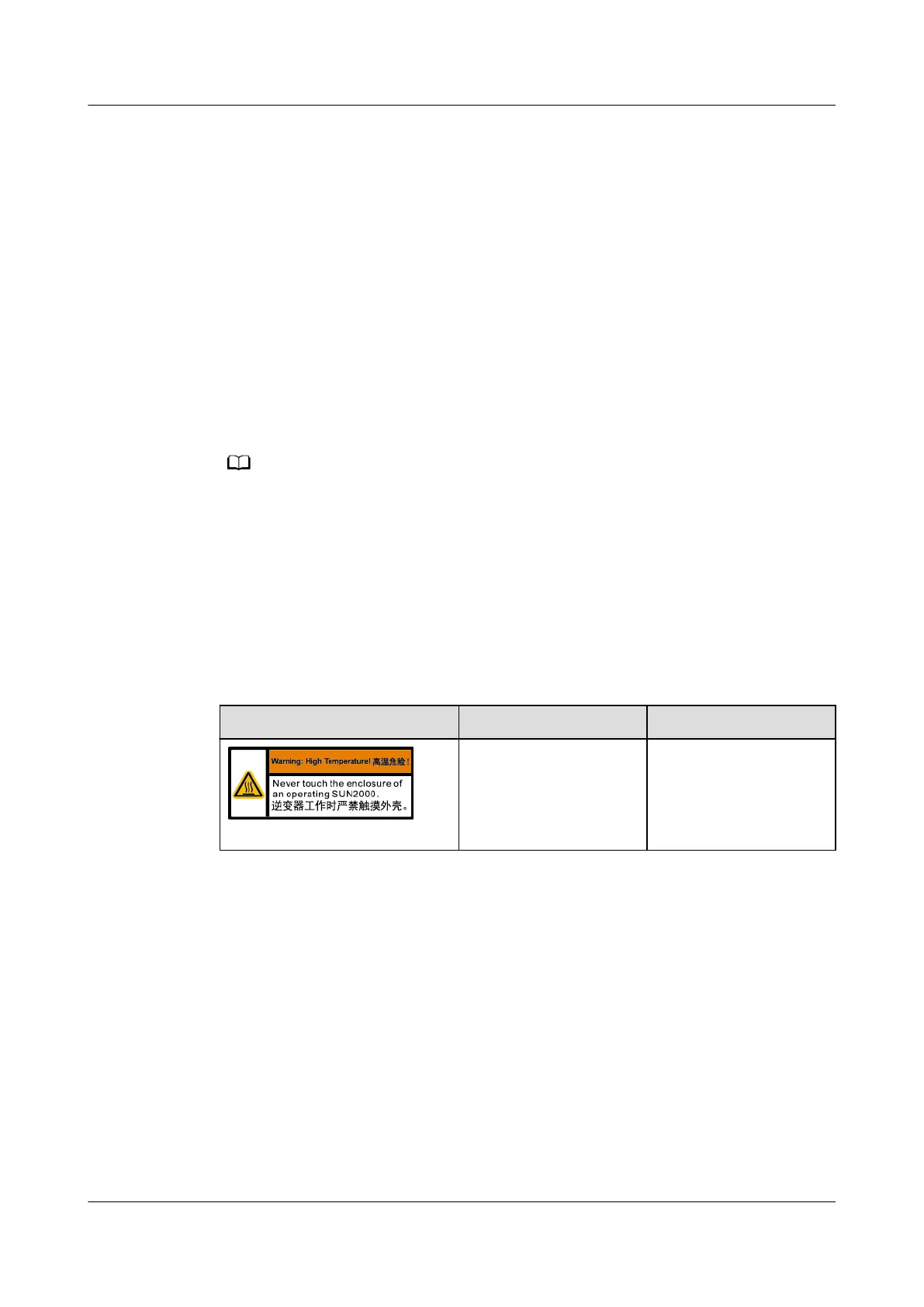

2.3 Label Description
Enclosure Labels
Table 2-2 Enclosure label description
Icon
Name Meaning
Burn warning Do not touch a
running SUN2000
because the enclosure
is hot when the
SUN2000 is running.
