Communication Networking Mode
NO TE
The smart power sensor and Smart Dongle must be connected to the same SUN2000.
● Single SUN2000 scenarios

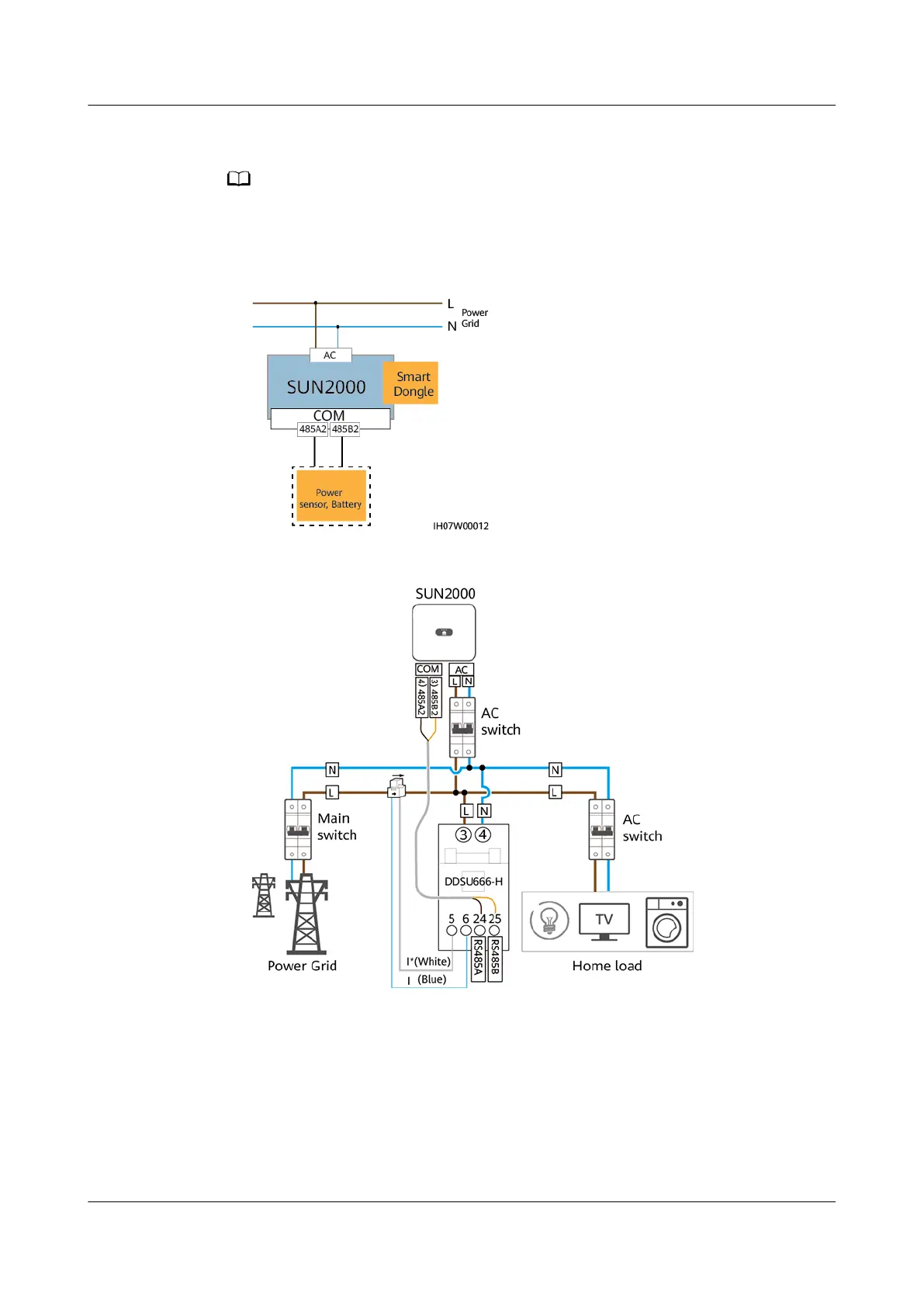

Figure 5-19 Single SUN2000
Figure 5-20 Connecting cables to the smart power sensor (single SUN2000)
● SUN2000 cascading scenarios
– In-phase grid connection
SUN2000-(2KTL-6KTL)-L1
User Manual 5 Electrical Connection
Issue 10 (2023-02-13) Copyright © Huawei Technologies Co., Ltd. 60
