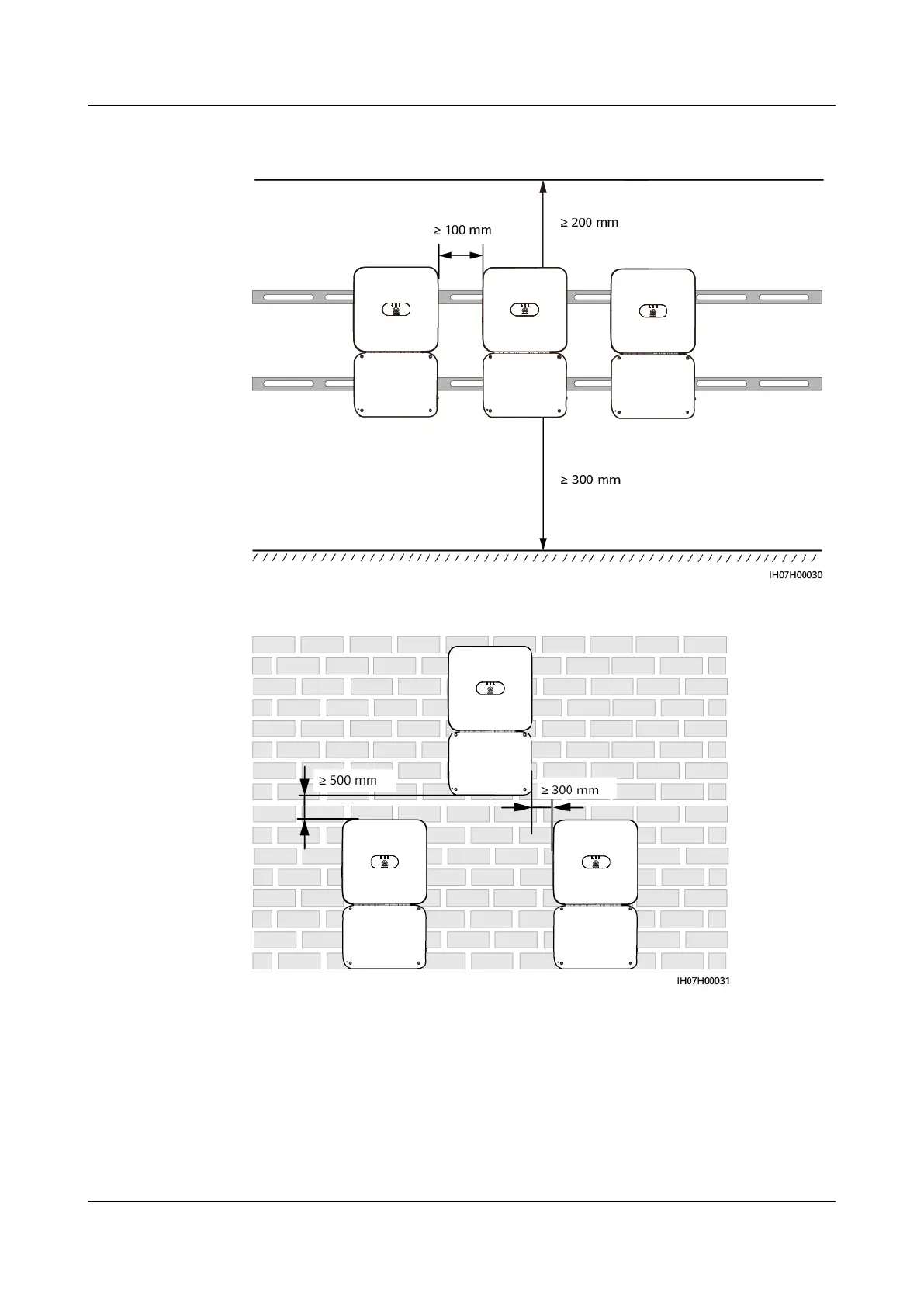

Figure 4-4 Horizontal installation mode (support-mounted, without obstacles
or direct sunlight)
Figure 4-5 Triangle installation mode (recommended)
4.4 Moving the SUN2000
Procedure
Step 1 Stand facing the bottom of the SUN2000, hold the handles on both sides of the
SUN2000, lift the SUN2000 from the packing case, and move it to the specied
installation position.
SUN2000-4.95KTL-JPL1
User Manual 4 Installation
Issue 05 (2023-02-17) Copyright © Huawei Technologies Co., Ltd. 29
