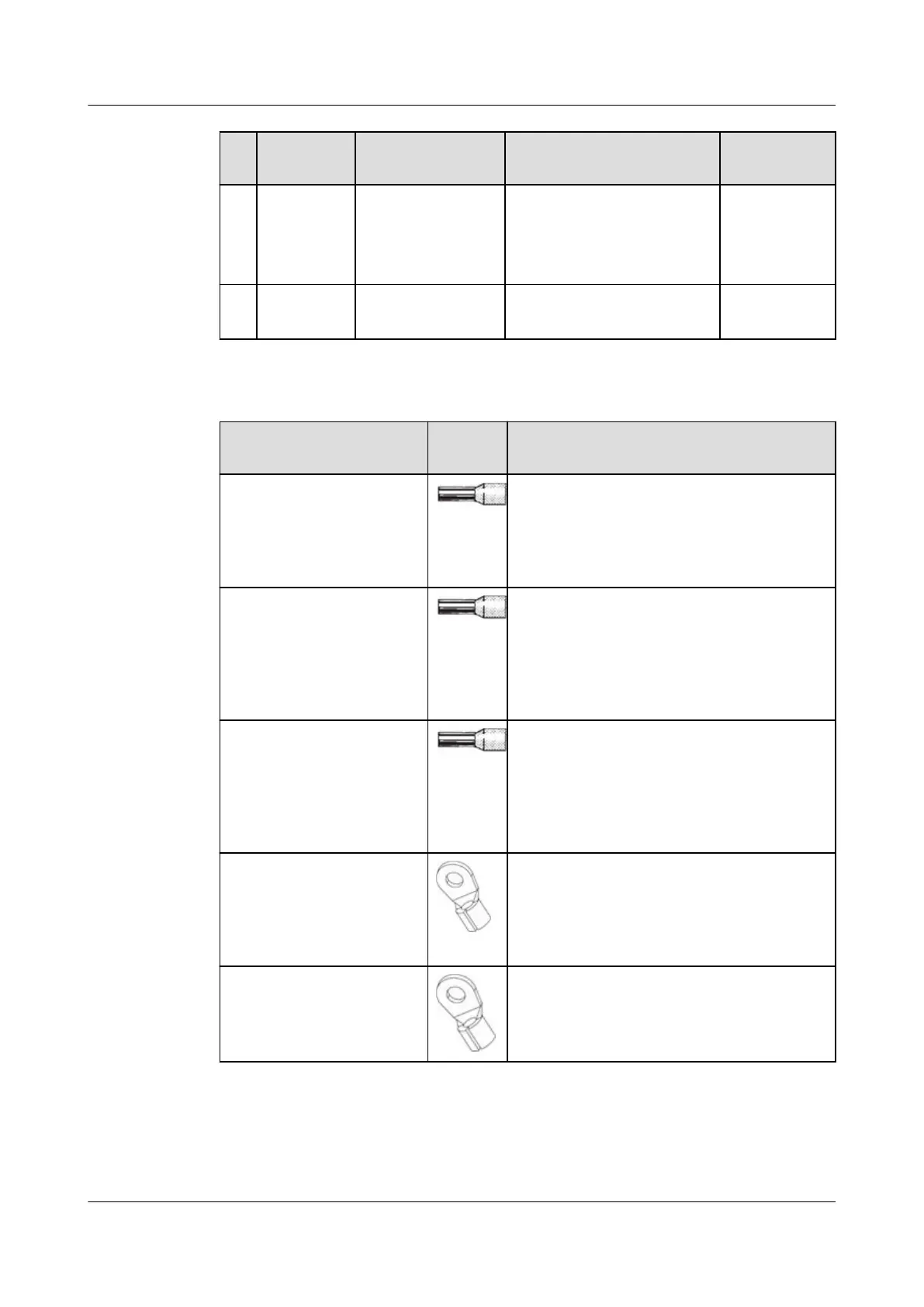

Huawei SUN2000-4.95KTL-JPL1 User Manual

N
o.
Cable Type Recommended
Specications
Source
6 AC output
power
cable
Outdoor copper
cable
● Conductor cross-
sectional area: 5.5–8
mm
2
● Available model: CV
Prepared by
the customer
7 CT cable Four-core
shielded cable
Conductor cross-sectional
area: 0.25–1 mm
2
Delivered
with the CT
Table 5-3 Terminal Description
Type Appear
ance
Function
Common Terminal,
Conductor Cross Section
6 mm
2
, Length 20 mm,
Insertion Depth 12 mm,
Black
PV input cable, Battery power cable, AC
output power cable
Common Terminal, Single
Cord End Terminal,
Conductor Cross Section
1.0 mm
2
, Tin Plating,
Insertion Depth 6 mm,
Yellow
CT cable
Common Terminal, Single
Cord End Terminal,
Conductor Cross Section
10 mm
2
, Length 22 mm,
Insertion Depth 12 mm,
Ivory
AC output power cable
Naked Crimping
Terminal, OT, 6 mm
2
, M4,
Tin Plating, Insulated
Ring Terminal, 12–10
AWG, yellow
PE cable
Naked Crimping
Terminal, OT, 10 mm
2
,
M4, Tin Plating, Naked
Ring Terminal
PE cable
SUN2000-4.95KTL-JPL1
User Manual 5 Electrical Connections
Issue 05 (2023-02-17) Copyright © Huawei Technologies Co., Ltd. 41
