Huawei SUN2000-5KTL-M1 User Manual

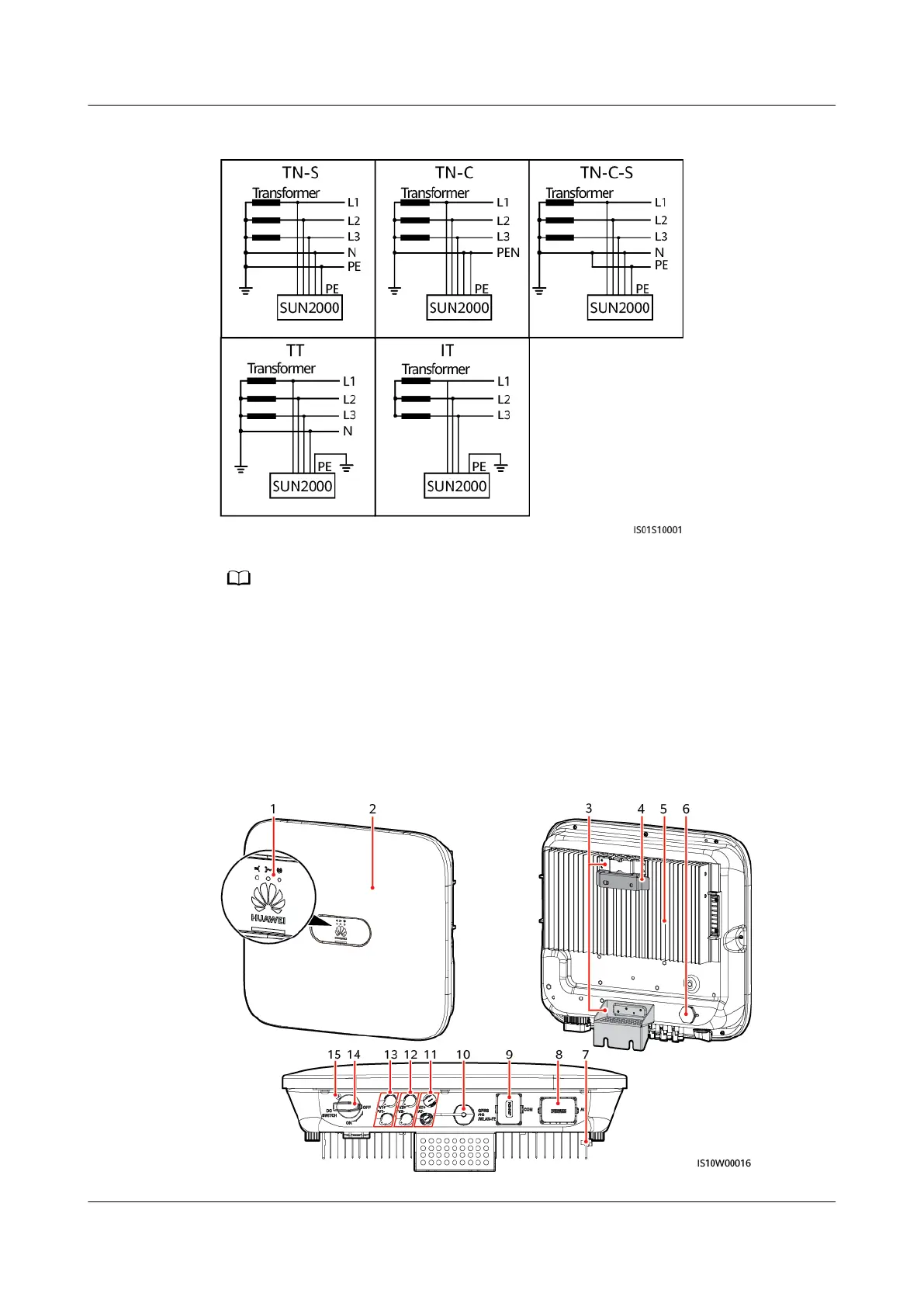

Figure 2-3 Power grid types
NO TE
● When the SUN2000 is used in the TT power grid, the N-to-PE voltage must be less than
30 V.
● When the SUN2000 is used in the IT power grid, set Isolation to Input ungrounded,
with TF.
2.2 Appearance
Figure 2-4 Appearance
SUN2000-(3KTL-10KTL)-M1 Series
User Manual 2 Overview
Issue 17 (2024-01-12) Copyright © Huawei Technologies Co., Ltd. 16

Huawei SUN2000-5KTL-M1 Specifications

General

Max. Efficiency	98.4%
Rated AC Output Power	5000 W
Max. Apparent Power	5500 VA
Max. DC Input Voltage	1100 V
Number of MPPTs	2
Operating Temperature Range	-25°C to +60°C
Start Voltage	200 V
European Efficiency	97.8%
Protection Degree	IP65
Start-up Voltage	200 V
Output Voltage Range	180 V - 280 V
Frequency Range	50 Hz / 60 Hz
Power Factor	0.8 leading ... 0.8 lagging
THD	<3%
Cooling Method	Natural Convection
Max. DC Power	7500 W
Rated AC Voltage	230 V
