Huawei SUN2000-5KTL-M1 - Connecting a Signal Cable to the Smart Backup Box

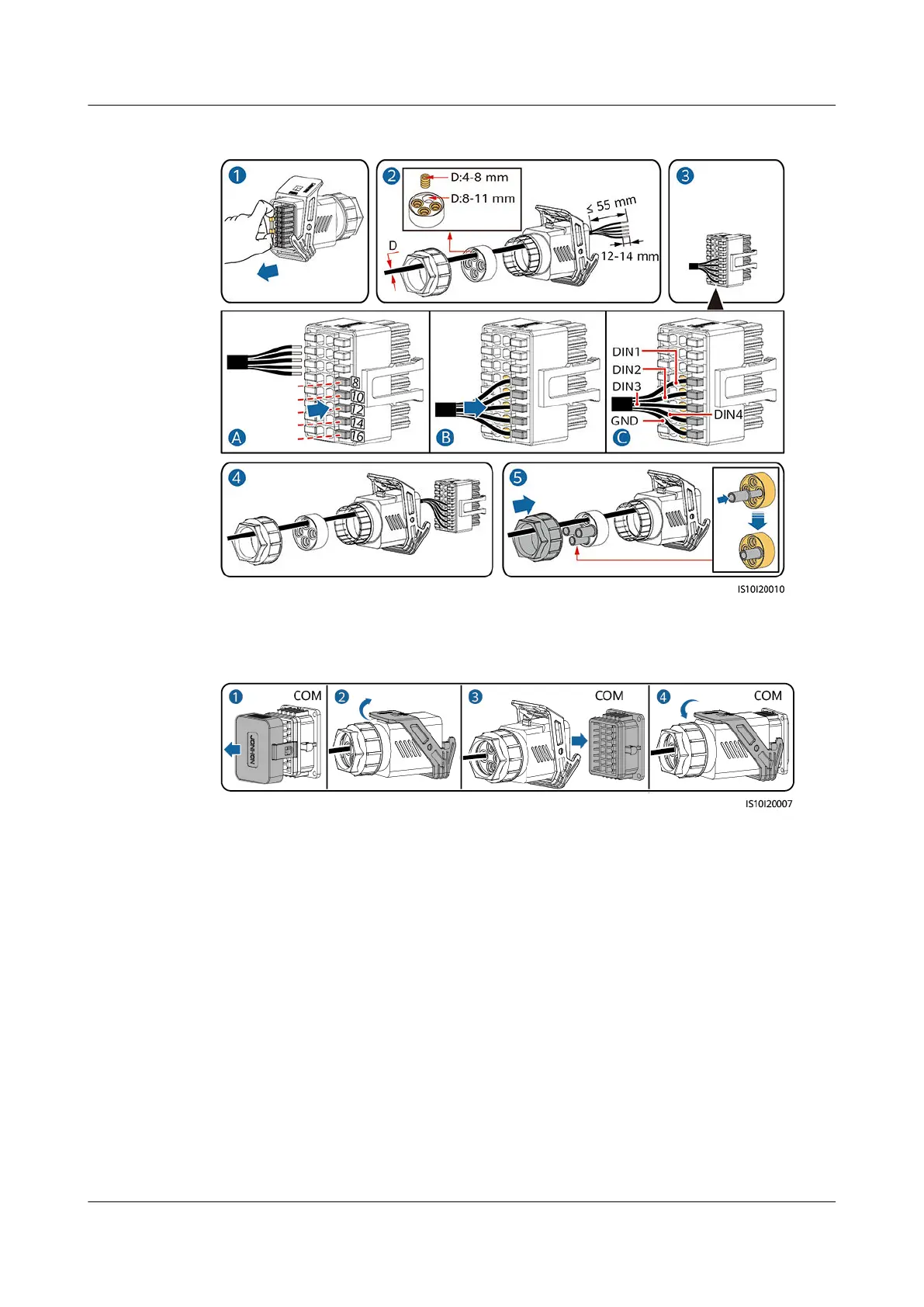

Figure 5-35 Installing the cable
Step 2 Connect the signal cable to the COM port.
Figure 5-36 Securing the signal cable connector
----End
5.8.5 Connecting a Signal Cable to the Smart Backup Box
Procedure
Step 1 Connect the signal cable to the signal cable connector.
SUN2000-(3KTL-10KTL)-M1 Series
User Manual 5 Electrical Connections
Issue 17 (2024-01-12) Copyright © Huawei Technologies Co., Ltd. 70
