Huawei SUN2000-5KTL-M1 - Connecting the Power Grid Scheduling Signal Cable

Figure 5-33 Securing the signal cable connector
----End
5.8.4 Connecting the Power Grid Scheduling Signal Cable
Cable Connection
The following gure shows the cable connections between the inverter and the
Ripple Control Device.

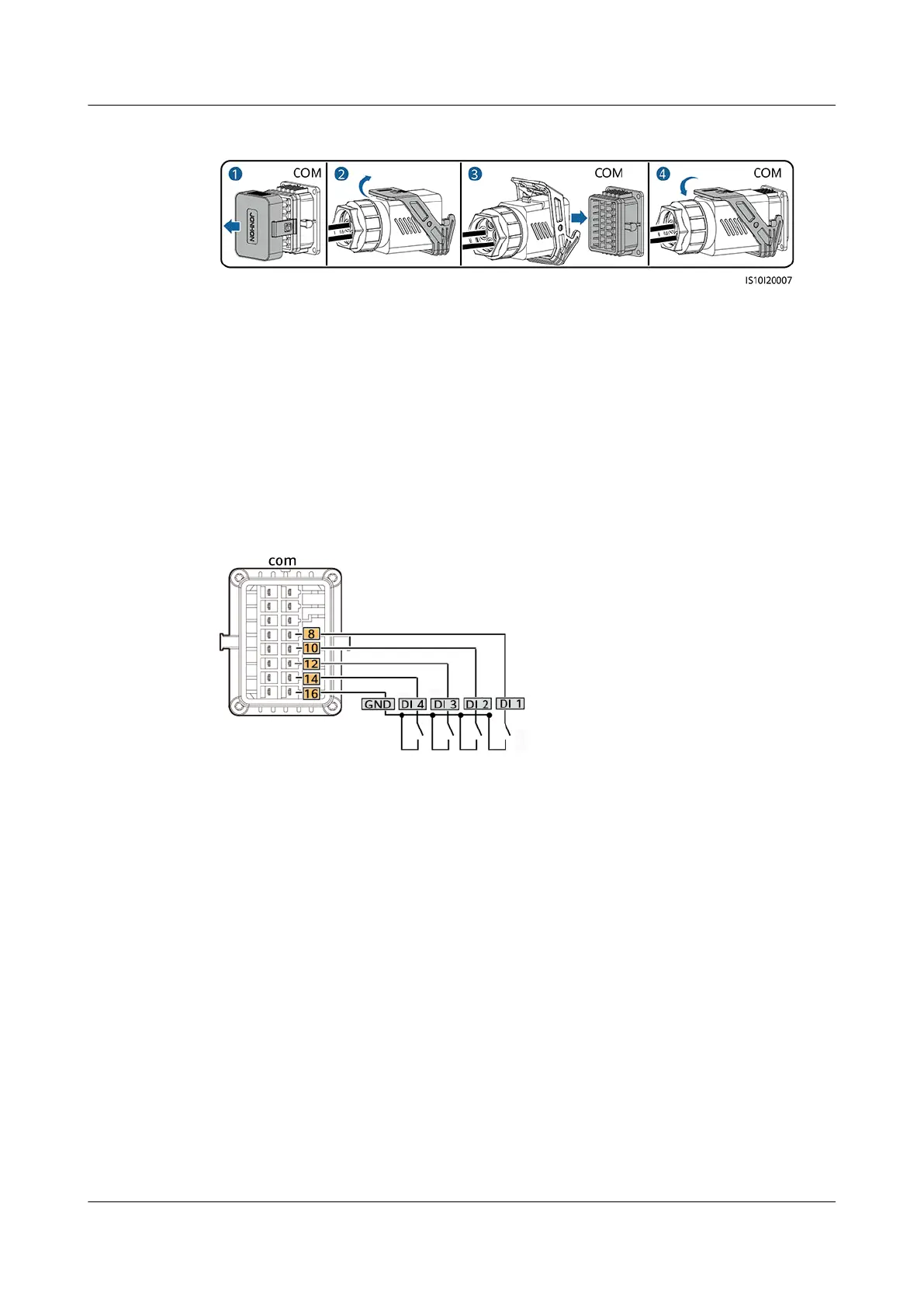

Figure 5-34 Cable connection
Procedure
Step 1 Connect the signal cable to the signal cable connector.
