Huawei SUN2000-5KTL-M1 User Manual

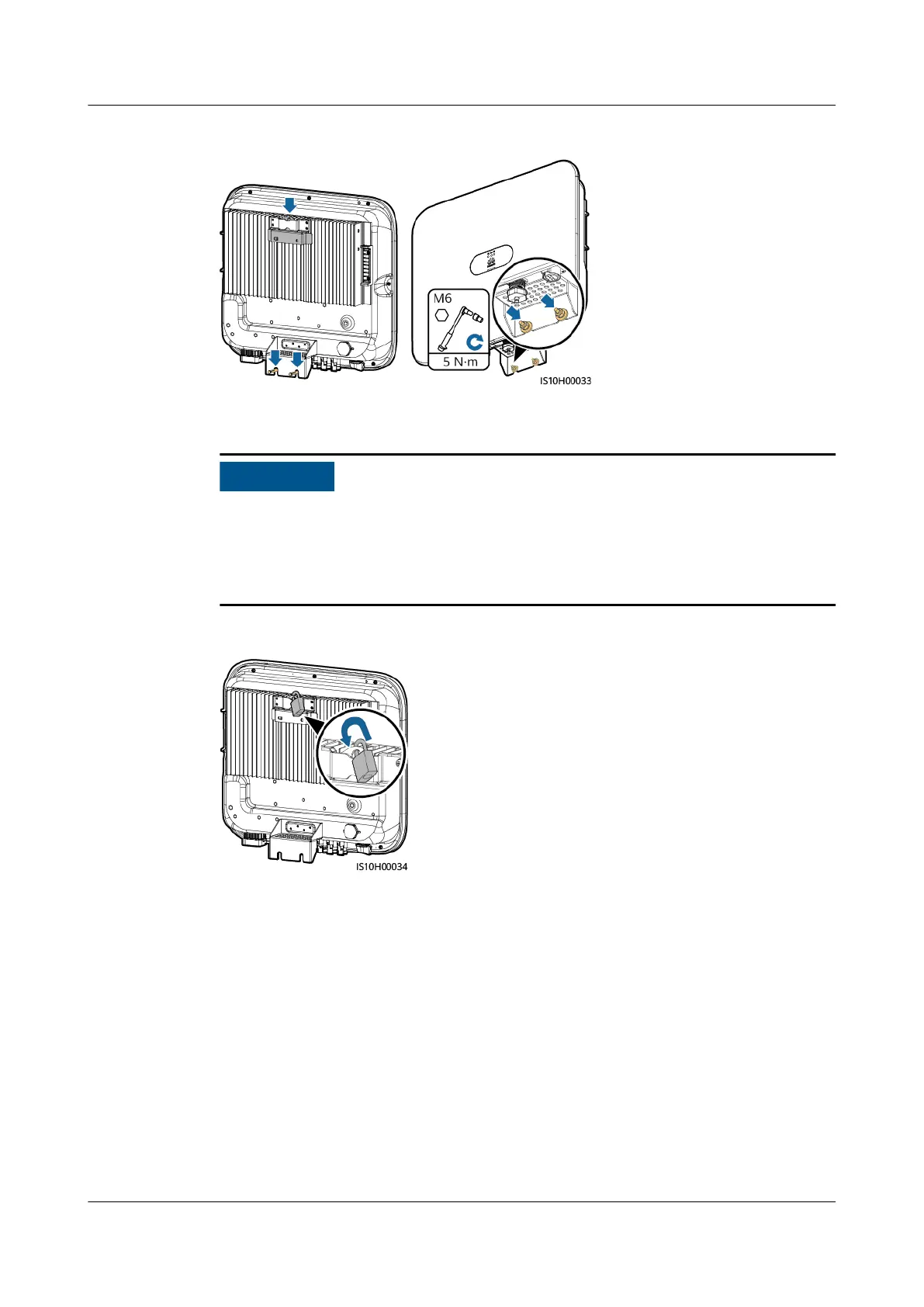

Figure 4-11 Installing a SUN2000
Step 6 (Optional) Install an anti-theft lock.
NO TICE
● Prepare an anti-theft lock suitable for the lock hole diameter (Ф8 mm) by
yourself. Ensure that the lock can be installed successfully.
● Outdoor waterproof lock is recommended.
● Keep the key to the anti-theft lock properly.
Figure 4-12 Installing an anti-theft lock
----End
4.5.2 Support-mounted Installation
Prerequisites
Prepare M6 stainless bolt assemblies (including at washers, spring washers, and
M6 bolts) with appropriate lengths as well as matched at washers and nuts
based on the support specications.
Procedure
Step 1 Determine the hole positions based on the marking-o template, and then mark
the hole positions using a marker.
SUN2000-(3KTL-10KTL)-M1 Series
User Manual 4 Installation
Issue 17 (2024-01-12) Copyright © Huawei Technologies Co., Ltd. 34

Huawei SUN2000-5KTL-M1 Specifications

General

Max. Efficiency	98.4%
Rated AC Output Power	5000 W
Max. Apparent Power	5500 VA
Max. DC Input Voltage	1100 V
Number of MPPTs	2
Operating Temperature Range	-25°C to +60°C
Start Voltage	200 V
European Efficiency	97.8%
Protection Degree	IP65
Start-up Voltage	200 V
Output Voltage Range	180 V - 280 V
Frequency Range	50 Hz / 60 Hz
Power Factor	0.8 leading ... 0.8 lagging
THD	<3%
Cooling Method	Natural Convection
Max. DC Power	7500 W
Rated AC Voltage	230 V
