Huawei SUN2000-5KTL-M1 User Manual

NO TICE
● To prevent dust inhalation or contact with eyes, wear safety goggles and a dust
mask when drilling holes.
● Clean up any dust in and around the holes using a vacuum cleaner and
measure the distance between holes. If the holes are inaccurately positioned,
drill holes again.
● Level the top of the expansion sleeve with the concrete wall after removing the
bolt, spring washer, and at washer. Otherwise, the mounting bracket will not
be securely installed on the concrete wall.
● Loosen the nuts, at washers, and spring washers of the two expansion bolts
below.

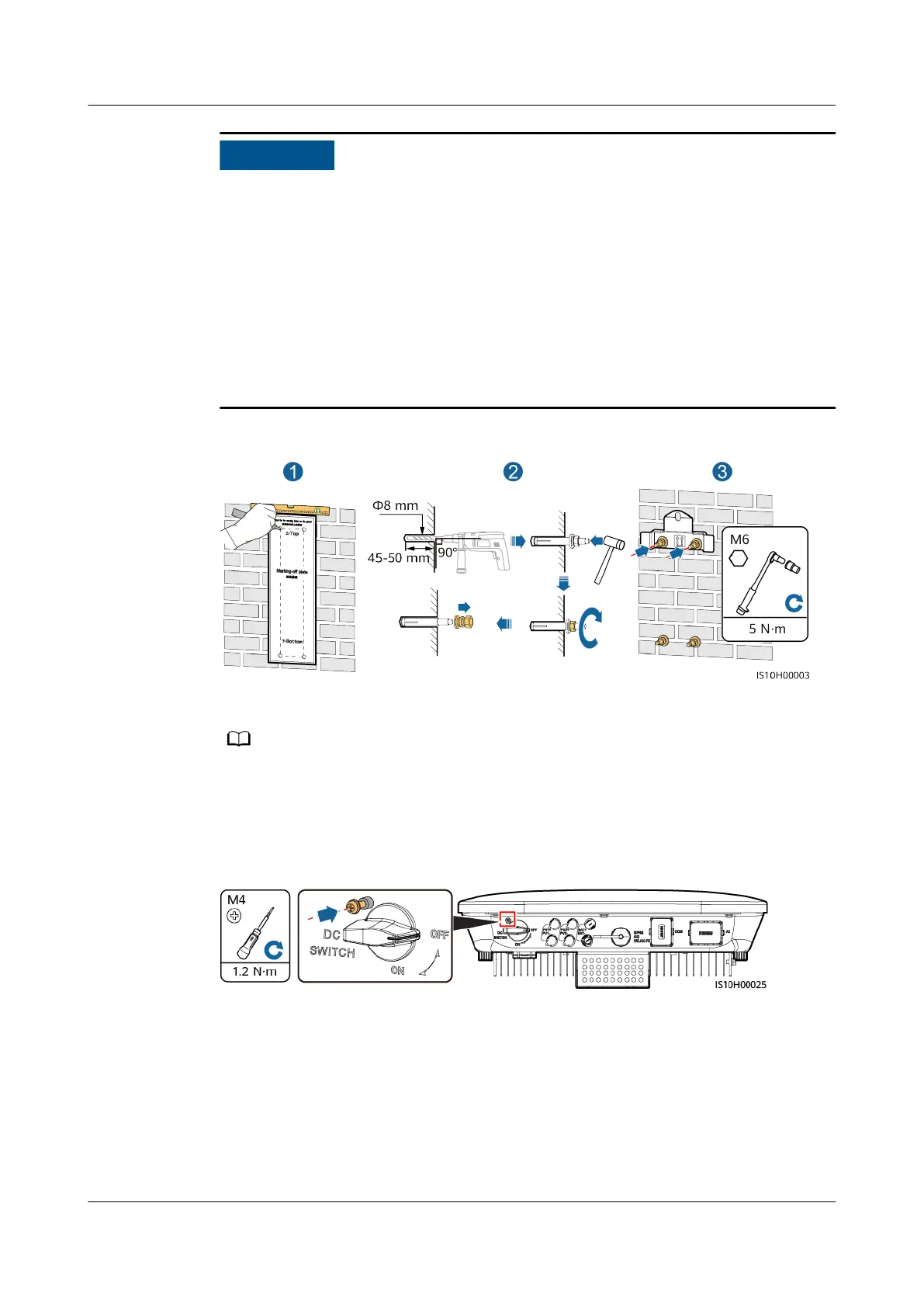

Figure 4-9 Installing the mounting bracket
Step 3 (Optional) Install the locking screw for the DC switch.
NO TE
● The locking screw for the DC switch is delivered with the SUN2000. According to the
Australian standard, the locking screw is used to secure the DC switch to prevent the
SUN2000 from being started by mistake.
● For the model used in Australia, perform this step based on the local standards.
Figure 4-10 Installing the locking screw for the DC switch
Step 4 Install the SUN2000 onto the mounting bracket.
Step 5 Tighten the nut.
SUN2000-(3KTL-10KTL)-M1 Series
User Manual 4 Installation
Issue 17 (2024-01-12) Copyright © Huawei Technologies Co., Ltd. 33

Huawei SUN2000-5KTL-M1 Specifications

General

Max. Efficiency	98.4%
Rated AC Output Power	5000 W
Max. Apparent Power	5500 VA
Max. DC Input Voltage	1100 V
Number of MPPTs	2
Operating Temperature Range	-25°C to +60°C
Start Voltage	200 V
European Efficiency	97.8%
Protection Degree	IP65
Start-up Voltage	200 V
Output Voltage Range	180 V - 280 V
Frequency Range	50 Hz / 60 Hz
Power Factor	0.8 leading ... 0.8 lagging
THD	<3%
Cooling Method	Natural Convection
Max. DC Power	7500 W
Rated AC Voltage	230 V
