Huawei SUN2000-5KTL-M1 User Manual

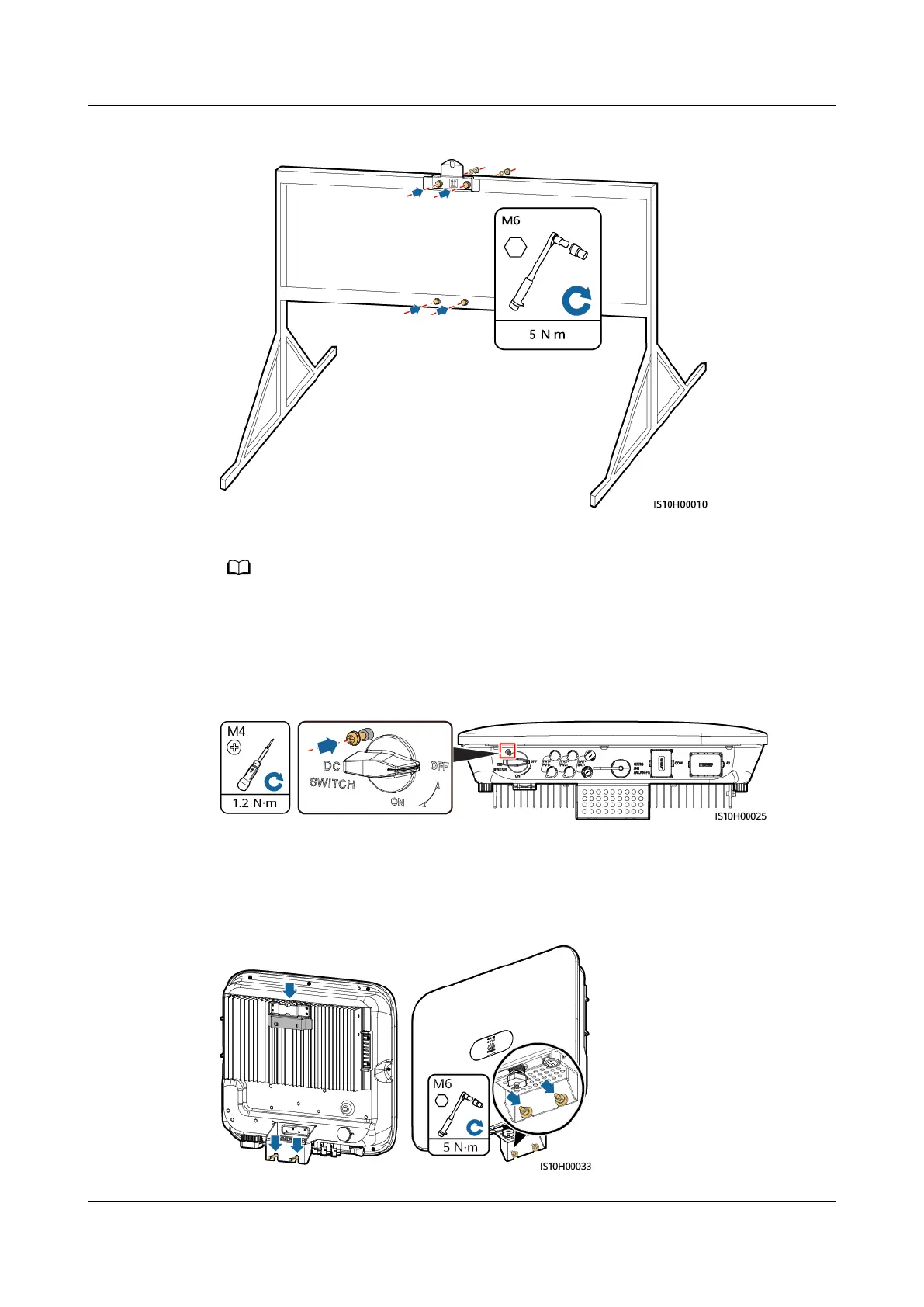

Figure 4-15 Securing the mounting bracket
Step 4 (Optional) Install the locking screw for the DC switch.
NO TE
● The locking screw for the DC switch is delivered with the SUN2000. According to the
Australian standard, the locking screw is used to secure the DC switch to prevent the
SUN2000 from being started by mistake.
● For the model used in Australia, perform this step based on the local standards.
Figure 4-16 Installing the locking screw for the DC switch
Step 5 Install the SUN2000 onto the mounting bracket.
Step 6 Tighten bolt assemblies.
Figure 4-17 Installing a SUN2000
SUN2000-(3KTL-10KTL)-M1 Series
User Manual 4 Installation
Issue 17 (2024-01-12) Copyright © Huawei Technologies Co., Ltd. 36

Huawei SUN2000-5KTL-M1 Specifications

General

Max. Efficiency	98.4%
Rated AC Output Power	5000 W
Max. Apparent Power	5500 VA
Max. DC Input Voltage	1100 V
Number of MPPTs	2
Operating Temperature Range	-25°C to +60°C
Start Voltage	200 V
European Efficiency	97.8%
Protection Degree	IP65
Start-up Voltage	200 V
Output Voltage Range	180 V - 280 V
Frequency Range	50 Hz / 60 Hz
Power Factor	0.8 leading ... 0.8 lagging
THD	<3%
Cooling Method	Natural Convection
Max. DC Power	7500 W
Rated AC Voltage	230 V
