Huawei SUN2000-6KTL-L1 User Manual

11
No
.
Label
Definition
Description
1
485
B1
RS485B, RS485
differential signal–
Solar inverters cascading
scenario: used for connecting
to the solar inverters.
2
485
A1
RS485A, RS485
differential signal+
3
485
B2
RS485B, RS485
differential signal–
Used for connecting to the
RS485 signal ports of the
battery and power meter.
When both battery and power
meter are configured, they
need be
crimped
to the 485B2
and 485A2 ports.
4
485
A2
RS485A, RS485
differential signal+
5
GND
GND of the enable
signal/12V/DI1/DI
2
Used for connecting to GND of
the enable signal/12V/DI1/DI2.
6
EN+
Enable
signal+/
12V+
Used for connecting to the
enable signal of the battery
and the 12V positive signal.
7
DI
1
Digital
input
signal
1
+
Used for connecting to the DI1
positive signal. It can be used
for connecting to the DRM0
scheduling signal or reserved
for the rapid shutdown signal.
8
DI
2
Digital
input
signal
2
+
Used for connecting to the DI2
positive signal. It can be
reserved for the feedback
signal of the Backup device.

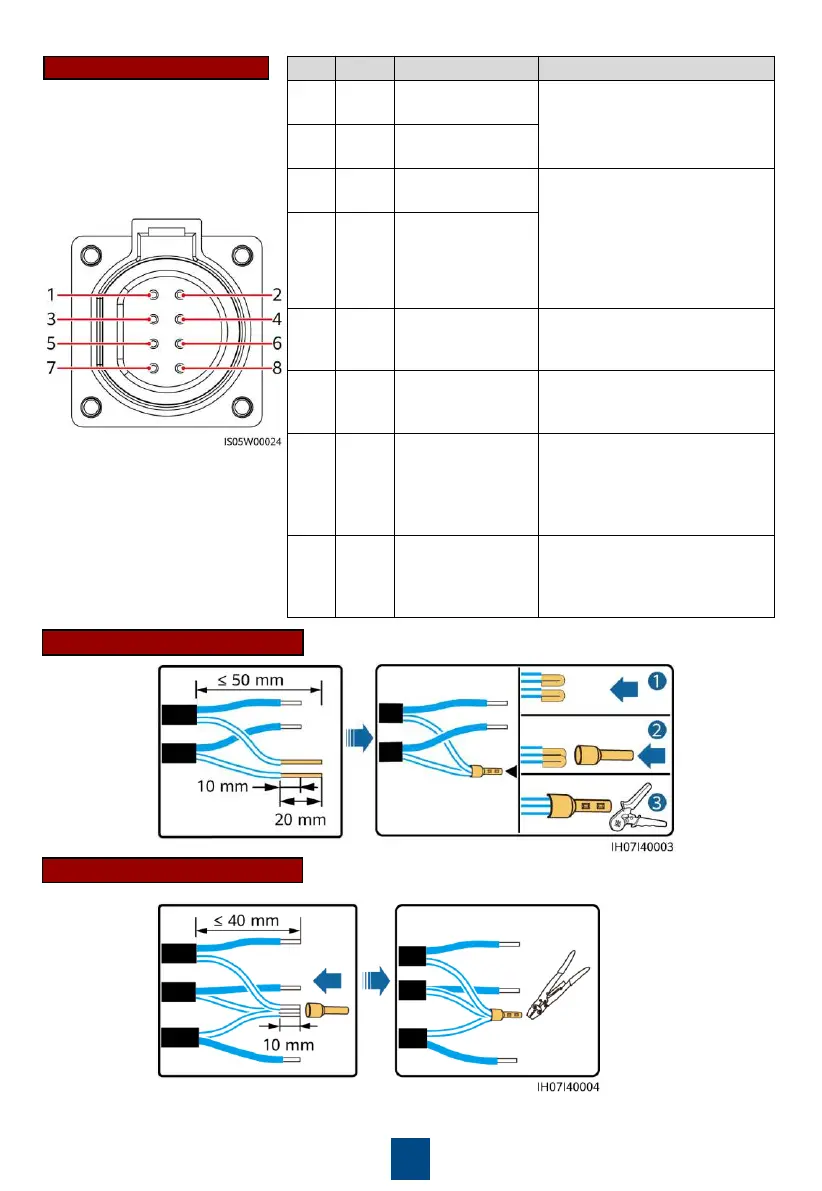

COM Port Pin Definitions
Crimping Two Signal Cables
Crimping Three Signal Cables

Huawei SUN2000-6KTL-L1 Specifications

General

Safety	EN/IEC 62109-1, EN/IEC 62109-2
Efficiency	98.4 %
Product type	-
Maximum power	9000 W
Output current	27.3 A
DC input voltage	350 - 450 V
Number of phases	1
Output frequency	50/60 Hz
Starting voltage	100 V
Output power capacity (max)	6 kVA
Input operation voltage (max)	560 V
Input operation voltage (min)	90 V
Output operation voltage (max)	240 V
Output operation voltage (min)	220 V
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %
Wi-Fi	Yes
Product color	White
Power protection features	Over current, Over voltage, Overheating, Reverse polarity, Short circuit
International Protection (IP) code	IP65

Weight and Dimensions

Width	365 mm
Height	156 mm
Weight	12000 g
