Huawei SUN2000-6KTL-L1 User Manual

10

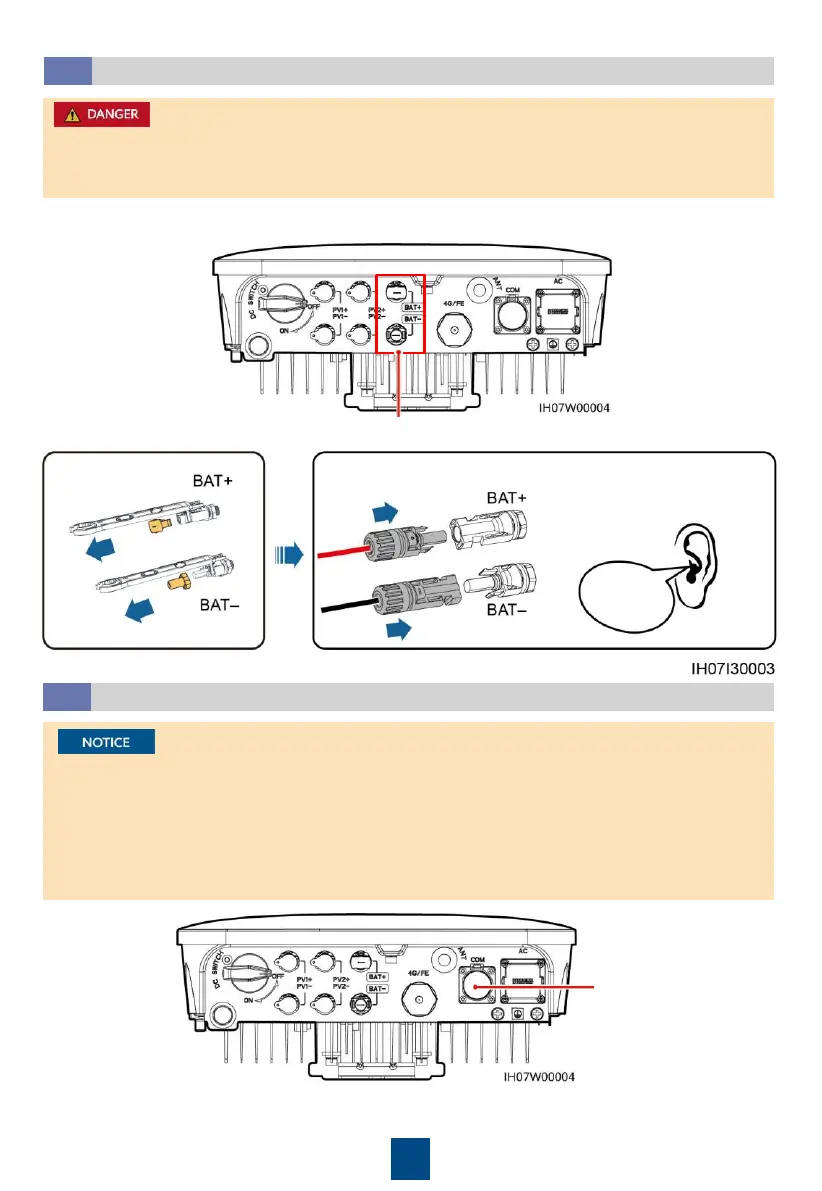

(Optional) Installing Battery Cables
3.6
Properly keep the
watertight caps.
Pull the battery cable
back to ensure that it is
connected securely.
Battery terminals (BAT+/BAT–)
Assemble the positive and negative connectors by following the instructions in section 3.5
"Installing DC Input Power Cables."
•
Use insulated tools when connecting cables.
•
Connect battery cables with correct polarity. If battery cables are reversely connected, the
solar inverter may be damaged.
Click
(Optional) Installing Signal Cables
3.7
•
When laying out a signal cable, separate it from power cables to avoid strong signal
interference.
•
Ensure that the protective layer of the cable is inside the connector, that excess core wires
are cut off from the protection layer, that the exposed core wire is totally inserted into the
cable hole, and that the cable is connected securely.
•
Block the unused cable hole using a cap and tighten the cable gland.
•
If more than one signal cables are required, ensure that they have the same outer diameter.
COM port (COM)

Huawei SUN2000-6KTL-L1 Specifications

General

Safety	EN/IEC 62109-1, EN/IEC 62109-2
Efficiency	98.4 %
Product type	-
Maximum power	9000 W
Output current	27.3 A
DC input voltage	350 - 450 V
Number of phases	1
Output frequency	50/60 Hz
Starting voltage	100 V
Output power capacity (max)	6 kVA
Input operation voltage (max)	560 V
Input operation voltage (min)	90 V
Output operation voltage (max)	240 V
Output operation voltage (min)	220 V
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %
Wi-Fi	Yes
Product color	White
Power protection features	Over current, Over voltage, Overheating, Reverse polarity, Short circuit
International Protection (IP) code	IP65

Weight and Dimensions

Width	365 mm
Height	156 mm
Weight	12000 g
