2.5.1 Circuit Diagram
The solar inverter receives inputs from 20 PV strings. The inputs are grouped into
10 MPPT circuits inside the solar inverter to track the maximum power point of
the PV strings. The DC power is then converted into three-phase AC power
through an inverter circuit. Surge protection is supported on both the DC and AC
sides.

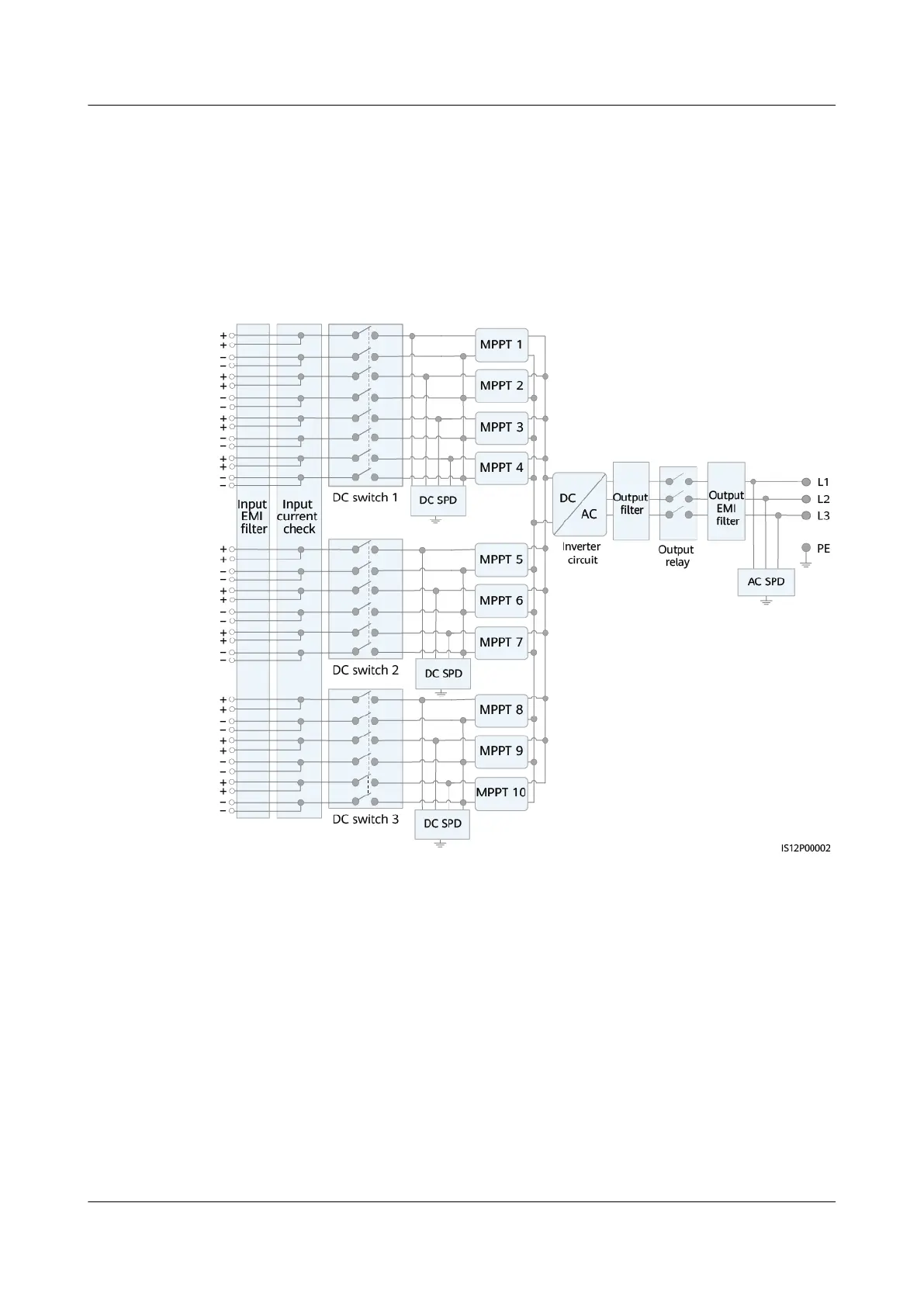

Figure 2-13 Schematic diagram of a 3-pin model
SUN2000-(75KTL, 100KTL, 110KTL, 125KTL) Series
User Manual 2 Overview
Issue 15 (2023-01-31) Copyright © Huawei Technologies Co., Ltd. 25
