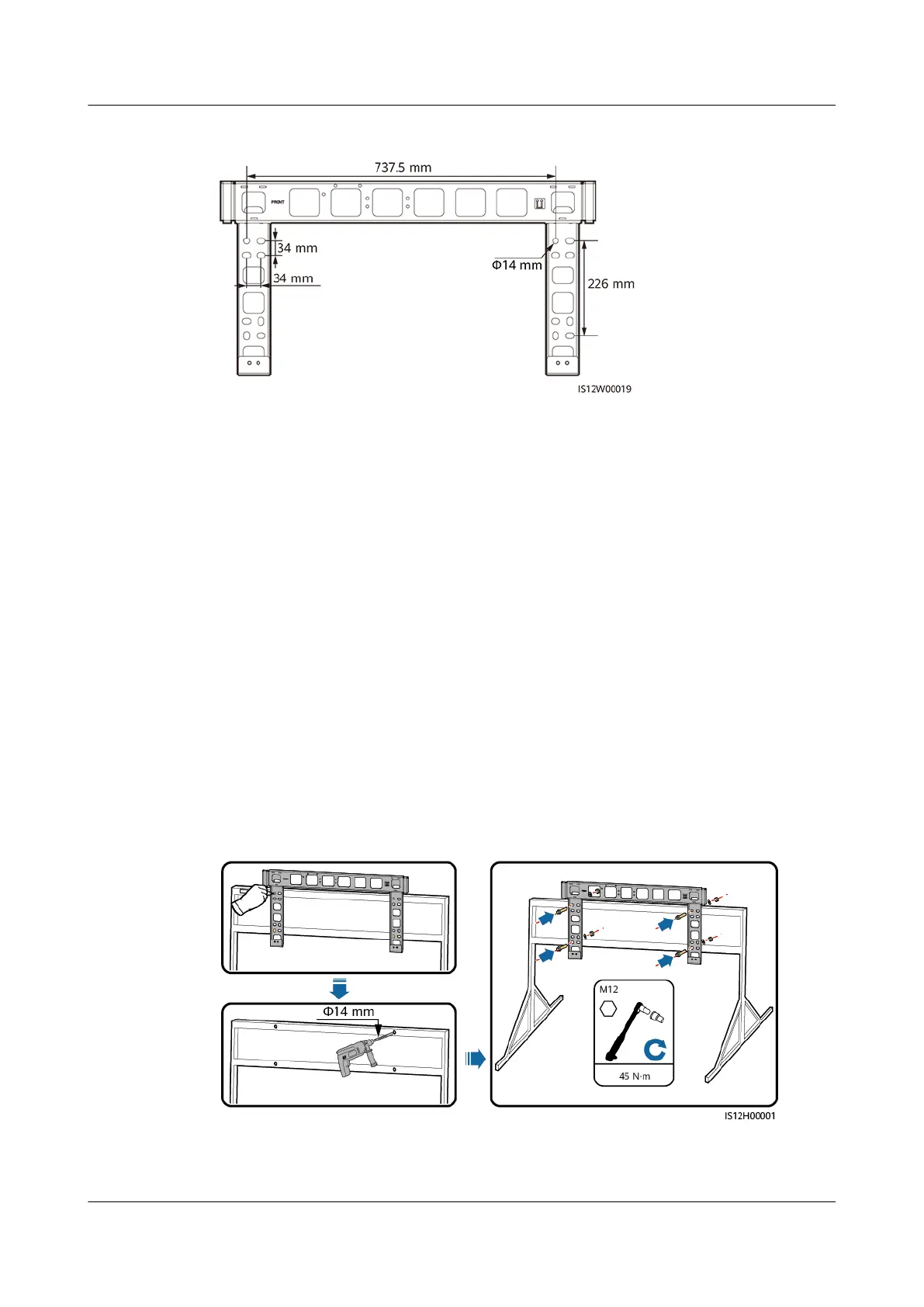

Figure 4-8 Hole dimensions
4.4.1 Support-mounted Installation
Prerequisites
M12x40 bolt assemblies are supplied with the mounting bracket. If the bolt length
does not meet the installation requirements, prepare M12 bolt assemblies by
yourself and use them together with the supplied M12 nuts.
Procedure
Step 1 Determine the positions for drilling holes using the mounting bracket. Level the
positions of mounting holes using a bubble or digital level, and mark the positions
with a marker.
Step 2 Drill holes using a hammer drill. It is recommended that anti-rust measures be
taken on the positions for drilling holes.
Step 3 Secure the mounting bracket.
Figure 4-9 Installing the mounting bracket
----End
SUN2000-(75KTL, 100KTL, 110KTL, 125KTL) Series
User Manual 4 Installation
Issue 15 (2023-01-31) Copyright © Huawei Technologies Co., Ltd. 38
