The MBUS communication is applicable to medium-voltage grid connection
scenarios and non-low-voltage public grid connection scenarios (industrial
environment).
In the networking diagram, indicates the power cable, indicates the power ow
direction, and and indicate the signal ow.

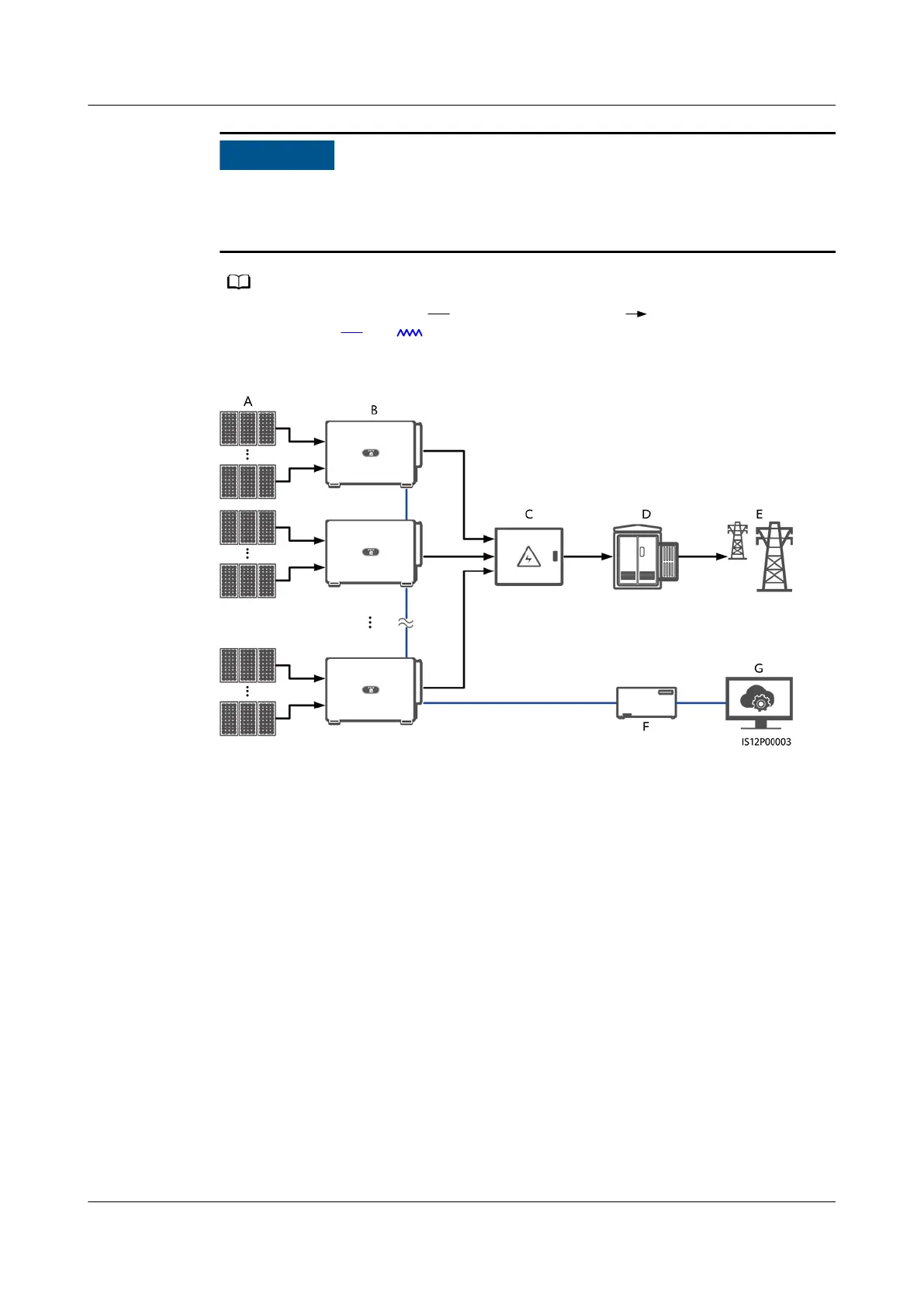

Figure 5-1 RS485 networking (SmartLogger)
(A) PV string
(B) SUN2000 (C) AC combiner box
(D) Transformer station (E) Power grid (F) SmartLogger
(G) Management system - -
