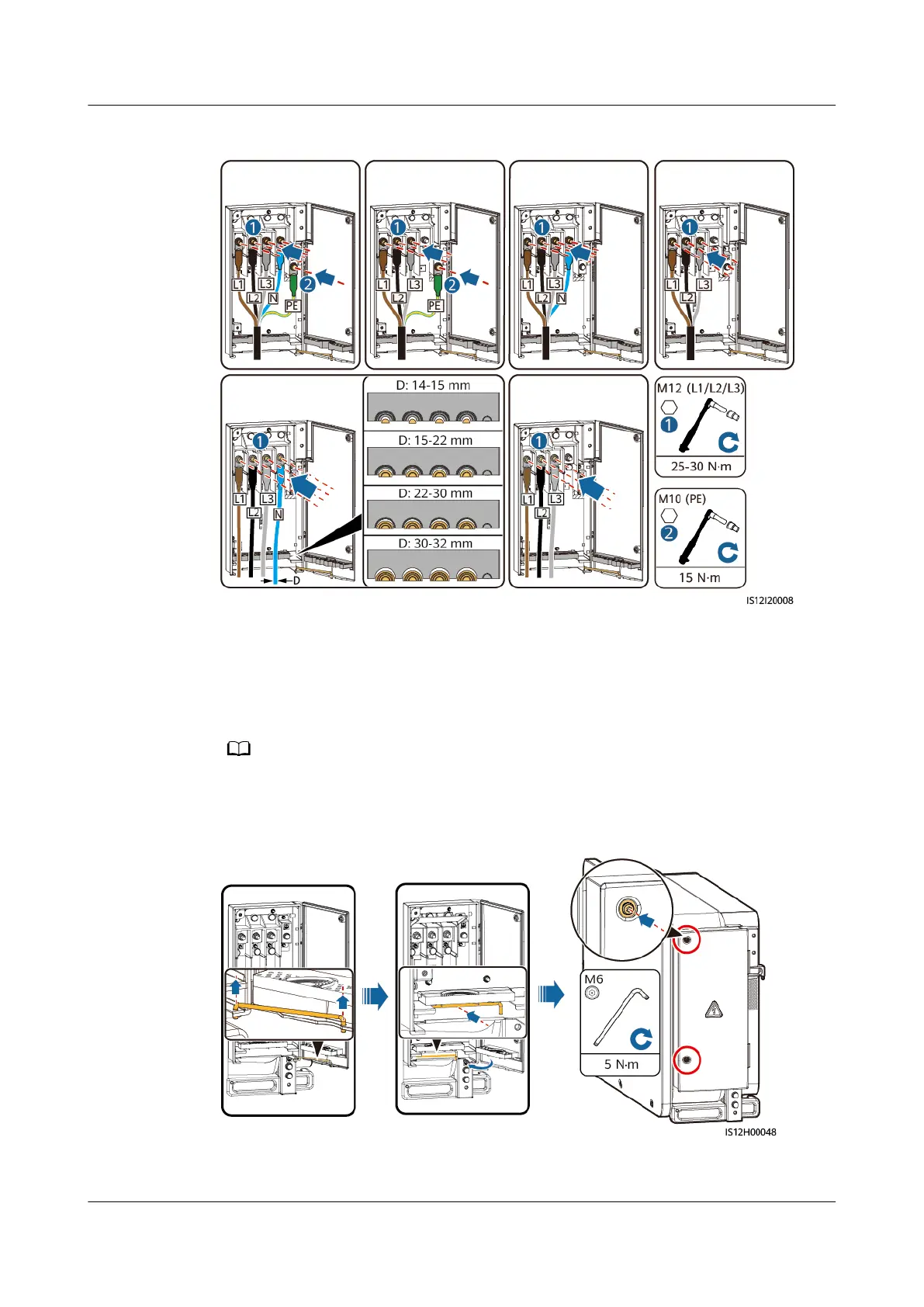

Figure 5-19 4-pin model (75KTL/100KTL/110KTL) cable connections
(A) Five-core cable (B) Four-core cable (including
the PE cable)
(C) Four-core cable (including
the neutral wire)
(D) Three-core cable (E) Single-core cable (including
the neutral wire)
(F) Single-core cable
(excluding the neutral wire)
The cable colors shown in gures are for reference only. Select an appropriate cable
according to the local standards.
Figure 5-20 Closing the Maintenance Compartment Door
----End
SUN2000-(75KTL, 100KTL, 110KTL, 125KTL) Series
User Manual 5 Electrical Connections
Issue 15 (2023-01-31) Copyright © Huawei Technologies Co., Ltd. 65
