5.7.4 Connecting RS485 Communications Cables (Power Meter

and Battery)

Cable Connections

The following gure shows the cable connections between the inverter and the

DDSU666-H power meter.

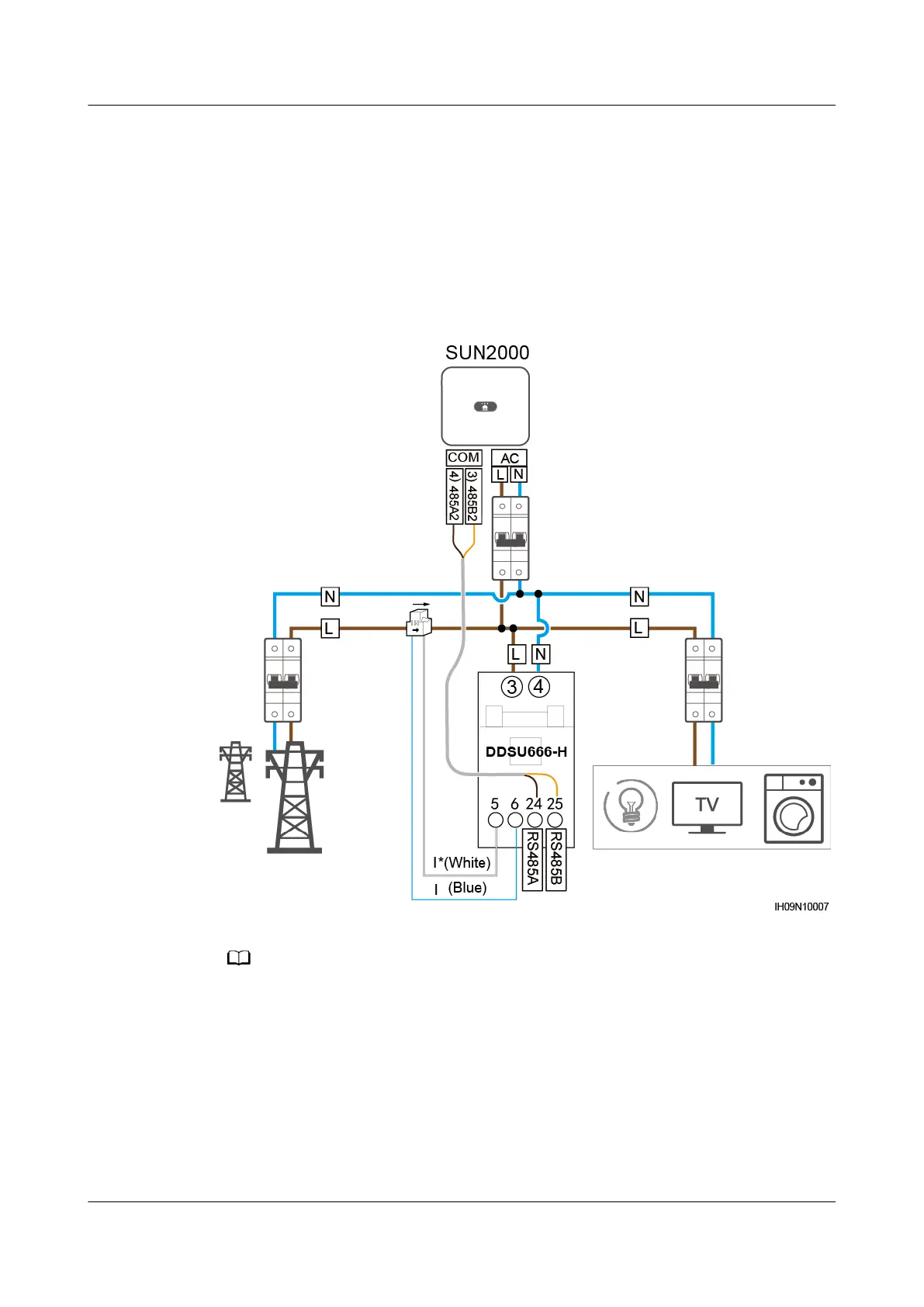

Figure 5-28 Connecting cables to the DDSU666-H power meter

NO TE

● The power meter and the Smart Dongle must be connected to the same inverter.

● Retain the default baud rates for the DDSU666-H and YDS70-C16 power meters. If they

are changed, the power meters may go oine, generate alarms, or aect the inverter

output power.

● The preceding networking uses DDSU666-H as an example. Cable connections for other

meter models may vary.

SUN2000-(8K, 10K)-LC0 Series

User Manual 5 Electrical Connections
