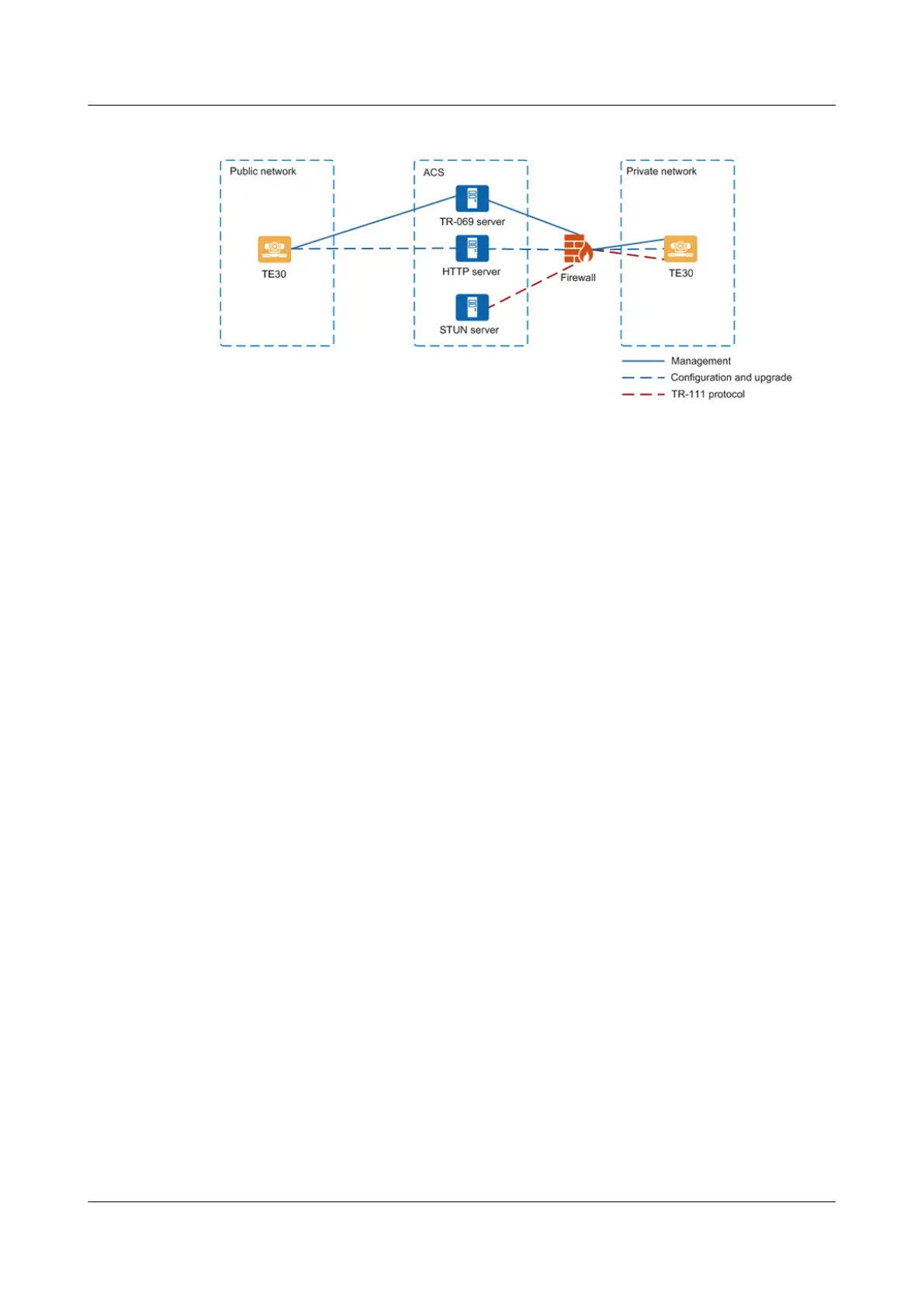

Figure 3-5 Interconnecting with the ACS
On this network:
l The endpoint communicates with the TR-069 server through the TR-069 protocol.
l The HTTP server is used to upload and download configuration files and download
upgrade files.
l The Simple Traversal of UDP through NAT (STUN) server implements traversal
between private and public networks and delivers management over all devices on both
networks.
l The endpoint can be deployed on a public or private network, while the ACS must be
deployed on a public network.
– If the endpoint is deployed on a public network, it can be managed by the ACS
through the TR-069 protocol.
– If the endpoint is deployed on a private network, the STUN server needs to be
deployed for traversal between private and public networks. After the deployment,
the TR-111 protocol, an extension of the TR-069 protocol, will be available for the
ACS to manage the endpoint.
TE30 Videoconferencing Endpoint
Product Overview
3 Application Scenarios
Issue 03 (2018-06-30) Copyright © Huawei Technologies Co., Ltd. 9
