TP48120A-HD15A1, TP48120A-HD15A2,
TP48200A-HD15A1, and TP48200A-HD15A2 Telecom
Power
User Manual
4 Maintenance
Copyright © Huawei Technologies Co., Ltd.
52

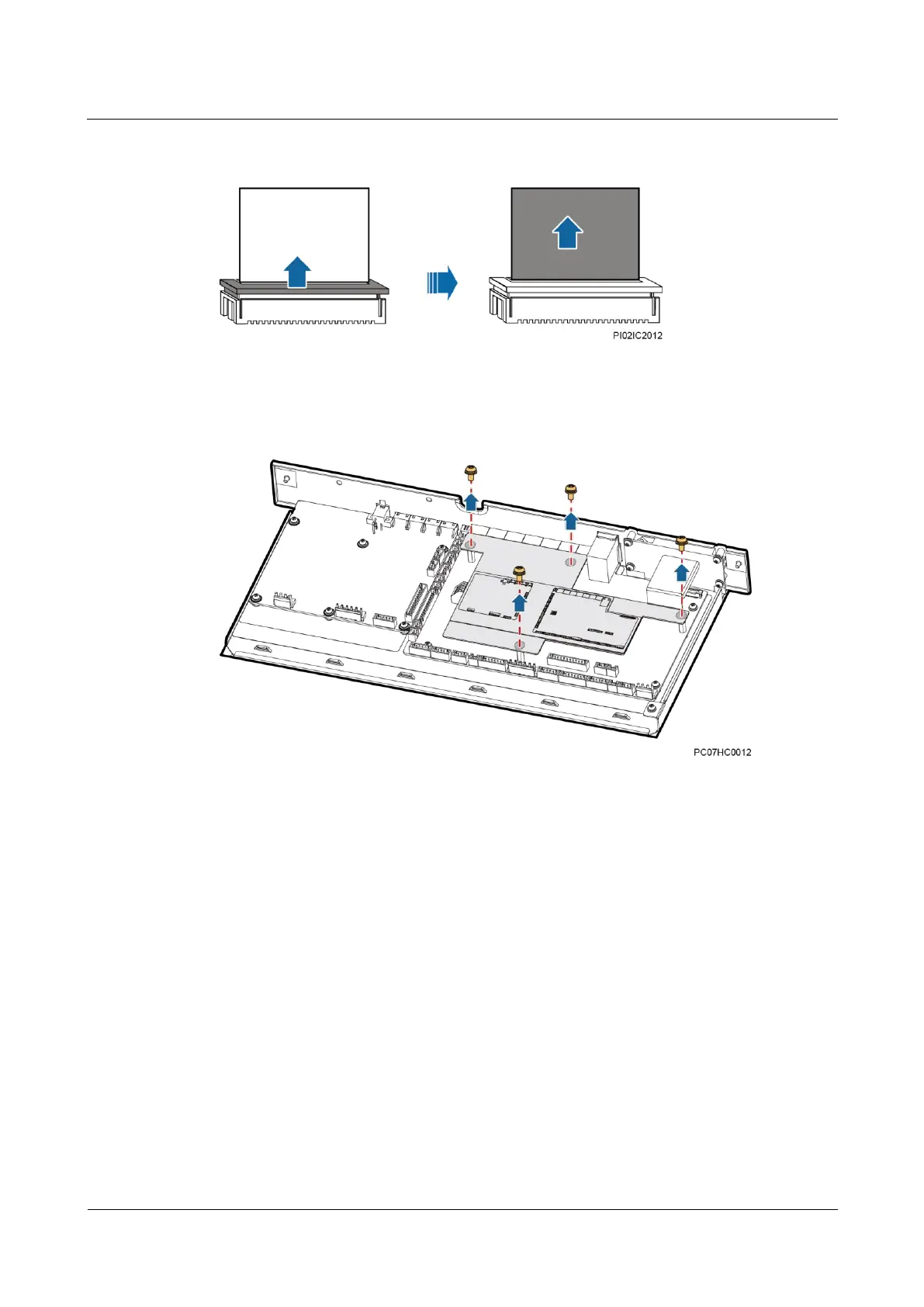

Figure 4-4 Disconnecting an LCD flat cable
Step 8 Unscrew and remove the cover on the main control board, as shown in Figure 4-5.
Figure 4-5 Removing the Cover from the Main Control Board
Step 9 Unscrew and remove the main control board, as shown in Figure 4-6.
