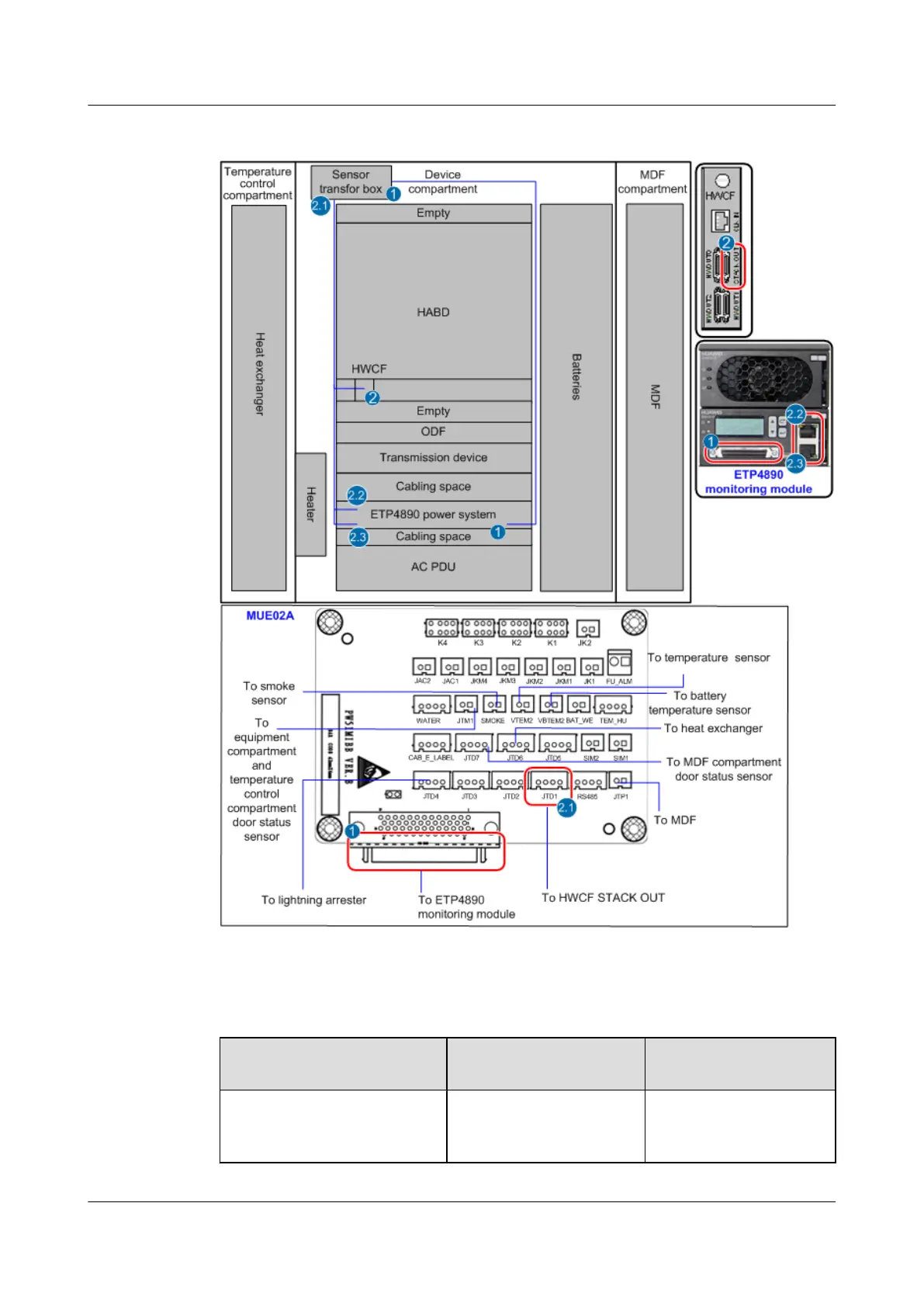

Figure 8-7 Connections of environment monitoring cables in the F01D200 cabinet
Table 8-10 Connections of environment monitoring cables in the F01D200 cabinet
Cable
One End Connects to... The Other End
Connects to...
Monitoring cable (1): J1 port of the sensor
transfer box
(1): DB50 port on the
monitoring unit of the
ETP4890
UA5000 Universal Access Unit
Environment Monitoring 8 ETP4890 Monitoring Solution
